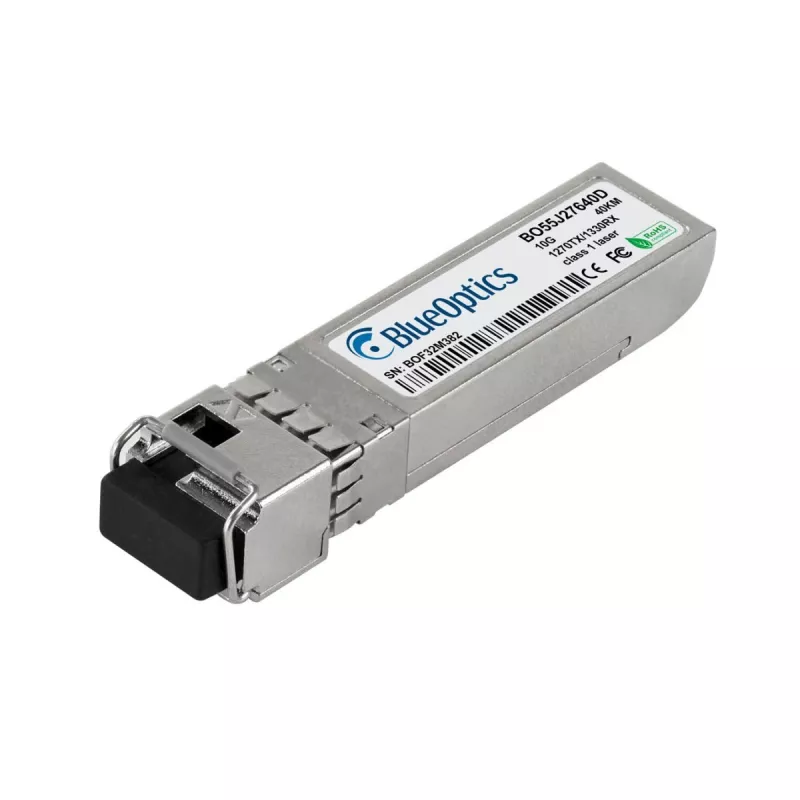

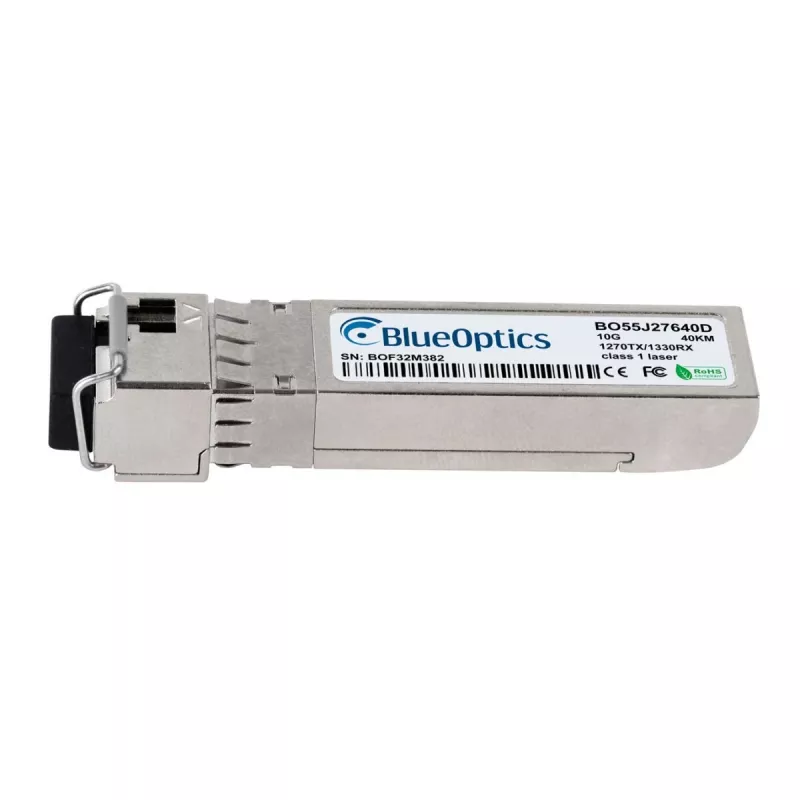

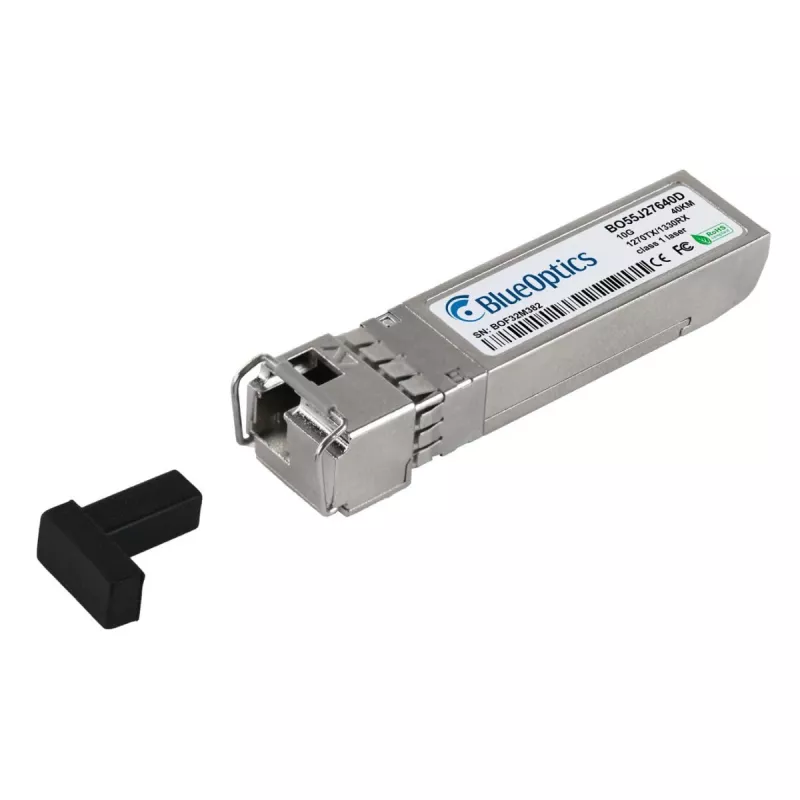

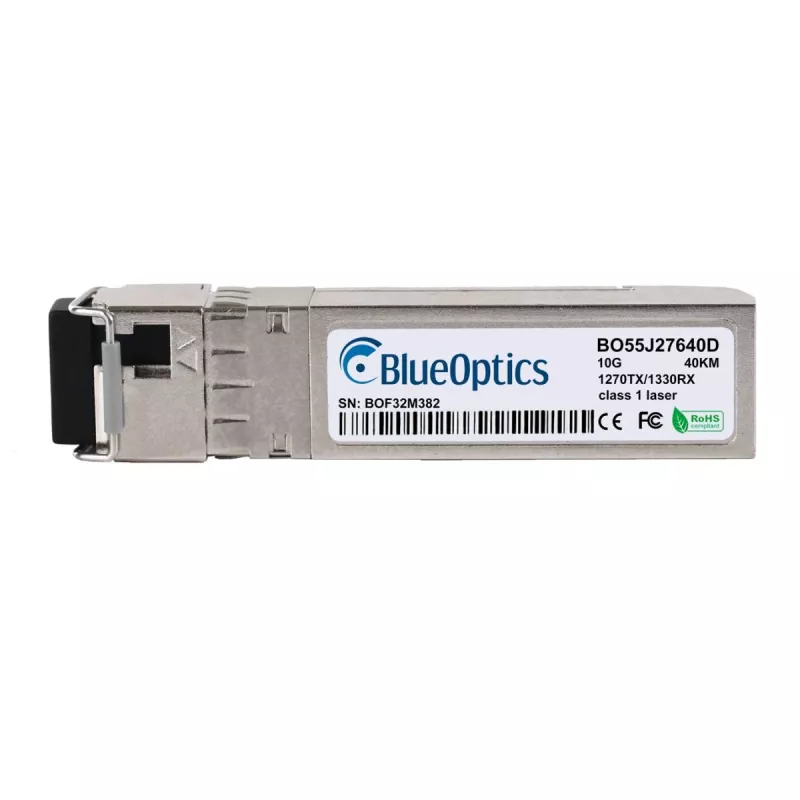

Transceptor BlueOptics SFP+ BO55J27640D 10GBASE-BX-U 40km para Synology SFP-10G-BX-U-40KM

The BlueOptics SFP+ BO55J27640D is a high-performance, cost-effective transceiver designed to be fully compatible with Synology SFP-10G-BX-U-40KM equipment. This SFP+ module supports 10 Gigabit Ethernet over single-mode fiber at distances up to 40 km, utilizing a single fiber for bi-directional communication. It is ideal for extending network reach in data centers, enterprise networks, and service provider environments.

Advantages

This transceiver offers reliable 10GbE connectivity over long distances, reducing fiber infrastructure costs by using a single fiber. It supports Digital Diagnostic Monitoring (DDM) for real-time performance monitoring and is hot-pluggable for easy installation and maintenance. The BlueOptics BO55J27640D is MSA compliant, ensuring interoperability with a wide range of networking equipment.

Suitable for

• 10 Gigabit Ethernet networks requiring long-distance single-mode fiber connections
• Data center interconnects and campus networks
• Service provider access and aggregation networks
• Upgrading existing fiber infrastructure to 10GbE

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gigabit Ethernet (10GbE)
• Standard: 10GBASE-BX-U
• Wavelength (Transmit): 1330 nm
• Wavelength (Receive): 1270 nm
• Connector Type: LC Simplex
• Fiber Type: Single-Mode Fiber (SMF)
• Max Distance: 40 km
• DDM/DOM Support: Yes
• Compatibility: Synology SFP-10G-BX-U-40KM compatible
• Hot-Pluggable: Yes
• Compliance: MSA Compliant
• Laser Type: DFB Laser
• Receiver Type: APD Receiver
• Power Consumption: < 1.5 W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Application: 10 Gigabit Ethernet, Fiber Channel
• Media Interface: Single-Mode Fiber (SMF)
• Bi-directional: Yes (Single Fiber Operation)

Recommendations

For optimal performance, ensure your network equipment supports SFP+ modules and 10GBASE-BX-U standard. This transceiver is designed for single-mode fiber with LC simplex connectors. Verify the fiber type and distance requirements before installation.
