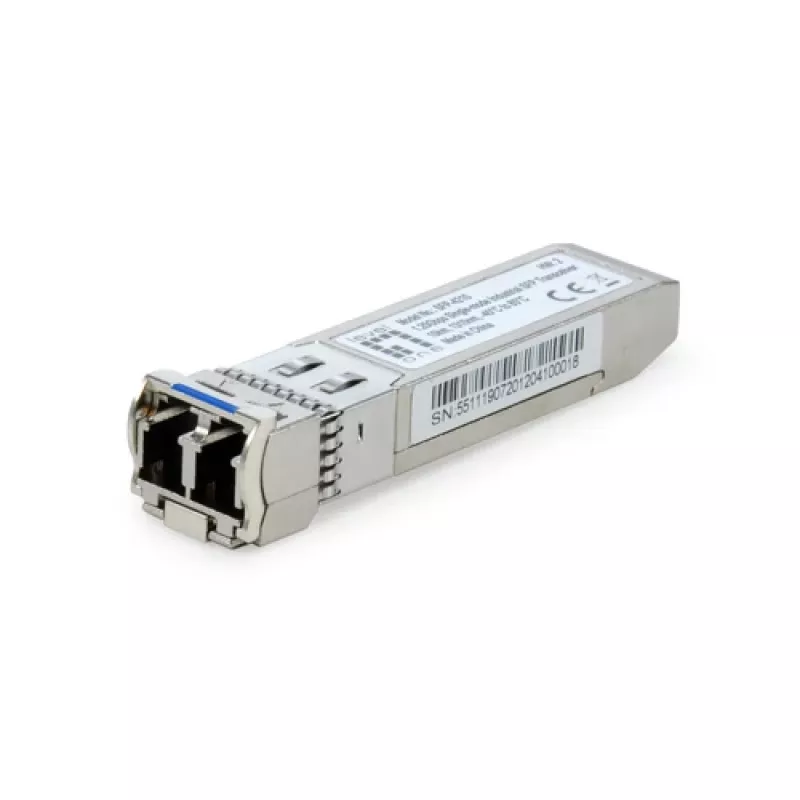

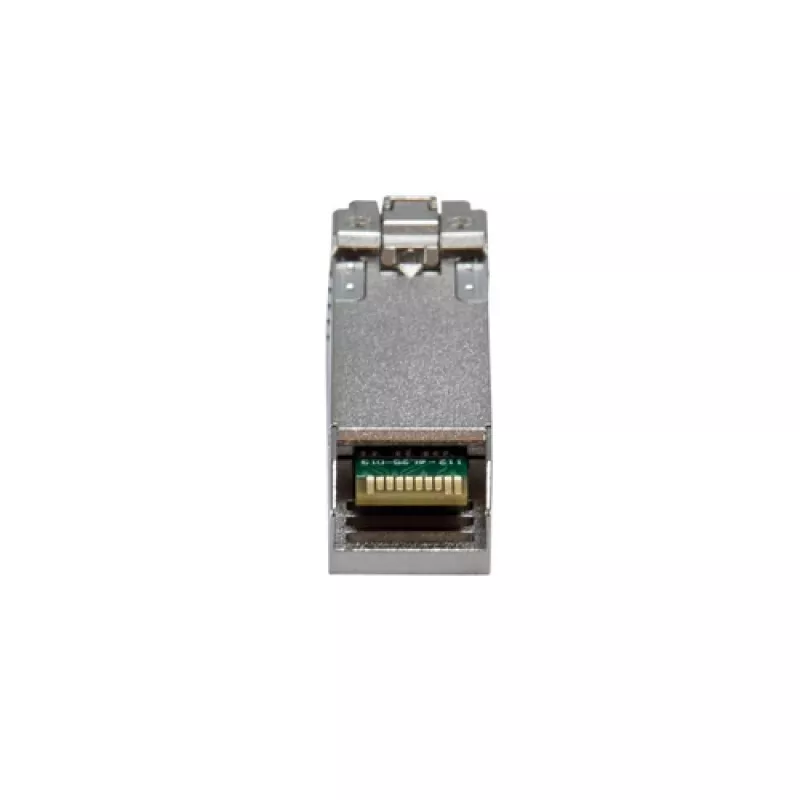

Transceptor SFP LevelOne 1.25Gbps monomodo dúplex LC 1310nm 20km

The LevelOne SFP Transceiver is a high-performance optical module engineered for Gigabit Ethernet links over single-mode fiber. With a 1310nm laser, it supports distances up to 20km, making it ideal for building-to-building campus connections and metro-area networks. The Duplex LC connector ensures a secure and standard interface, while hot-swappable design allows for quick deployment and replacement without downtime.

Highlights

• 1.25 Gbps data rate for Gigabit Ethernet
• Single-mode fiber (SMF) with 1310nm wavelength
• Transmission distance up to 20 km
• Duplex LC connector, full-duplex operation
• Hot-swappable SFP form factor
• Digital Diagnostic Monitoring (DDM) for real-time performance tracking
• Compliant with IEEE 802.3z and SFP MSA
• Operating temperature range: 0°C to 70°C

In daily use

This transceiver is a reliable choice for network administrators looking to expand fiber backbone links. The digital diagnostics monitoring (DDM) interface enables proactive maintenance by tracking optical power and temperature, reducing the risk of network failures. Its compact SFP design fits standard switch and router ports, and the low power consumption of 3.3V ensures efficient operation. Whether deployed in an enterprise wiring closet or an industrial facility, the LevelOne SFP provides consistent, stable connectivity.

Full specifications

• Brand: LevelOne
• Model: 539750
• MPN: 539750
• EAN: 4015867240342
• Category: SFP Transceiver
• Interface type: Gigabit Ethernet
• Maximum data transfer rate: 1.25 Gbps
• Fiber optic connector: Duplex LC
• SFP transceiver type: SFP
• Single-mode fiber (SMF) supported: Yes
• Maximum transfer distance: 20 km
• Wavelength: 1310 nm
• Duplex system: Full-duplex
• Hot-Plug support: Yes
• Networking standards: IEEE 802.3z, SFP MSA
• Operating temperature (T-T): 0 - 70°C
• Storage temperature (T-T): -40 - 85°C

Final note

For high-speed and long-distance fiber connectivity, the LevelOne SFP Transceiver delivers dependable performance in a compact and compatible package. Upgrade your network backbone with this cost-effective optical solution.
