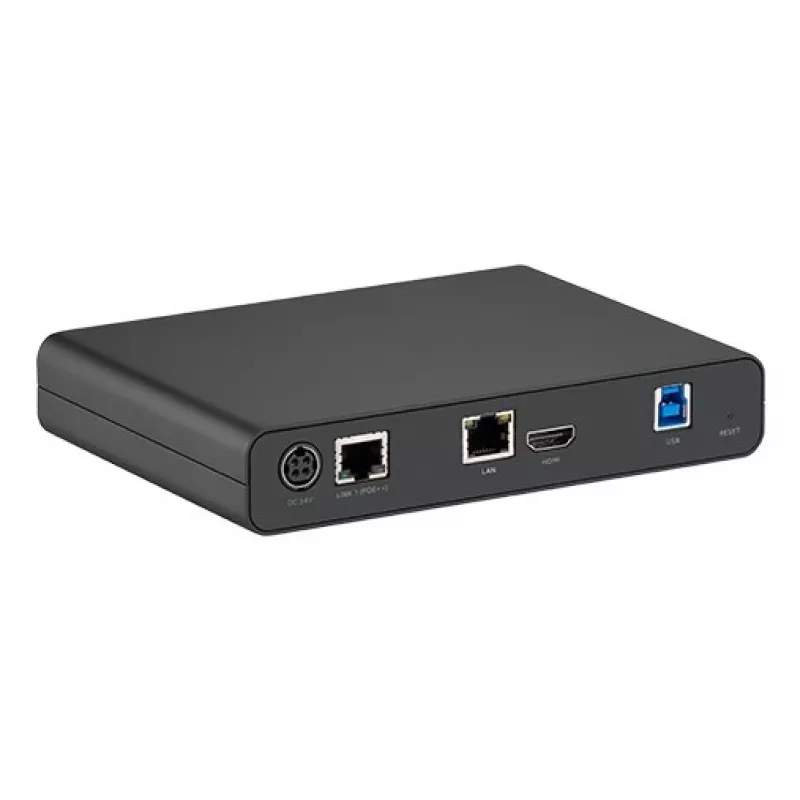

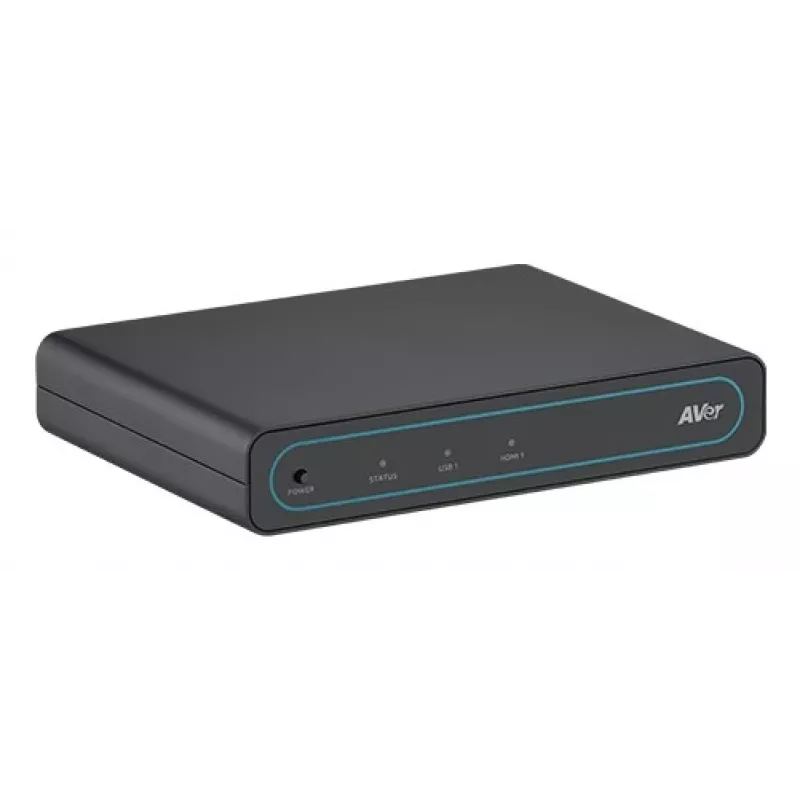

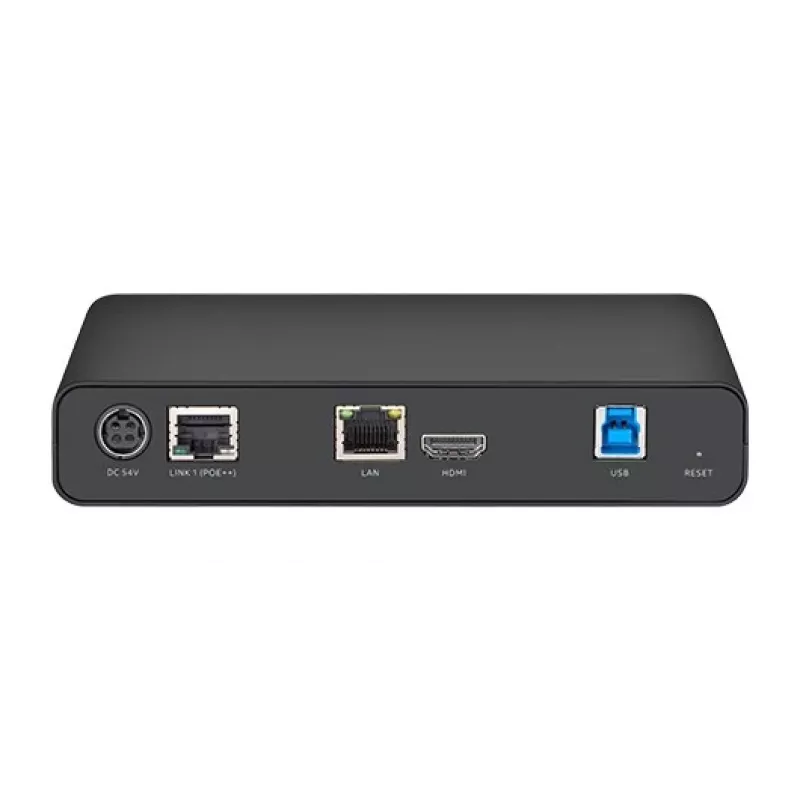

Transmisor AV AVer UE1 negro Cat5e Cat6 Cat7 100 m

The AVer UE1 Black Cat5e Cat6 Cat7 100m is a wired AV transmitter and USB extender designed to transmit USB 3.0 and AV signals over standard Cat5e, Cat6 or Cat7 cabling. It supports long-distance transmission up to 100 metres with a high data throughput of up to 5000 Mbit/s, enabling remote placement of PTZ cameras and other high-bandwidth USB devices while preserving video quality. The unit accepts AC and DC power sources and uses an operating voltage of 54 V in a compact housing measuring 164 mm × 118 mm × 32.5 mm.

Advantages

The UE1 provides a reliable method to extend USB 3.0 connections without the need for dedicated fibre or proprietary cabling, using existing Ethernet infrastructure for a cost-effective installation. Its support for high data rates and extended distances allows 4K-capable PTZ cameras to be installed farther from control equipment while maintaining low-latency, high-quality video transmission. The compact form factor and plug-and-play operation make setup straightforward and minimize space requirements in equipment racks or enclosures.

Suitable for

• Extending PTZ camera connections in conference rooms, lecture halls, and auditoriums
• Remote USB 3.0 device extension for video capture and streaming systems
• Installations that reuse existing Cat5e/Cat6/Cat7 cabling infrastructure
• AV systems that require mid- to long-range wired connections up to 100 metres

Key specifications

• Supported cable types: Cat5e, Cat6, Cat7
• Maximum transfer distance: 100 m
• Data rate: up to 5000 Mbit/s
• Signal type: USB 3.0 and AV over Ethernet
• Power input: AC and DC support
• Operating voltage: 54 V
• Power consumption rating: up to 65 W (AC/DC)
• Dimensions (W×D×H): 164 × 118 × 32.5 mm
• Colour: black

How to use

Connect the UE1 transmitter to your USB 3.0 device or PTZ camera and run a compatible Cat5e/ Cat6/ Cat7 cable to the corresponding receiver unit or network endpoint. Power the unit using the provided AC or DC power source, ensuring the operating voltage matches the device requirements. Once connected, the system operates in plug-and-play mode; no additional drivers are required for standard USB 3.0 devices. Verify cable quality and terminations to ensure optimal signal integrity for long-distance transmission.

Recommendations

For best performance use high-quality, shielded Cat6 or Cat7 cables for runs approaching the 100 m limit, and avoid routing cables near high-power electrical lines to reduce interference. When deploying PTZ cameras, confirm power delivery method and PoE++ compatibility if the camera requires in-line power. Periodically check connectors and cable runs for wear and secure connections to maintain reliable 4K video transmission.
