Triton armario de pared 10" 6U 300 mm de profundidad, puerta de cristal, negro RAL 9005 RBA-06-AS3-BAX-C1

With a 20 kg load capacity and a compact 6U footprint, this 10-inch wall-mount cabinet is built for small network installations where space and reliability matter.

Overview

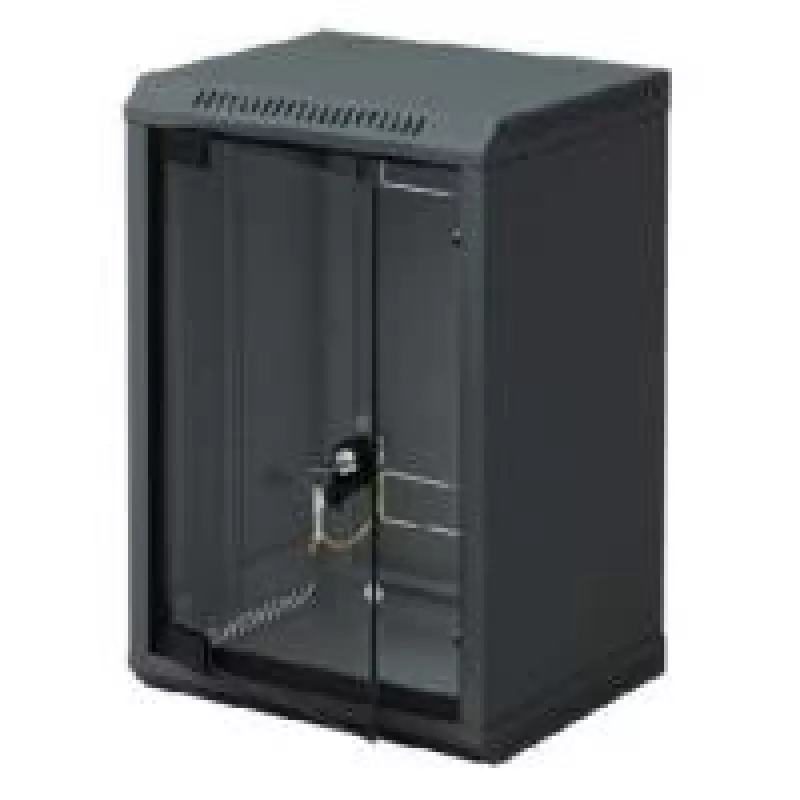

The Triton RBA-06-AS3-BAX-C1 is a single-section wall-mount cabinet for 10-inch equipment. It provides 6 rack units (U) with a usable depth of 300 mm. The cabinet is finished in black RAL 9005 and has a lockable glass door, making it suitable for SOHO, home networks, and small office networks.

What stands out

• 6U capacity for 10-inch rack equipment
• 300 mm internal depth for standard small devices
• Lockable glass door with cylinder lock and two keys
• Welded steel frame with powder-coated finish
• Top and bottom cable entry for flexible installation
• Passive ventilation for heat dissipation
• Adjustable vertical mounting rails

Technical details

• Rack units: 6U
• Rack standard: 10-inch
• External dimensions (W x H x D): 310 x 320 x 300 mm
• Material: Steel
• Colour: Black (RAL 9005)
• Maximum load capacity: 20 kg
• Mounting type: Wall-mounted
• Lock type: Cylinder lock with 2 keys
• Cable entry: Top and bottom
• Side panels: Fixed
• Ventilation: Passive
• Application: SOHO, home networks, small office networks
• Construction: Welded frame
• Finish: Powder coated
• Adjustable mounting rails: 2x 10" vertical

Our verdict

A straightforward wall-mount cabinet for small 10-inch installations, offering a lockable glass door and solid steel construction in a compact 6U form factor.
