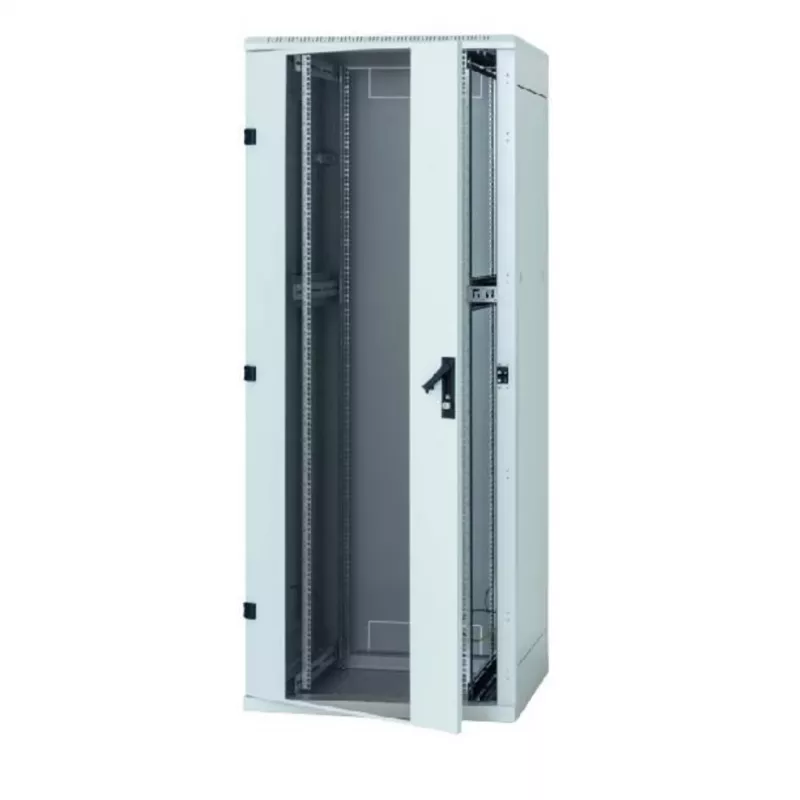

TRITON armario de red de 19" RMA 18U 800x800 mm gris claro RAL 7035

The TRITON RMA-18-A88-CAX-N1 is a high-quality 19-inch network cabinet designed for professional server and networking environments. With 18U of rack space and dimensions of 800x800mm, this freestanding cabinet offers robust construction and ample capacity for your equipment. Finished in light grey RAL 7035, it provides a clean, uniform appearance suitable for data centers and server rooms.

Advantages

This cabinet features a welded steel frame for exceptional stability and a static load capacity of 600 kg. The front and rear doors are perforated steel with 80% perforation, ensuring optimal airflow for cooling. Removable, lockable side panels allow easy access for maintenance, while the top and bottom cable entries with brush strips simplify cable management. The adjustable 19-inch mounting profiles provide flexibility for various equipment depths.

Suitable for

• Server rooms and data centers requiring reliable equipment housing
• Network infrastructure installations (switches, patch panels, servers)
• Environments needing passive ventilation with provision for active cooling units

Key specifications

• Rack Units: 18U
• External Dimensions (WxDxH): 800 x 800 x 900 mm
• Usable Depth: Approx. 700 mm
• Colour: Light Grey (RAL 7035)
• Material: Steel Sheet
• Construction: Welded Steel Frame
• Front/Rear Door: Perforated Steel (80% perforation), 180° opening
• Side Panels: Removable, Lockable
• Static Load Capacity: 600 kg
• Protection Rating: IP20
• Standard Compliance: IEC 60297-2, EN 60950-1
• Lock Type: Standard Lock (universal key)

Recommendations

For optimal performance, ensure proper ventilation and consider adding active cooling units if deploying high-density equipment. The cabinet is designed for easy integration into existing network infrastructures.
