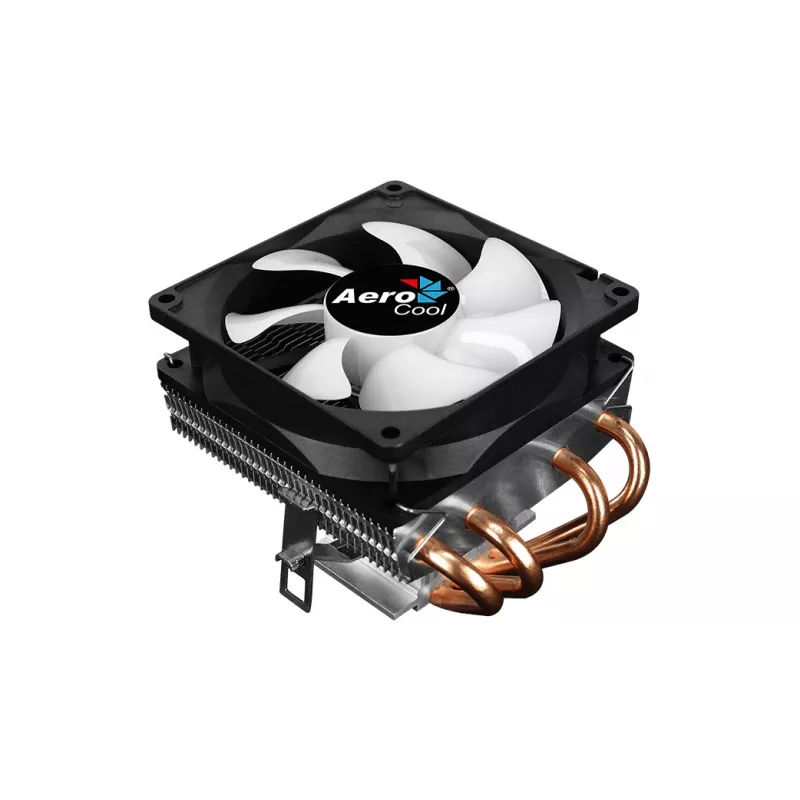

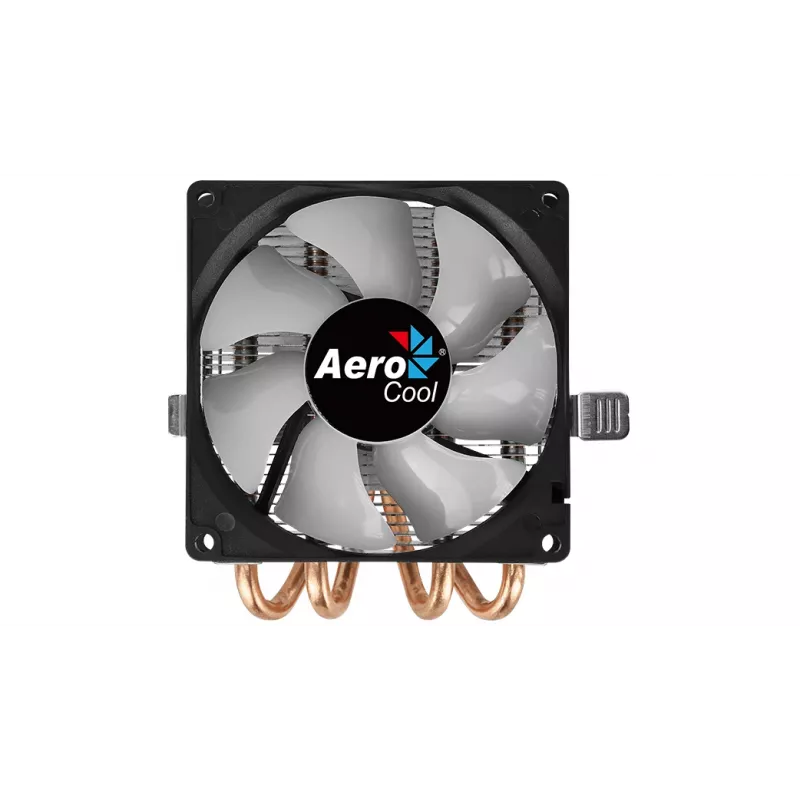

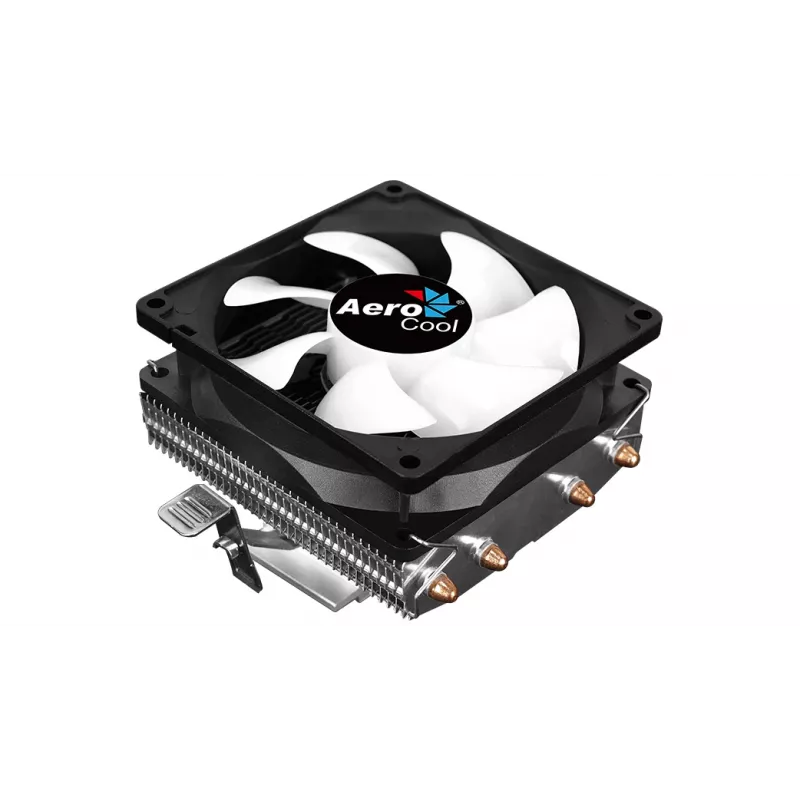

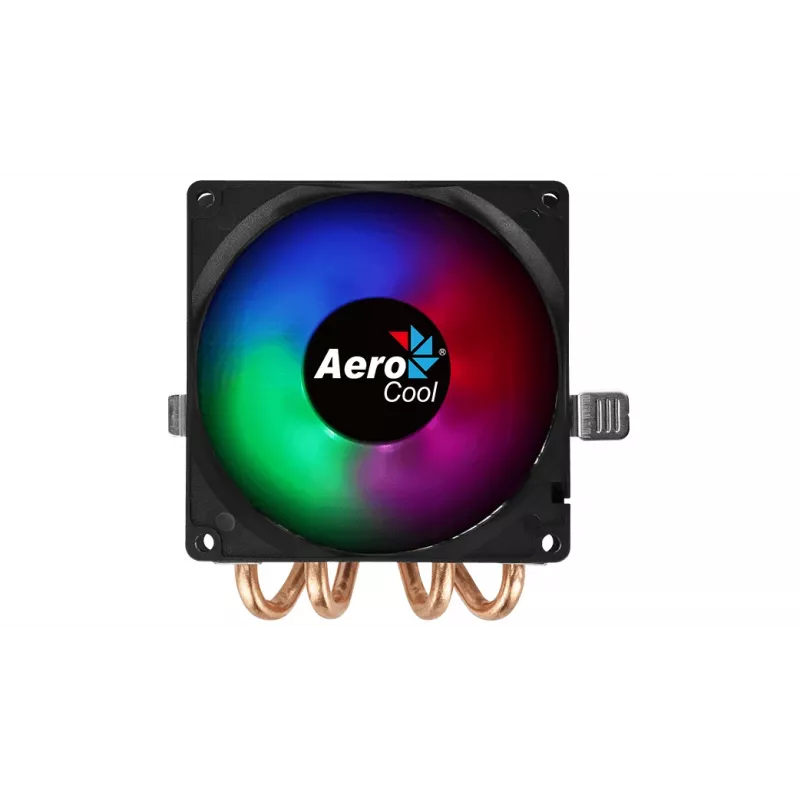

Ventilador de CPU AEROCOOL Air Frost 4 — 4 heatpipes, ventilador de 90 mm, TDP 125 W, aletas de aluminio, negro

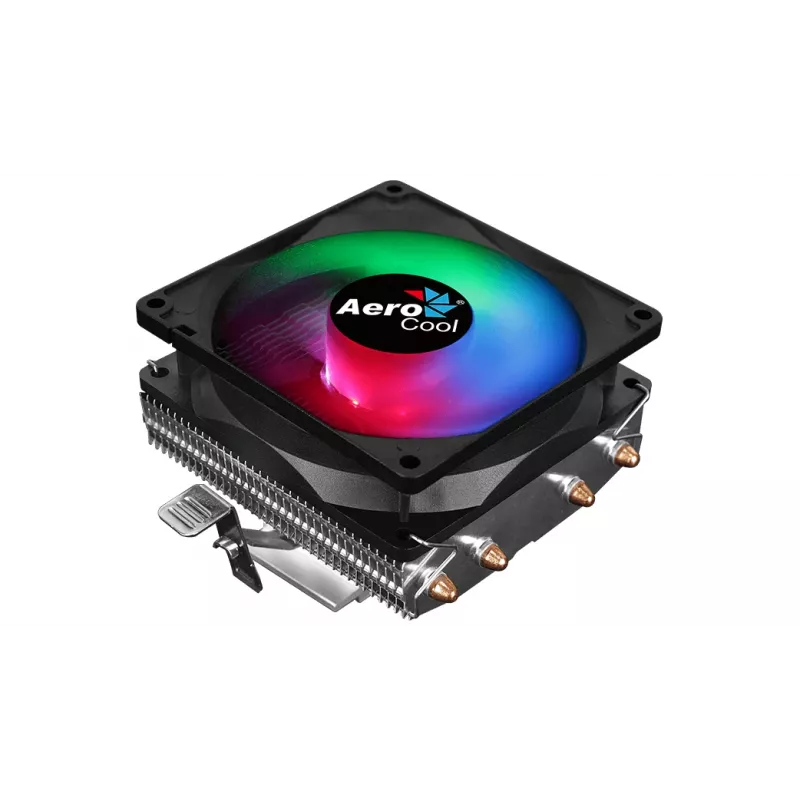

Cooler Aerocool Air Frost 4 Processor 9 cm Black is a compact CPU air cooler with a 90 mm fan and fixed RGB LED lighting. It uses Heat Core Touch Technology (HCTT) with four heat pipes and a top-down cooling layout that improves heat dissipation while remaining compatible with most current motherboard and case designs. The cooler has upgraded high-efficiency fins, a 3-pin connector, and is intended for mainstream desktop processor cooling.

Advantages

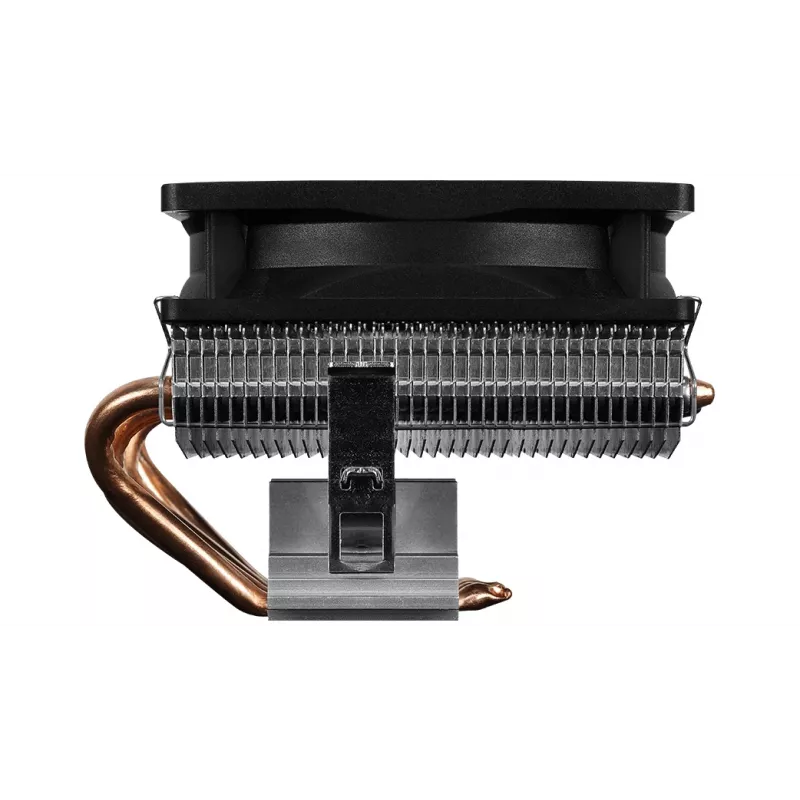

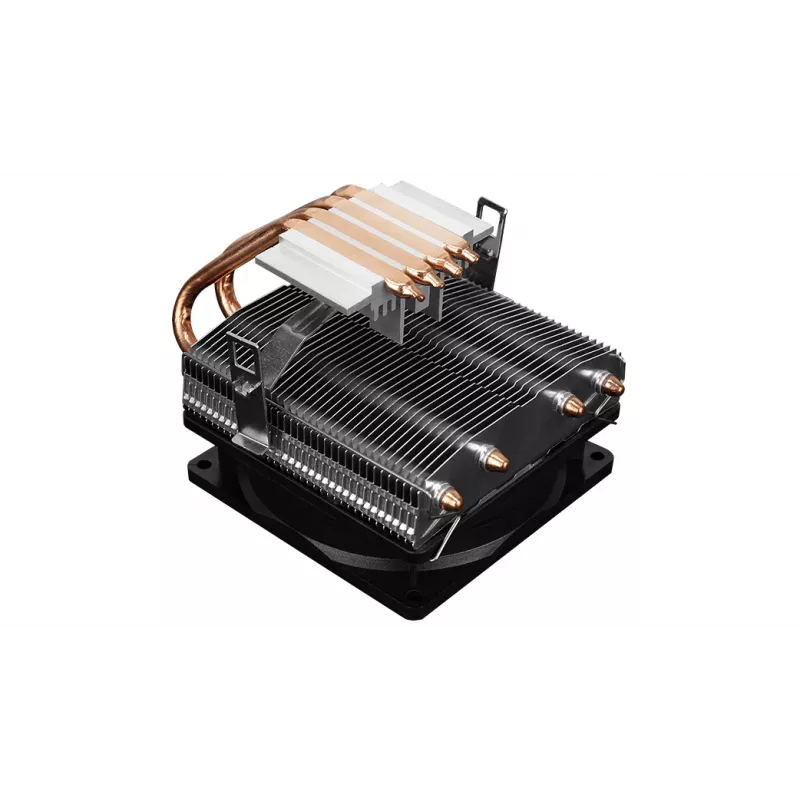

The fixed RGB LED lighting provides a static visual accent without additional control hardware. Heat Core Touch Technology with four heat pipes ensures a flat contact surface for reduced thermal transfer loss and improved heat transfer from the CPU. Top-down cooling and upgraded high-efficiency fins speed up heat dissipation and increase compatibility with different case layouts. The 90 mm fan with hydraulic bearing offers reliable operation and a compact footprint.

Suitable for

• Compact desktop PCs and small form-factor builds
• Mainstream CPU cooling for LGA and AM/FM socket platforms
• Systems where a low-profile cooler is required to improve airflow over motherboard components
• Builders who want a static RGB accent without addressable control

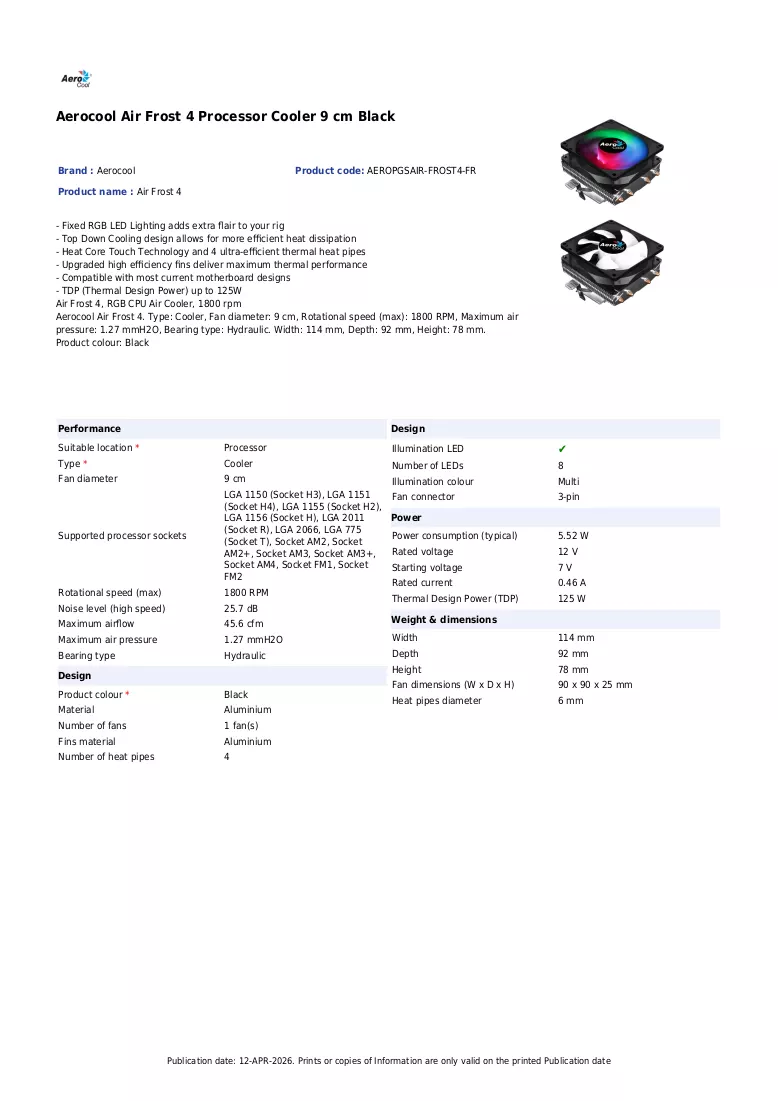

Key specifications

• Fan diameter: 90 mm
• Maximum rotational speed: up to 1800 RPM
• Bearing type: hydraulic bearing
• Maximum air pressure: 1.27 mmH2O
• Heat pipes: 4 (Heat Core Touch Technology)
• Dimensions (W×D×H): 114 × 92 × 78 mm
• Colour: Black
• TDP rating: 125 W
• Connector: 3-pin
• Compatible sockets: LGA 2066/2011/115X/1150/1151/1155/1156/775; AM4/AM3+/AM3/AM2+/AM2; FM2/FM1

How to use

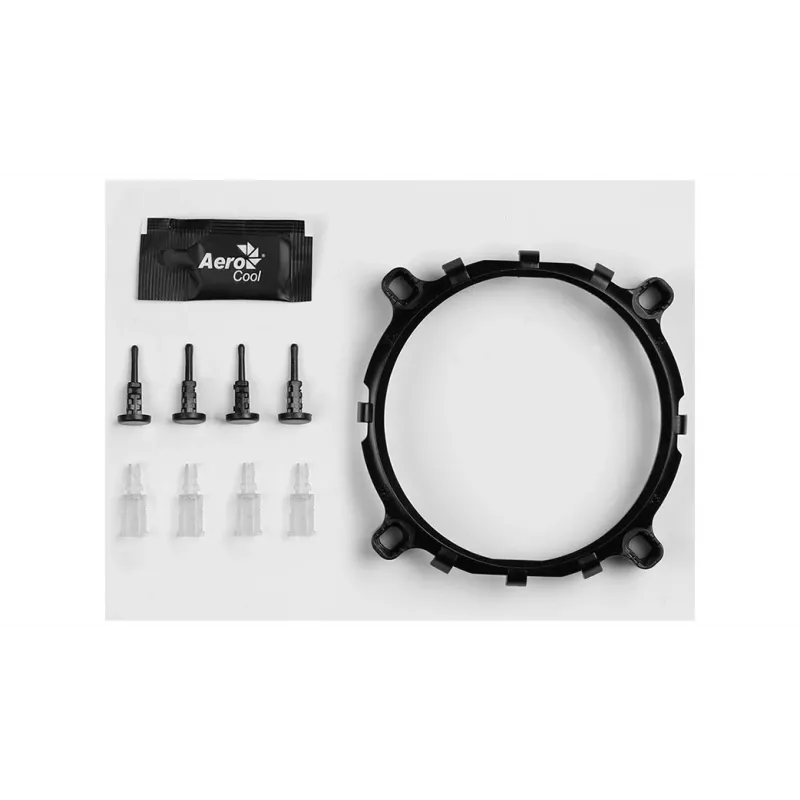

Mount the cooler onto the CPU following the motherboard socket-specific mounting brackets and the manufacturer's instructions. Ensure the cooler base makes full, flat contact with the CPU heatspreader for optimal performance. Connect the fan to a 3-pin CPU or system fan header on the motherboard and secure the cooler in the case, taking care that the top-down airflow direction complements case ventilation. Verify BIOS or OS fan settings to achieve the desired balance between cooling and noise.

Recommendations

For best results, apply a thin, even layer of thermal paste between the CPU and cooler base, confirm clearance with memory modules and tall VRM heatsinks, and ensure case airflow provides intake and exhaust paths aligned with the cooler's top-down design.
