Ventilador de CPU AEROCOOL PGS Rave 4 FRGB ventilador de 120 mm, 4 heatpipes, ARGB, 120 × 25 mm, 1800 rpm, 12 V, 0,5 A

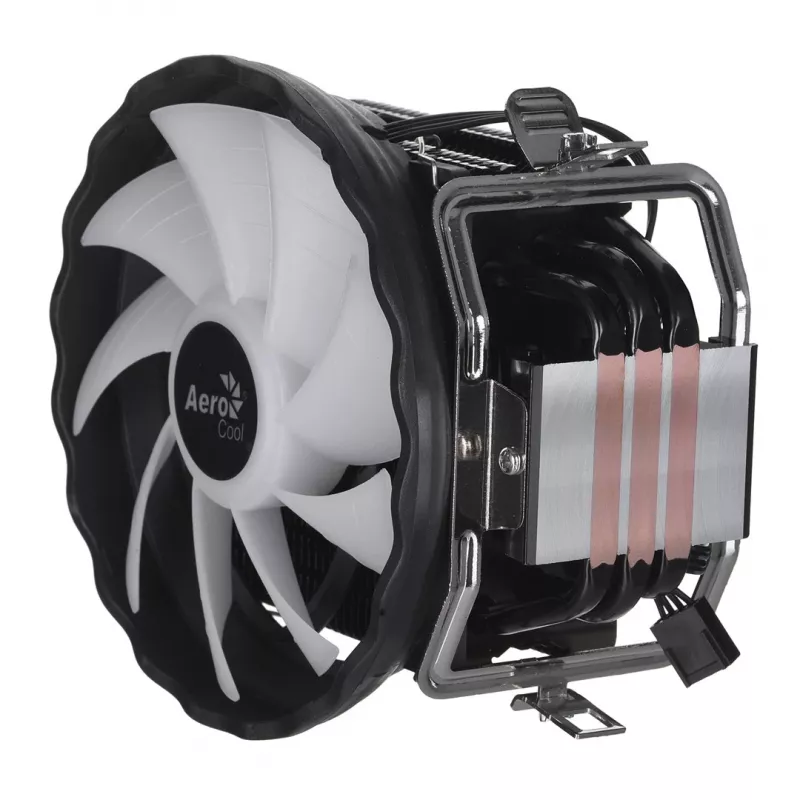

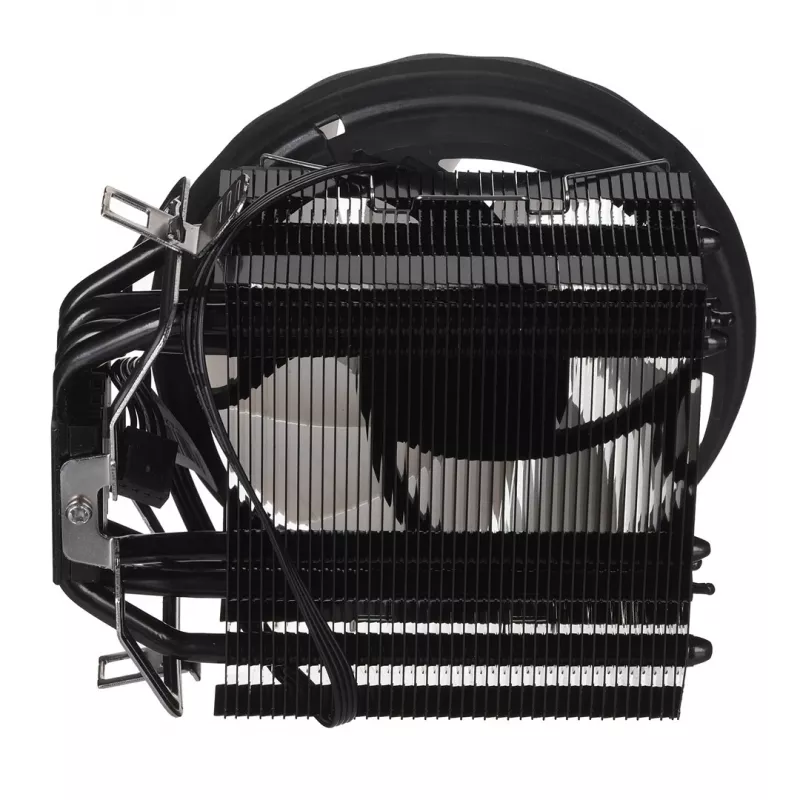

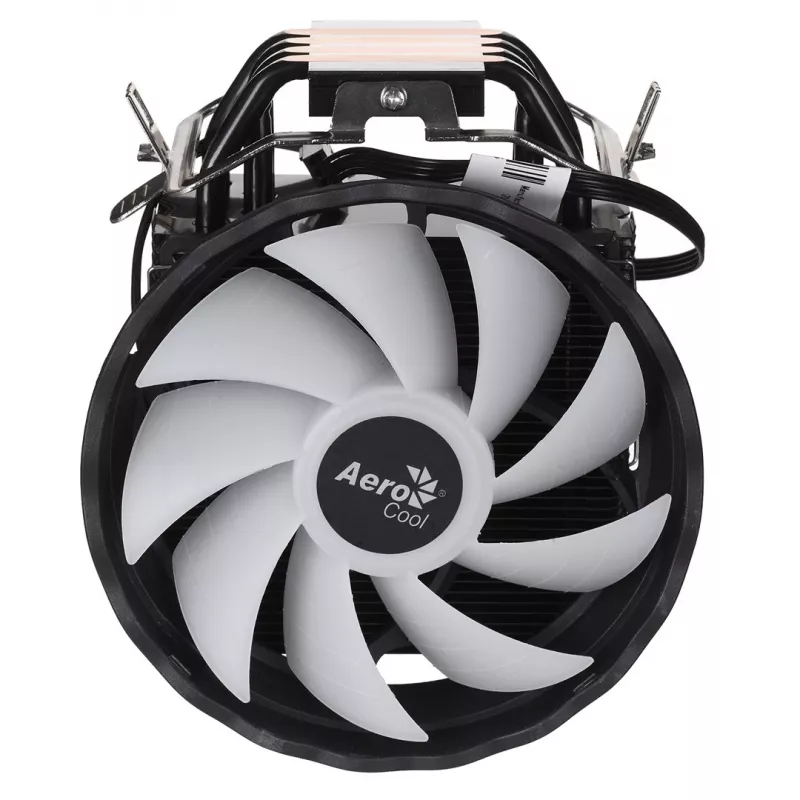

AEROCOOL PGS Rave 4 FRGB is an air CPU cooler with a single 120×25 mm fan and ARGB illumination. The cooler uses four heat pipes and aluminium fins with a hydraulic-bearing fan to provide processor cooling in desktop PCs. It operates at up to 1800 RPM, delivering airflow in the 24.1–58 CFM range and air pressure between 0.6 and 1.6 mmH2O. Rated voltage is 12 V with typical power consumption around 6 W and a rated current of 0.5 A. Noise level ranges from 18 to 27 dBA and the mean time between failures (MTBF) is 60,000 hours.

Advantages

The cooler combines four heat pipes and aluminium fins for improved heat transfer while a 120 mm hydraulic-bearing fan offers a balance of airflow and low noise. Integrated ARGB backlighting with 8 LEDs provides multi-colour illumination compatible with standard 4-pin ARGB headers. The unit is compact in profile and designed for use on typical desktop processor sockets.

Suitable for

• Cooling desktop PC processors in standard ATX/micro-ATX cases
• Systems requiring ARGB lighting for visual customization
• Builds that prioritize a balance of airflow and low acoustic output

Key specifications

• Fan size: 120 × 25 mm
• Fan speed (max): 1800 RPM
• Airflow: 24.1–58 CFM
• Air pressure: 0.6–1.6 mmH2O
• Noise level: 18–27 dBA
• Number of heat pipes: 4
• Fins material: Aluminium
• Heat sink material: Aluminium
• Bearing type: Hydraulic
• LEDs: 8 ARGB LEDs (multi-colour)
• Connector: 4-pin fan / 4-pin ARGB
• Rated voltage: 12 V
• Rated current: 0.5 A
• Typical power consumption: 6 W
• MTBF: 60,000 hours
• Colour: Black
• Supported socket (example): LGA 1155

How to use

Install the cooler on the CPU according to the motherboard and case manufacturer's instructions, applying thermal paste between the processor heat spreader and the cooler base if not pre-applied. Secure the mounting brackets firmly and connect the fan power connector to the 4-pin CPU fan header and the ARGB cable to a compatible 4-pin ARGB header on the motherboard or controller. Ensure sufficient clearance within the case for the 120×25 mm fan and confirm fan orientation for proper airflow direction toward the case exhaust.

Recommendations

For reliable operation, use a compatible 12 V, 4-pin ARGB header and set fan control in BIOS or software to maintain a balance between cooling and noise. Periodically clean dust from fins and the fan to preserve airflow and cooling performance.
