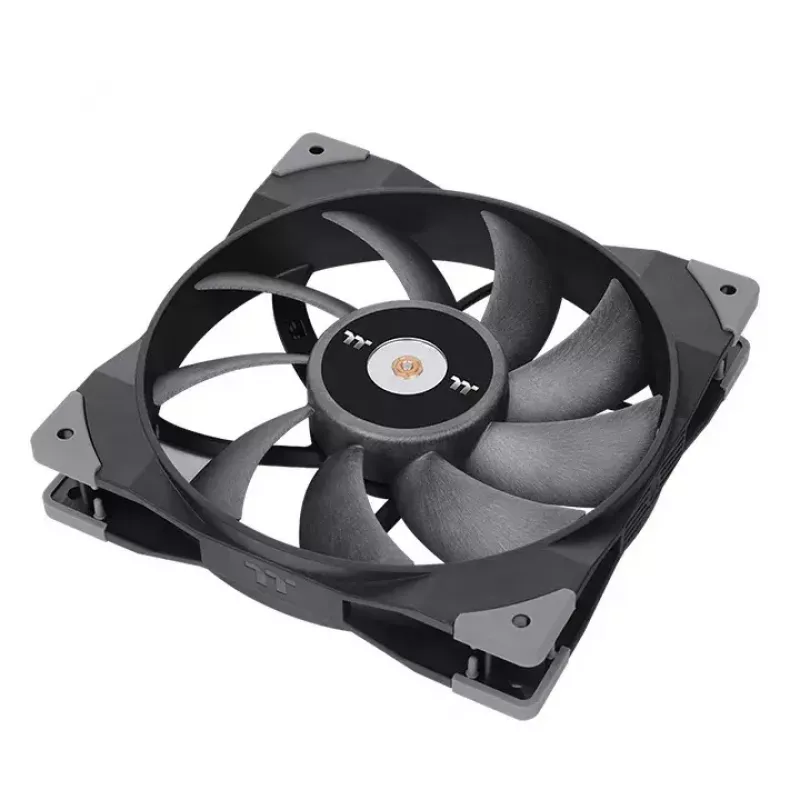

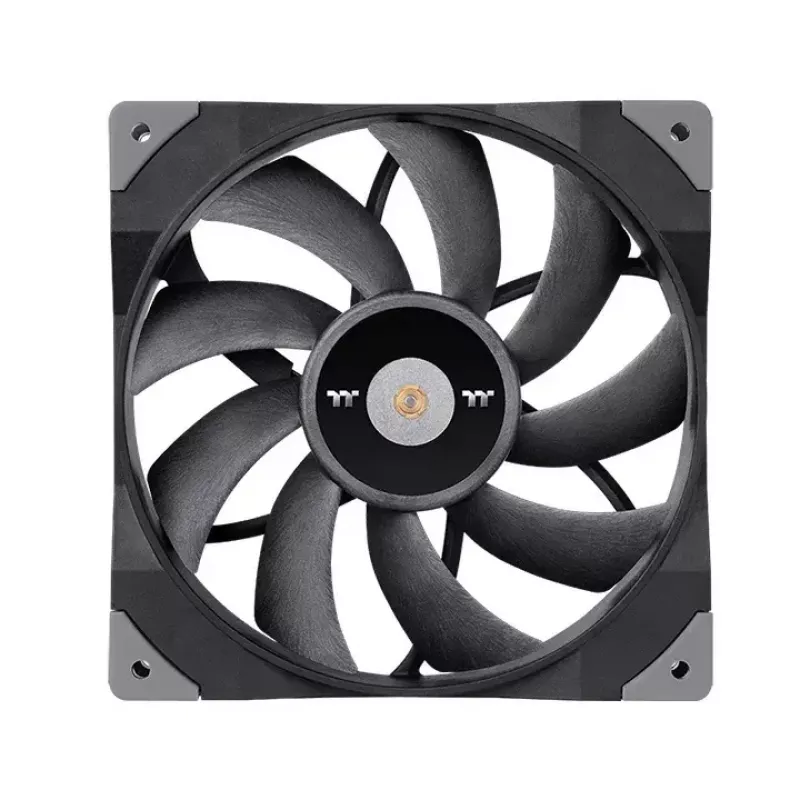

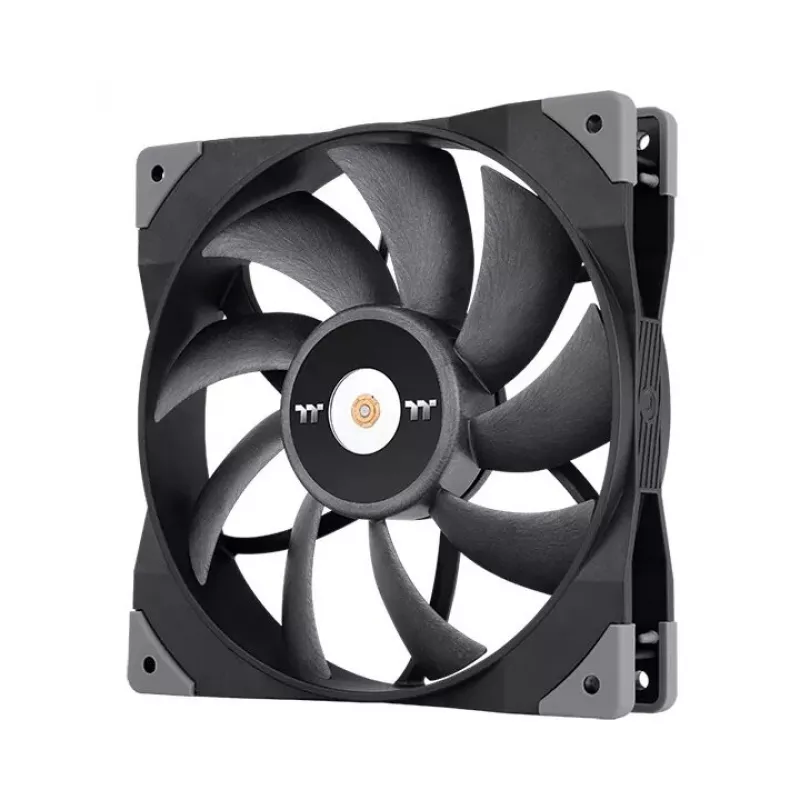

Ventilador Thermaltake TOUGHFAN 14

The Thermaltake TOUGHFAN 14 is a 140 mm PWM-controlled case fan engineered for high static pressure and consistent cooling performance. With a rotational speed range from 500 to 2000 RPM and a maximum air pressure of 3.54 mmH2O, this black fan suits radiator and air-cooler applications while maintaining stable operation thanks to a metal-reinforced motor hub and a 2nd generation hydraulic bearing.

Advantages

The TOUGHFAN 14 delivers strong airflow and high static pressure at speeds up to 2000 RPM for effective heat dissipation. Its liquid crystal polymer (LCP) blades reduce vibration at high speeds, while the full-steel motor hub increases stability and durability. The 2nd generation hydraulic bearing preserves lubricant and reduces operational noise, extending the fan's service life. Anti-vibration in-mold rubber pads provide 80% corner coverage to dampen vibration without compromising performance.

Suitable for

• Case cooling in desktop PCs
• Radiator fans for liquid cooling systems
• CPU air cooler installations requiring 140 mm fans
• Systems where high static pressure is needed to push air through heatsinks or radiators

Key specifications

• Type: Fan
• Fan diameter: 140 mm
• Speed range: 500–2000 RPM (PWM-controlled)
• Maximum air pressure: 3.54 mmH2O
• Bearing: 2nd generation hydraulic bearing
• Motor hub: Metal-reinforced (steel)
• Colour: Black
• Weight: 0.2407 kg
• MPN: CL-F118-PL14BL-A
• EAN: 4713227526821

How to use

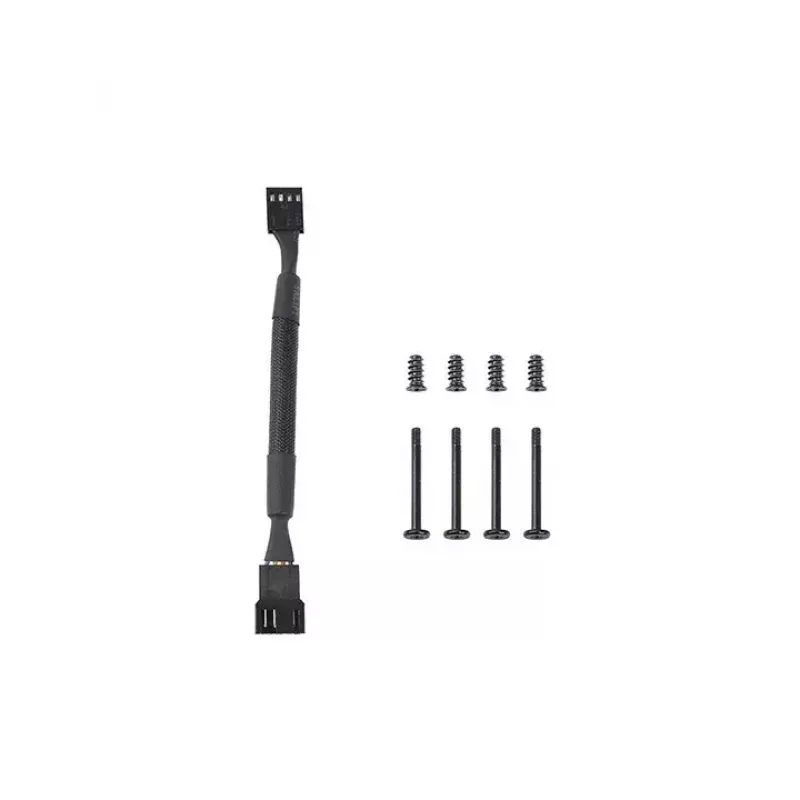

Install the Thermaltake TOUGHFAN 14 in a standard 140 mm mounting location using the supplied screws or anti-vibration mounts as appropriate. Connect the PWM cable to a compatible motherboard fan header to enable automatic speed control between 500 and 2000 RPM. Orient the fan so that airflow is directed through the radiator or across the heatsink as required by your cooling layout. Ensure the fan is mounted securely with rubber pads aligned at the corners for vibration damping.

Recommendations

For balanced cooling and noise, configure PWM curves in the motherboard BIOS or fan control software to match system load. Use the TOUGHFAN 14 on radiators and dense heatsinks where higher static pressure improves thermal performance, and periodically check mounting points and clean blades to maintain efficiency and longevity.
