Vertiv PSA6E-2200IT-SCH SAI online de doble conversión 2200 VA (rack/torre, 5x C13, 1x C19)

For IT environments where power quality is non-negotiable, the Vertiv PSA6E-2200IT-SCH stands apart with true online double-conversion topology. Unlike line-interactive units that switch to battery during disturbances, this UPS continuously regenerates clean AC power, eliminating transfer time and protecting sensitive equipment from voltage fluctuations, frequency variations, and harmonic distortion. With 2200 VA / 1225 W capacity in a versatile 2U rack/tower form factor, it delivers enterprise-grade power protection for servers, networking gear, and critical edge infrastructure. The unit offers five IEC C13 outlets and one C19 outlet, all backed by a pure sine wave output that ensures compatibility with active PFC power supplies. Hot-swappable batteries, an intuitive graphical LCD, and extensive management options make it a resilient foundation for business continuity.

Highlights

• Online double-conversion topology provides continuous, zero-transfer power conditioning
• 2200 VA / 1225 W output supports high-density IT loads with active PFC power supplies
• Flexible rack/tower installation (2U) with included mounting hardware
• Six output receptacles: 5x IEC C13 and 1x IEC C19
• Pure sine wave output for maximum compatibility with modern electronics
• Hot-swappable VRLA batteries simplify maintenance without downtime
• Multi-language graphical LCD for real-time status, diagnostics, and configuration
• Up to 95% efficiency in online mode, up to 98% in ECO mode
• USB, RS-232, and intelligent slot for optional SNMP/Web management card

In daily use

Deploy the PSA6E-2200IT-SCH in a server room, network closet, or remote site. Its automatic and manual bypass ensures seamless transfer to utility power during overload or fault conditions, while the wide input voltage range (176–280 V) reduces unnecessary battery usage. The graphical LCD provides at-a-glance load level, battery status, and input/output parameters, and audible alarms alert you to power events. With a recharge time of just 3 hours to 90% capacity, the UPS is quickly ready for the next outage. For extended runtime, connect external battery cabinets (sold separately) to scale backup time to your needs.

Full specifications

• Topology: Online double-conversion
• Output capacity: 2200 VA / 1225 W
• Nominal input voltage: 230 V AC (range 176–280 V, configurable)
• Nominal output voltage: 230 V AC (configurable 200/208/220/230/240 V)
• Output waveform: Pure sine wave

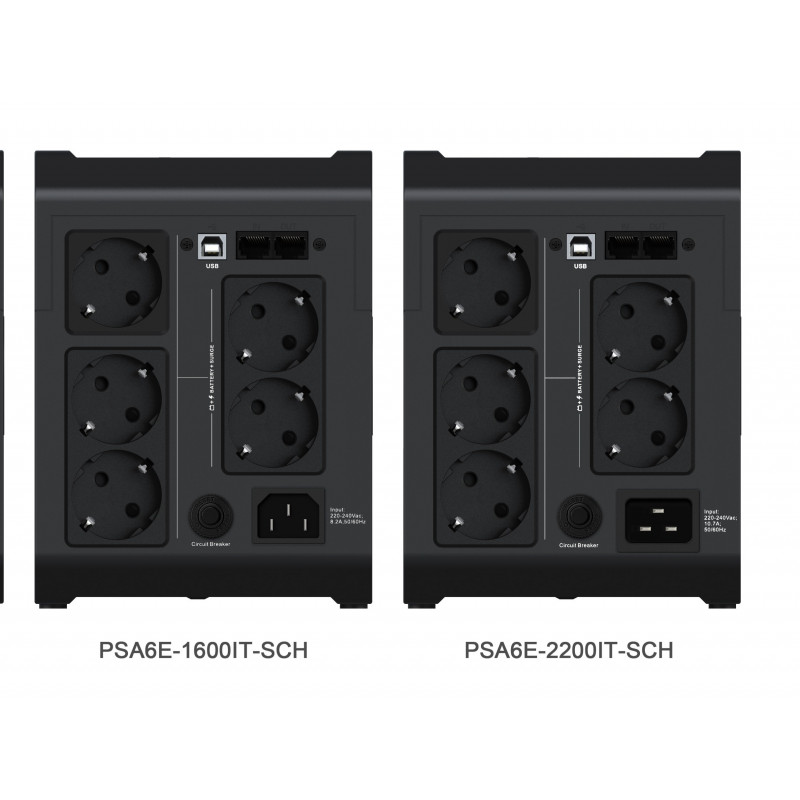

• Output connections: 5x IEC 320 C13, 1x IEC 320 C19
• Input connection: 1x IEC 320 C20
• Battery type: Sealed lead-acid (VRLA), hot-swappable
• Typical recharge time: 3 hours to 90%
• Form factor: Rack/tower (2U)
• Management ports: USB, RS-232, intelligent slot
• Efficiency: Up to 95% online, 98% ECO mode
• Bypass: Automatic and manual
• Display: Multi-language graphical LCD
• Noise level: <50 dBA at 1 meter
• Phase: Single-phase
• Extended runtime: Yes, with external battery cabinets

Final note

For mission-critical systems that demand zero transfer time and precise voltage regulation, the Vertiv PSA6E-2200IT-SCH delivers robust, efficient, and manageable power protection in a space-saving design.
