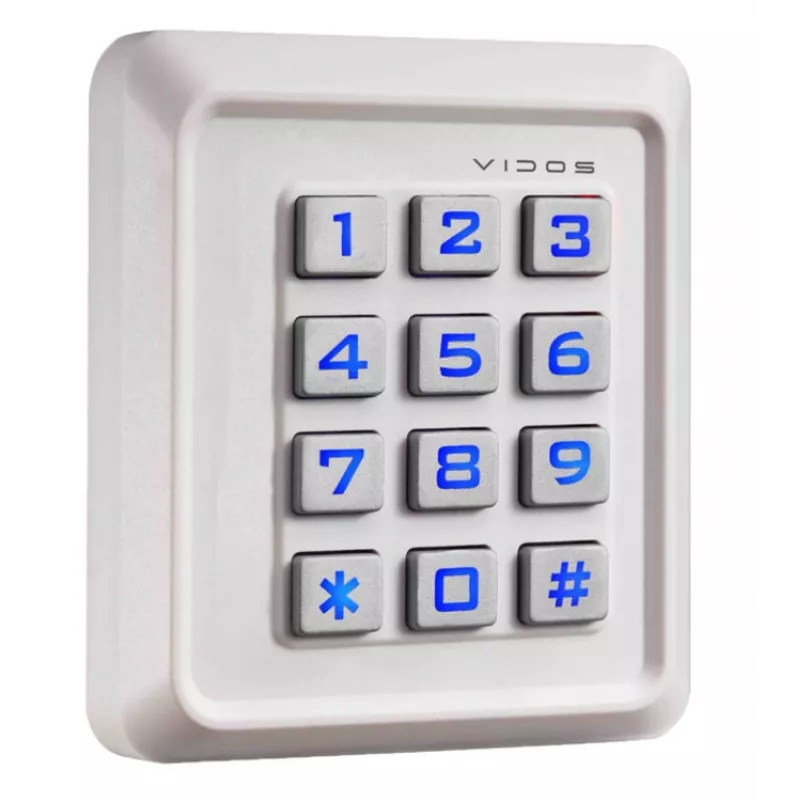

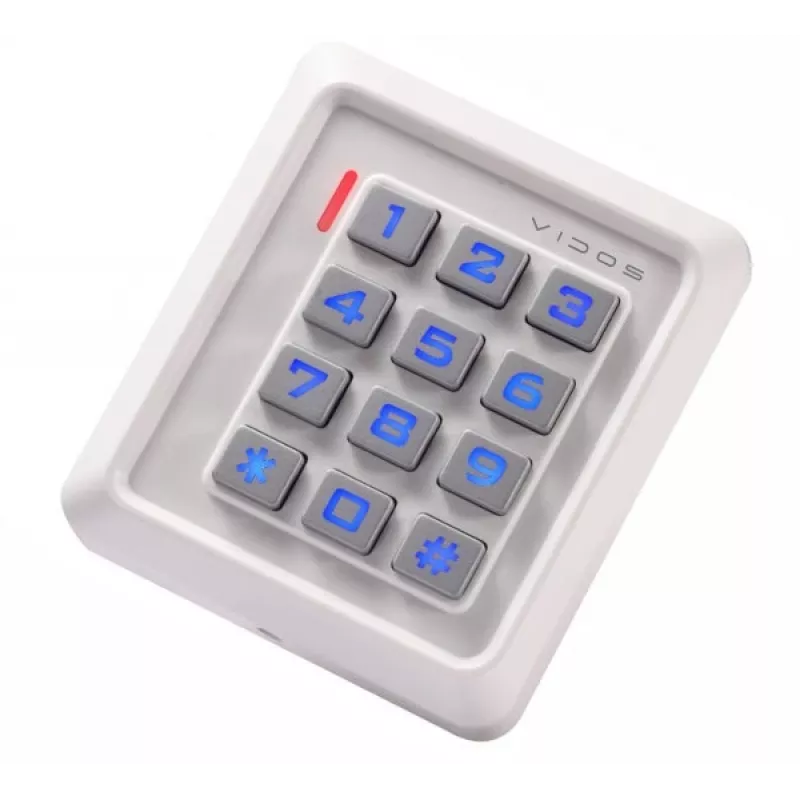

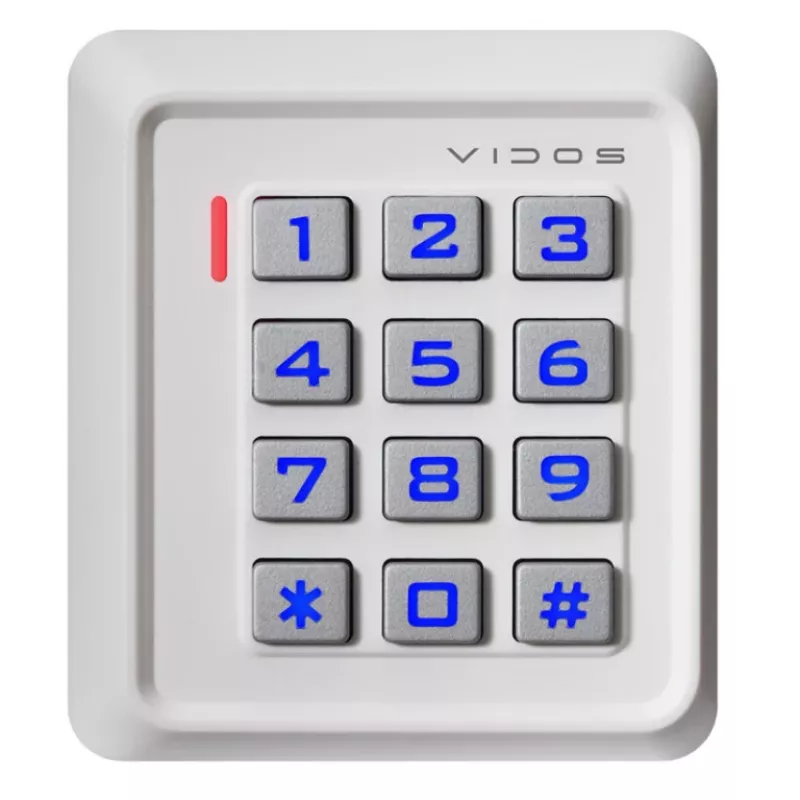

VIDOS ZS40W cerradura de combinación con lector de proximidad

The VIDOS ZS40W is a combination lock with a built-in proximity reader, designed for indoor access control. It supports opening via RFID card, key fob, sticker, or a four-digit code, and features a backlit keypad with an operation mode LED.

Key features

• Backlit keypad with operation mode LED
• Control electric strike using card, key fob, RFID sticker, or four-digit code
• Adjustable latch opening time: 1–99 seconds
• Built-in internal alarm system to protect against unauthorized use
• Door open sensor function (requires installation of a contact sensor)
• Supports reversing latches and electromagnetic locks (NO/NC relay)
• Tamper sensor
• Option to connect an additional latch release button

Specifications

• Brand: Vidos
• Model: ZS40W
• Housing material: ABS plastic
• Proximity card reader: Yes – built-in
• Reader operating standard: UNIQUE 125kHz
• Zone support: 1
• Memory capacity: 2000 user cards/codes
• Latch opening time: 1–99 seconds
• Latch support: Reversing latches and electromagnetic locks (NO/NC relay)
• Keypad: Backlit
• Housing colour: White
• Power supply: 12V DC
• Operating current: 60mA
• Standby current: 25mA
• Operating temperature: -20°C to +50°C
• Maximum relay contact load NO/NC: 1A/12V (1 relay output)
• RFID reader range: approx. 5cm (depending on transponder used)
• Ingress protection: IP40
• Dimensions: 82x92x21mm
