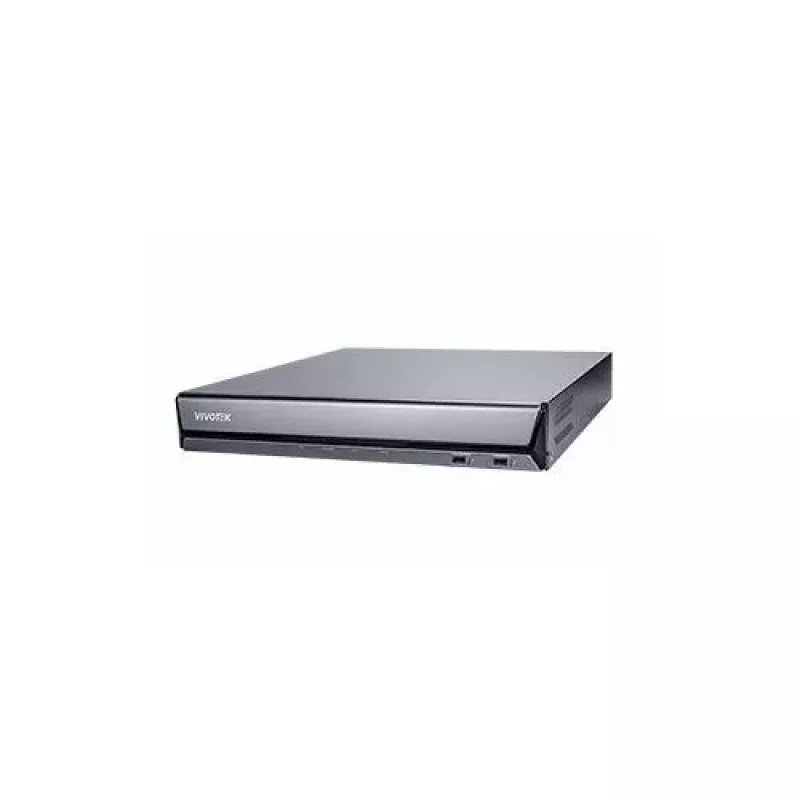

VIVOTEK ND9542P Grabador de vídeo en red, 32 canales, 4 HDD, H.265, 16 PoE, Core+ AI

The VIVOTEK ND9542P is a high-performance 32-channel network video recorder (NVR) designed for professional surveillance systems. With support for up to 4 HDDs (up to 64TB total), RAID 0/1/5, and 16 PoE ports, it delivers reliable, scalable storage and simplified cabling. Powered by VIVOTEK's Core+ AI engine, it enables intelligent video analytics for enhanced security.

Advantages

This NVR offers exceptional recording throughput of 360 fps at 1080p, 4K display output via HDMI, and robust RAID protection. The built-in 16-port PoE switch eliminates the need for separate power supplies for cameras, reducing installation complexity and cost.

Suitable for

• Medium to large enterprises requiring 32-channel surveillance
• Retail, warehouse, and office environments with multiple IP cameras
• Applications needing AI-based motion detection, people counting, or license plate recognition

Key specifications

• Video Input: 32 channels
• PoE Ports: 16 x 802.3at/af PoE
• Compression: H.265, H.264, MJPEG
• Recording: 360 fps @ 1080p
• Display: 4K HDMI, 1080p VGA
• Storage: 4 x 3.5" SATA HDD bays, up to 16TB each (64TB total)
• RAID: 0, 1, 5
• Ethernet: 2 x Gigabit RJ45
• Alarm: 16 inputs / 8 outputs
• AI: VIVOTEK Smart VCA with Core+ AI Engine
• Form Factor: 2U rackmount

Recommendations

For optimal performance, pair with VIVOTEK IP cameras supporting H.265 and AI features. Ensure adequate ventilation in the rack to maintain operating temperature between 0°C and 40°C.
