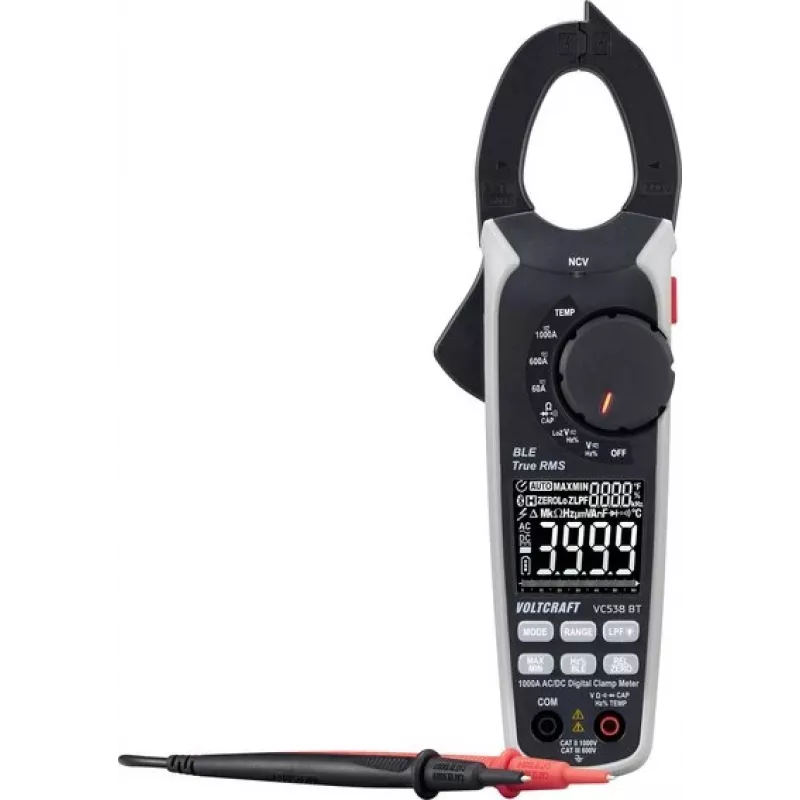

VOLTCRAFT VC538 pinza amperimétrica digital True RMS 6000 cuentas CAT III 600V CAT II 1000V VC-16044235

The VOLTCRAFT VC538 digital clamp meter delivers precise True RMS measurements for AC current up to 600 A, making it an essential tool for electricians and technicians working on industrial or building installations. Its 6000-count backlit display and auto-ranging function ensure clear, accurate readings even in tight or dimly lit spaces.

Advantages

True RMS technology guarantees accurate readings on non-linear loads, while the 30 mm jaw opening accommodates large conductors without interrupting the circuit. The meter includes non-contact voltage detection (NCV), data hold, MIN/MAX recording, and auto power off to extend battery life. With CAT III 600 V and CAT II 1000 V safety ratings, it provides reliable protection for professional use.

Suitable for

• Electrical installation and maintenance in residential and commercial buildings
• HVAC troubleshooting and motor current measurements
• Industrial equipment testing and power quality checks
• Temperature measurement with K-type thermocouple (up to 1000 °C)

Key specifications

• AC current: 0.1 A – 600 A
• DC voltage: 0.1 mV – 1000 V
• AC voltage: 0.1 mV – 750 V
• Resistance: 0.1 Ω – 60 MΩ
• Capacitance: 1 nF – 60 mF
• Frequency: 10 Hz – 10 MHz
• Temperature: -20 °C to 1000 °C
• Display counts: 6000
• Jaw opening: 30 mm
• Functions: AC/DC voltage, AC current, resistance, capacitance, frequency, temperature, continuity, diode test
• Special features: True RMS, NCV, data hold, MIN/MAX, auto-ranging, auto power off, backlight
• Power supply: 3x AAA batteries
• Safety rating: CAT III 600 V, CAT II 1000 V

Recommendations

For professionals who need a rugged, all-in-one clamp meter with True RMS accuracy and comprehensive measurement functions, the VOLTCRAFT VC538 is a top choice. Its backlit display and auto-ranging make it easy to use in any environment, while the included temperature and capacitance ranges add versatility for HVAC and electronics work.
