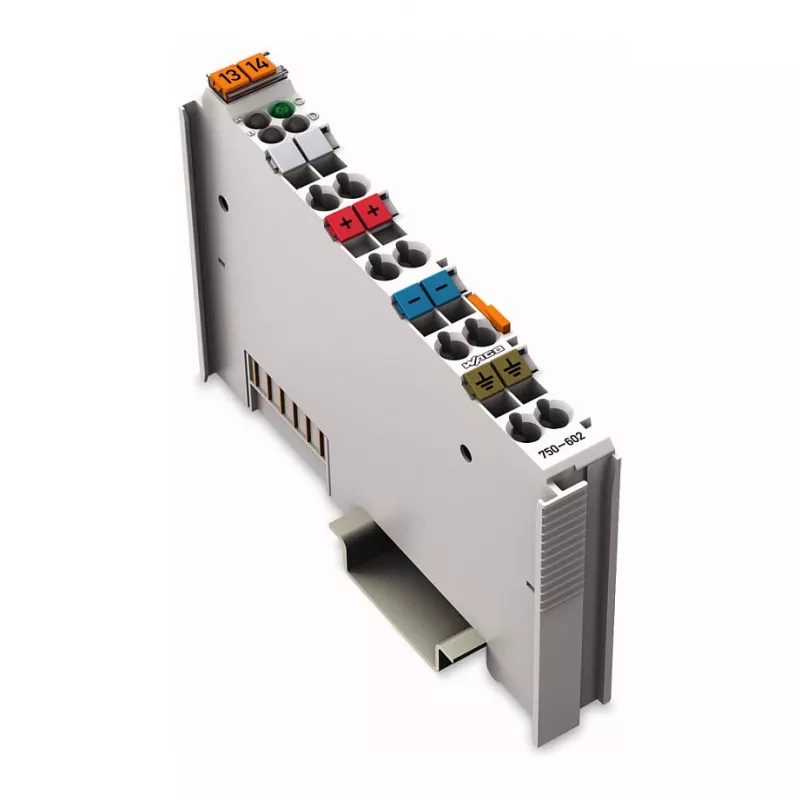

WAGO 750-602 Módulo de alimentación del sistema, 24 VDC, 1,08 A, carril DIN, gris, CAGE CLAMP

The WAGO 750-602 is a high-efficiency system power supply module designed for industrial automation and control systems. It provides a stable 24 VDC output from a wide input voltage range, ensuring reliable operation in demanding environments. With a compact DIN-rail mount design and CAGE CLAMP® connection technology, it simplifies installation and maintenance.

Advantages

High efficiency of 85% reduces energy loss and heat generation. The green LED status indication allows for quick visual monitoring of power availability. The module is approved to CE, UL 508, and KEMA/GL standards, ensuring compliance with international safety and quality requirements.

Suitable for

• Industrial control cabinets and automation systems
• Building automation and process control
• Power supply for WAGO I/O systems and field devices

Key specifications

• Input voltage: 18 ... 30 VDC (nominal 24 VDC)
• Output voltage: 24 VDC
• Output current: 1.08 A
• Power loss: 4.3 W
• Efficiency: 85%
• Mounting: DIN-rail 35 x 15 mm
• Connection: CAGE CLAMP®
• Conductor cross-section: 0.08 ... 2.5 mm² (solid/fine-stranded)
• Colour: Light grey
• Operating temperature: 0 ... 55 °C
• Protection: IP20
• Isolation voltage: 500 V (system/field)

Recommendations

For optimal performance, use with WAGO 750 series I/O modules and ensure proper ventilation. The module is designed for continuous operation and should be installed by qualified personnel.
