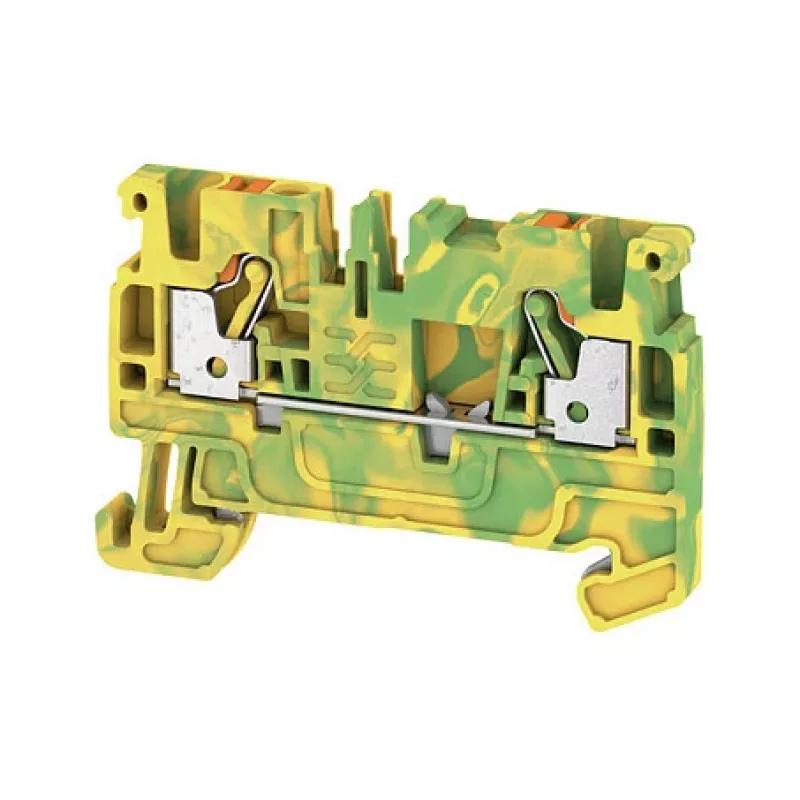

Weidmüller A2C 2.5 PE borne de carril para conductor de protección, verde/amarillo, 2 conexiones, 2,5 mm², PUSH IN

The Weidmüller A2C 2.5 PE is a high-quality protective earth terminal block from the A-Series, designed for reliable grounding and earthing applications. With PUSH IN connection technology, it ensures fast, tool-free wiring and a secure, vibration-resistant connection. The green/yellow color coding clearly identifies it as a protective earth terminal, enhancing safety in electrical installations.

Advantages

PUSH IN technology reduces installation time by up to 50% compared to screw connections. The compact design saves space on DIN rails, and the Wemid insulation material offers excellent thermal and mechanical properties. The terminal block is rated for up to 24 A and 800 V, making it suitable for industrial control panels and distribution boards.

Suitable for

• Protective earth (PE) connections in control cabinets
• DIN rail TS 35 mounting in industrial and commercial electrical systems
• Applications requiring high reliability and compliance with IEC 60947-7-2

Key specifications

• Terminal Type: Protective Earth Terminal Block
• Connection Technology: PUSH IN
• Nominal Cross-Section: 2.5 mm²
• Number of Connections: 2
• Color: Green/Yellow
• Mounting Type: DIN Rail TS 35
• Rated Current (IEC): 24 A
• Rated Voltage (IEC): 800 V
• Conductor Size (Solid): 0.5 - 4 mm²
• Conductor Size (Stranded): 0.5 - 2.5 mm²
• Wire Stripping Length: 10 mm
• Insulation Material: Wemid
• Flammability Rating: UL 94 V-0
• Operating Temperature: -50 °C to +120 °C
• Pollution Degree: 3
• Standards/Approvals: IEC 60947-7-2, UL, CSA, EAC

Recommendations

For optimal performance, use with Weidmüller marking accessories and cross-connection combs. Ensure proper wire stripping length of 10 mm for reliable PUSH IN connection.
