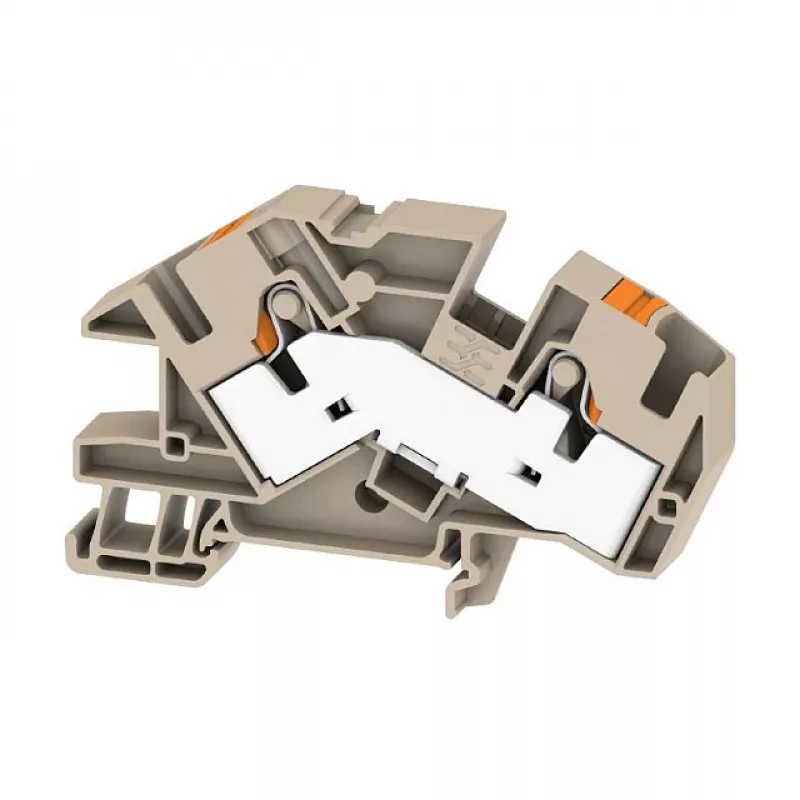

Weidmüller AITB 16 BB 2C borne de carril de instalación, conexión por tornillo, carril DIN, 500V, 76A, 0,5-16 mm², beige oscuro

The Weidmüller AITB 16 BB 2C is a high-quality installation terminal block designed for reliable and safe electrical connections in industrial and building installations. With a screw connection system and DIN rail mounting (TS 35), it offers a rated voltage of 500 V and a rated current of 76 A, making it suitable for demanding applications. The terminal block features three potentials (P, PE, N) with two connections per potential, accommodating rigid and flexible conductors from 0.5 to 16 mm². Its compact single-level design and dark beige color ensure easy identification and integration into control cabinets.

Advantages

Robust screw connection ensures secure and vibration-resistant wiring. Wide conductor range (0.5-16 mm²) provides flexibility for various cable sizes. High rated current (76 A) and voltage (500 V) support heavy-duty applications. Operating temperature range from -50 °C to 120 °C guarantees performance in extreme environments. Wemid insulation material offers excellent thermal and mechanical properties.

Suitable for

• Industrial control panels and switchgear
• Building automation and distribution systems
• Power supply and motor control circuits
• Railway and transportation applications

Key specifications

• Connection Type: Screw Connection
• Mounting Type: DIN Rail (TS 35)
• Number of Potentials: 3 (P, PE, N)
• Number of Connections per Potential: 2
• Rated Voltage (IEC): 500 V
• Rated Current (IEC): 76 A
• Conductor Cross-Section (Rigid/Flexible): 0.5 - 16 mm²
• Insulation Material: Wemid
• Color: Dark Beige
• Stripping Length: 14 mm
• Clamping Screw Torque: 1.2 - 2 Nm
• Rated Impulse Voltage: 6 kV
• Pollution Degree: 3
• Operating Temperature: -50 °C to 120 °C
• Number of Levels: 1

Recommendations

For optimal performance, use with appropriate DIN rail accessories and ensure proper torque settings. Always follow local electrical codes and manufacturer guidelines.
