Weidmüller borne de paso, conexión por tornillo, 2,5 mm², 24 A, 800 V, beige, 50 uds.

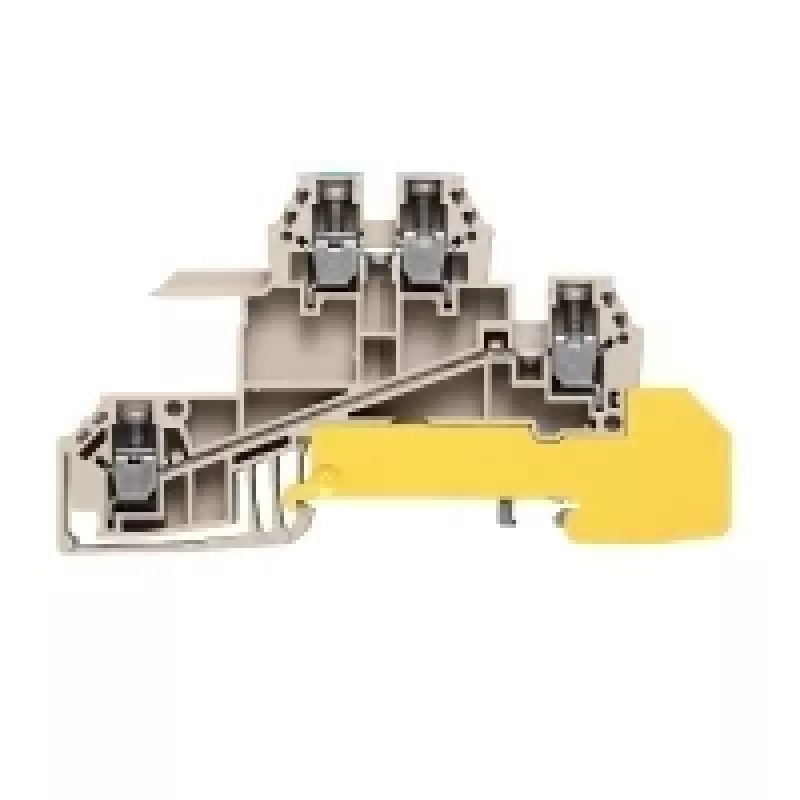

The Weidmüller feed-through terminal block (model 1030700000) is a reliable and robust solution for electrical wiring in industrial control cabinets. Designed for DIN rail mounting, this terminal block features a screw connection technology that ensures secure and durable wire termination. With a rated cross-section of 2.5 mm² and a rated current of 24 A, it is suitable for a wide range of applications. The beige insulating material (Wemid) provides excellent thermal and electrical insulation, while the UL 94 V-0 flammability rating guarantees high safety standards.

Advantages

This terminal block offers easy and fast installation on TS 35 DIN rails, reducing assembly time. The screw connection allows for reliable and maintenance-free connections, even in demanding environments. With a wide operating temperature range from -50 °C to +120 °C, it is suitable for both cold and hot industrial settings. The compact design saves space on the rail, and the clear marking options simplify identification.

Suitable for

• Industrial control panels and switchgear
• Building automation systems
• Machine and plant engineering
• Power distribution and signal wiring

Key specifications

• Product Type: Feed-Through Terminal Block
• Connection Technology: Screw Connection
• Rated Cross-Section: 2.5 mm²
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Wire Size (Solid): 0.5 - 4 mm² (26 - 12 AWG)
• Wire Size (Flexible): 0.5 - 4 mm² (26 - 12 AWG)
• Number of Potentials: 1
• Number of Connections: 2
• Mounting Type: DIN Rail TS 35
• Color: Beige
• Insulating Material: Wemid
• Operating Temperature: -50 °C to +120 °C
• Flammability Rating: UL 94 V-0
• Stripping Length: 10 mm
• Dimensions (L x W x H): 48.5 mm x 5.1 mm x 60 mm (on TS 35x7.5 rail)
• Weight (single unit): 6.1 g
• Packaging Quantity: 50 pieces

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque settings. Always follow local electrical codes and regulations. This terminal block is part of Weidmüller's comprehensive range of industrial connectivity solutions.
