Weidmüller WQV 4/10 Puente transversal, 10 polos, 4 mm², amarillo, poliamida, UL 94 V-0, pack de 20 uds.

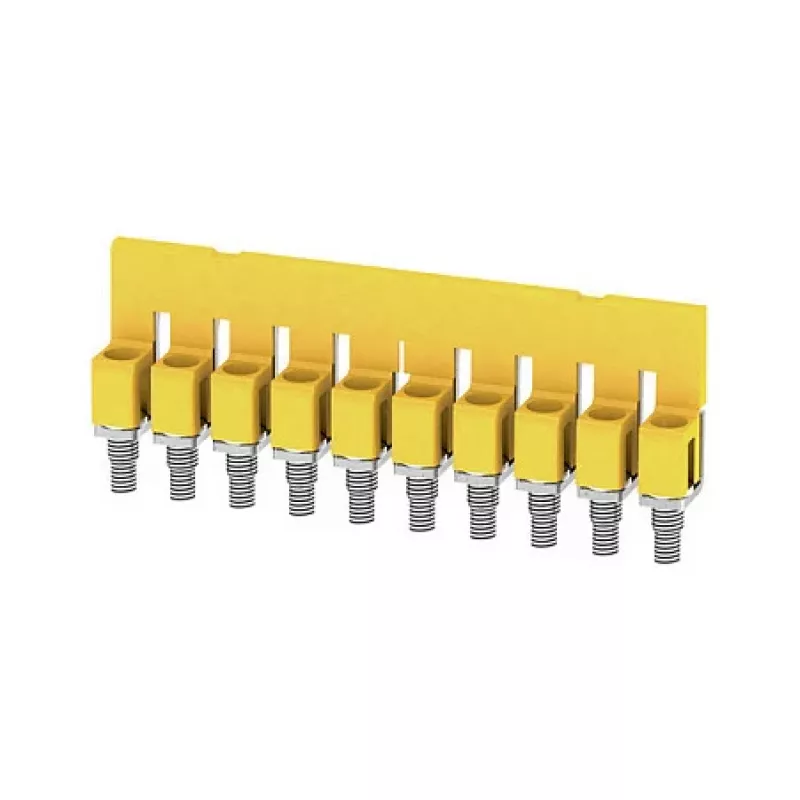

The Weidmüller WQV 4/10 is a high-quality cross-connector designed for potential distribution in terminal block systems. With 10 poles and a nominal cross-section compatibility of 4 mm², this connector ensures reliable electrical connections in industrial control panels and automation systems. Made from durable polyamide (PA) with a UL 94 V-0 flammability rating, it offers excellent thermal and mechanical resistance. The yellow color provides easy identification, and the pack of 20 pieces is ideal for bulk installations.

Advantages

• Reliable potential distribution with 10 poles
• High temperature range from -60 to 130 °C
• Flame-retardant polyamide material (UL 94 V-0)
• Easy plug-in mounting for quick installation
• RoHS and REACH compliant for environmental safety

Suitable for

• Industrial control cabinets
• Automation systems
• Power distribution panels
• Building infrastructure

Key specifications

• Product Type: Cross-connector
• Number of Poles: 10
• Compatible Terminal Block Series: Weidmüller W-Series
• Nominal Cross-section: 4 mm²
• Pitch: 5.1 mm
• Material: Polyamide (PA)
• Flammability Rating: UL 94 V-0
• Color: Yellow
• Operating Temperature: -60 to 130 °C
• Rated Voltage: 800 V
• Rated Current: 32 A
• Mounting Method: Plug-in
• Pack Quantity: 20 pieces
• Standards: IEC 60947-7-1

Recommendations

For optimal performance, use with Weidmüller W-Series terminal blocks. Ensure proper installation according to manufacturer guidelines.
