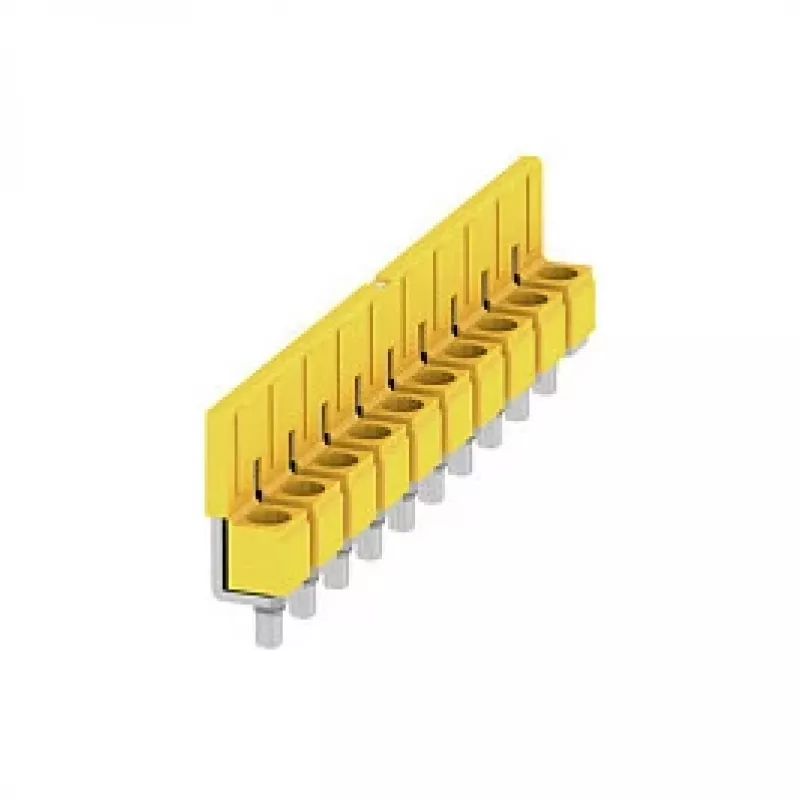

Weidmüller WQV 6/10 puente transversal, 2 polos, paso 8 mm, amarillo, poliamida, 20 uds.

The Weidmüller WQV 6/10 is a high-quality cross-connector designed for potential distribution in terminal block systems. This 2-pole connector features an 8 mm pitch and is made from durable polyamide (PA) with a yellow color. It is suitable for use with WDU 6, ZDU 6, WDU 6/10, and ZDU 6/10 terminal block series. The connector offers a wide operating temperature range from -60 °C to 130 °C and has a flammability rating of UL 94 V-0. Rated voltage is 800 V (IEC) and rated current is 41 A (IEC). Each pack contains 20 pieces. The connector is plug-in mounted and is approved by UL, CSA, VDE, and CE. It is RoHS compliant.

Advantages

Reliable potential distribution with easy plug-in installation. High temperature resistance and flame retardant for safety. Compatible with multiple terminal block series for versatile use.

Suitable for

• Industrial control panels
• Distribution boards
• Electrical installations requiring potential distribution

Key specifications

• Product Type: Cross-Connector
• Number of Poles: 2-pole
• Pitch: 8 mm
• Material: Polyamide (PA)
• Color: Yellow
• Operating Temperature: -60 to 130 °C
• Flammability Rating: UL 94 V-0
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 41 A
• Quantity per Pack: 20 pieces
• Mounting Method: Plug-in
• Approvals: UL, CSA, VDE, CE
• RoHS Compliant

Recommendations

For optimal performance, ensure compatibility with WDU 6, ZDU 6, WDU 6/10, or ZDU 6/10 terminal blocks. Store in a cool, dry place.
