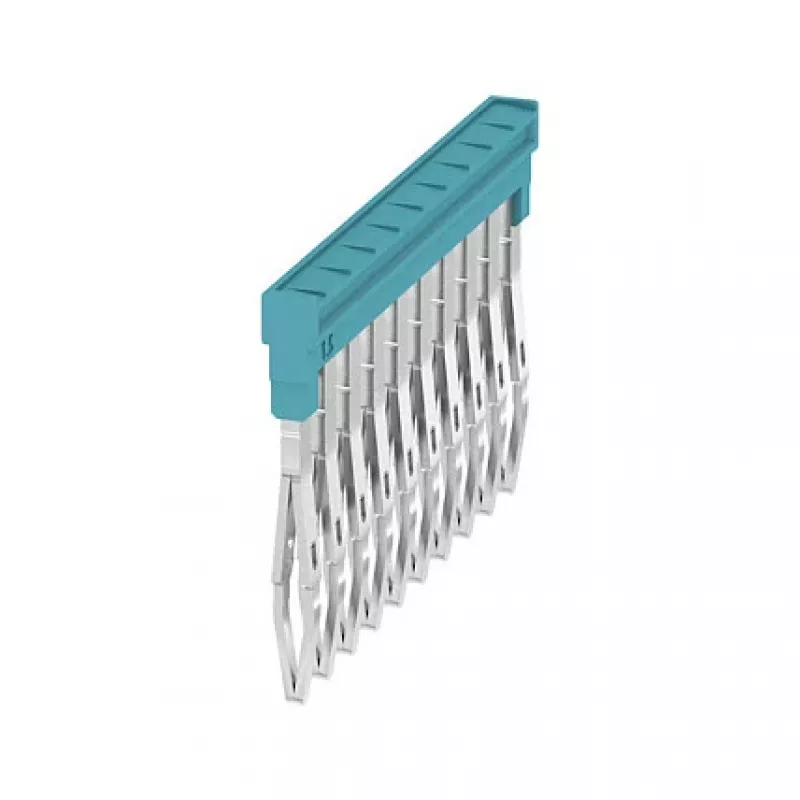

Weidmüller ZQV 1.5N/10 BL puente transversal, 10 polos, azul, 20 unidades

The Weidmüller ZQV 1.5N/10 BL is a high-quality cross-connector designed for use with terminal blocks in industrial control and distribution systems. This 10-pole connector enables efficient potential distribution, reducing wiring time and improving clarity. Made from Wemid insulation material with a UL 94 V-0 flammability rating, it ensures safety and durability. The blue color aids in identification, and the plug-in design allows for easy installation without tools. Supplied in a pack of 20 pieces, it is ideal for building reliable electrical connections in demanding environments.

Advantages

Simplifies wiring by connecting multiple terminals in one step. Saves space and reduces labor costs. High-quality Wemid material provides excellent mechanical and thermal resistance. V-0 flammability rating ensures fire safety. Plug-in connection eliminates the need for special tools. Blue color coding helps distinguish circuits.

Suitable for

• Industrial control panels
• Distribution boards
• Automation systems
• Building infrastructure
• Machine building

Key specifications

• Product Type: Cross-connector
• Number of Poles: 10
• Compatible Cross-Section: 1.5 mm²
• Color: Blue
• Material: Wemid
• Flammability Rating: UL 94 V-0
• Rated Voltage (IEC): 500 V
• Rated Current (IEC): 17.5 A
• Connection Type: Plug-in
• Series: ZQV
• Packaging Quantity: 20 pieces
• Operating Temperature: -50 to +100 °C
• Pollution Degree: 3
• Standards: IEC 60947-7-1
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Compatible Terminal Block Series: Weidmüller W-Series, Z-Series
• Pitch: 5.0 mm

Recommendations

For optimal performance, use with Weidmüller W-Series or Z-Series terminal blocks. Ensure proper installation according to IEC 60947-7-1. Store in a dry environment.
