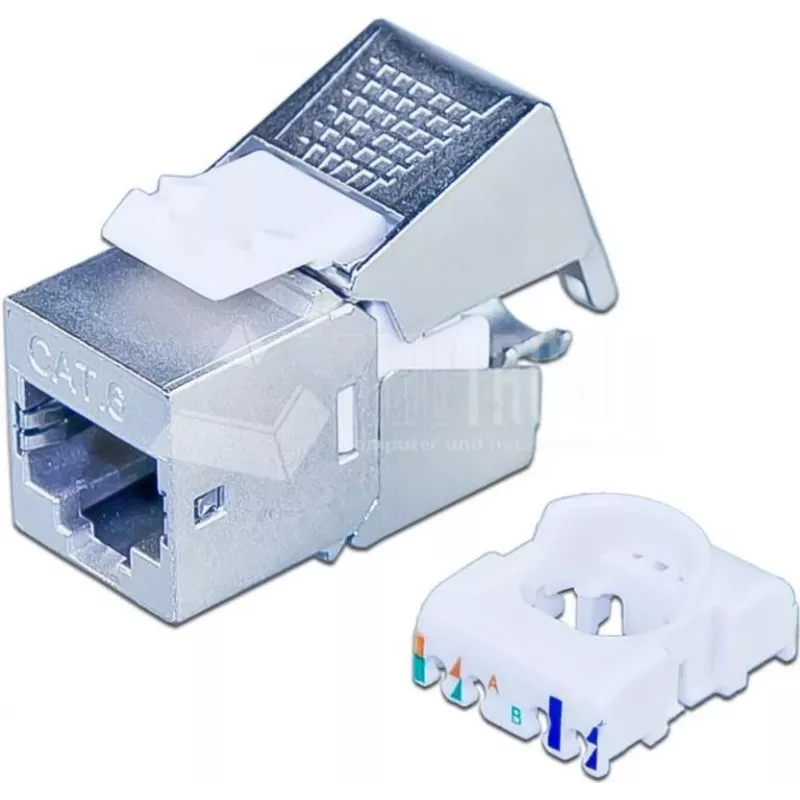

Wirewin WKS JACK STP KAT6 Cat.6 módulo jack Keystone STP RJ45

The SLIM WIREWIN WKS JACK STP KAT6 is a Cat.6 shielded keystone jack module that delivers Gigabit Ethernet performance up to 1000 Mbps in a compact, zinc die-cast housing. It provides a reliable RJ45 connection point for shielded twisted pair cabling in structured cabling systems.

Advantages

Gold-plated contacts and LSA+ termination ensure stable, low-loss connections. The shielded design reduces electromagnetic interference, making it suitable for high-speed data transmission. With over 750 mating cycles, it withstands frequent reconnections.

Suitable for

• Gigabit Ethernet networks in offices and data centers
• Shielded Cat.6 cabling installations
• Keystone patch panels, wall plates, and surface-mount boxes

Key specifications

• Category: Cat.6
• Shielding: STP (Shielded Twisted Pair)
• Data rate: 10/100/1000 Mbps
• Connector: RJ45 female, LSA+ punch-down
• Wiring: TIA/EIA 568A/B
• Conductor gauge: AWG 22-26
• Housing: zinc die-cast
• Contact plating: gold (50µ)
• PoE support: PoE, PoE+, PoE++

Recommendations

For best performance, pair with shielded Cat.6 cable and use proper grounding. Ideal for high-density installations where durability and signal integrity are critical.
