Zyxel XGS4600-32 gestionado L3 Gigabit Ethernet (10/100/1000) negro

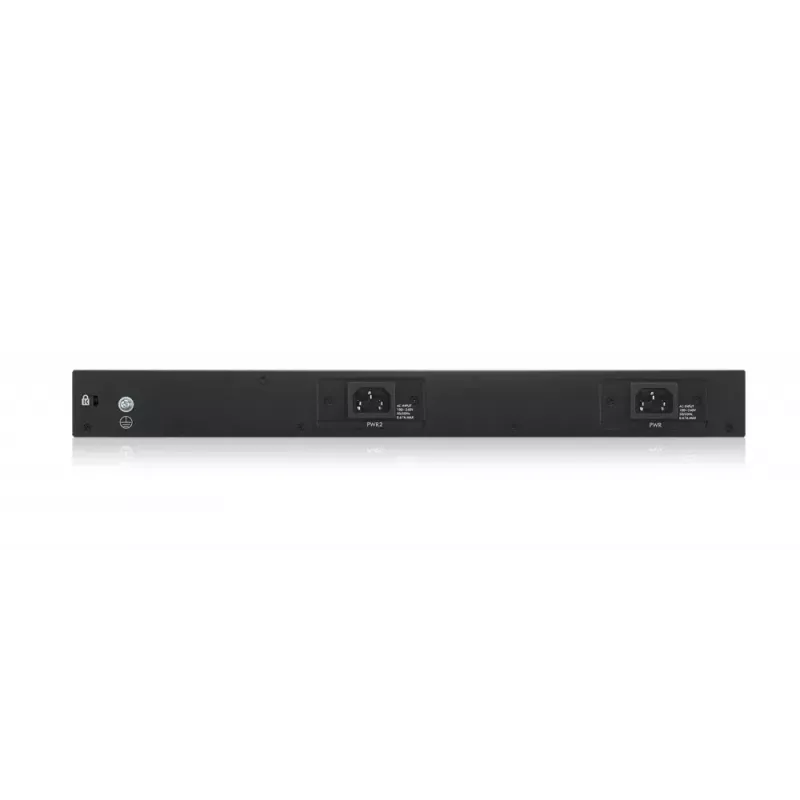

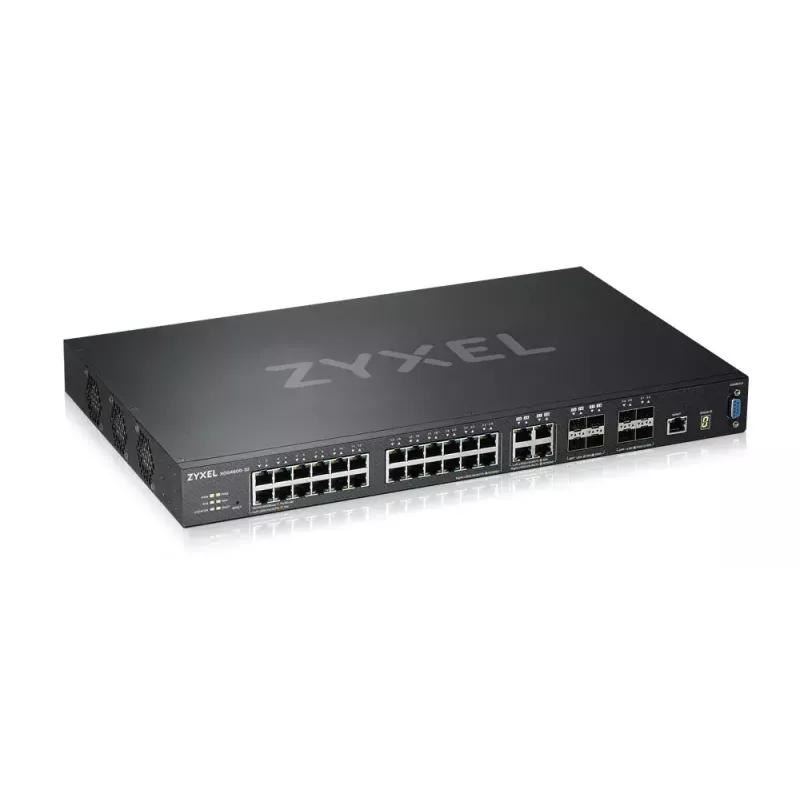

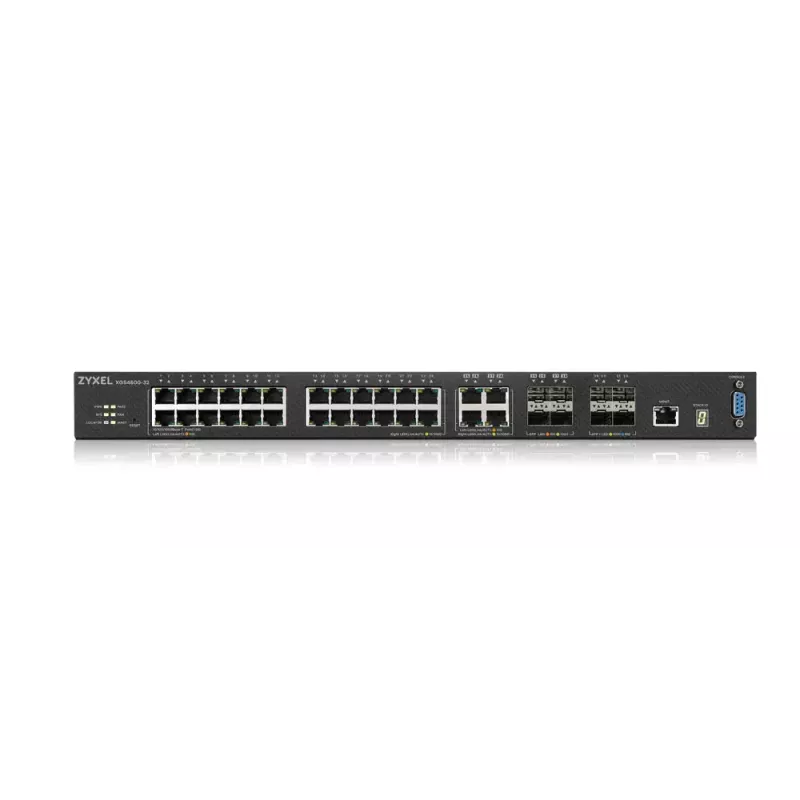

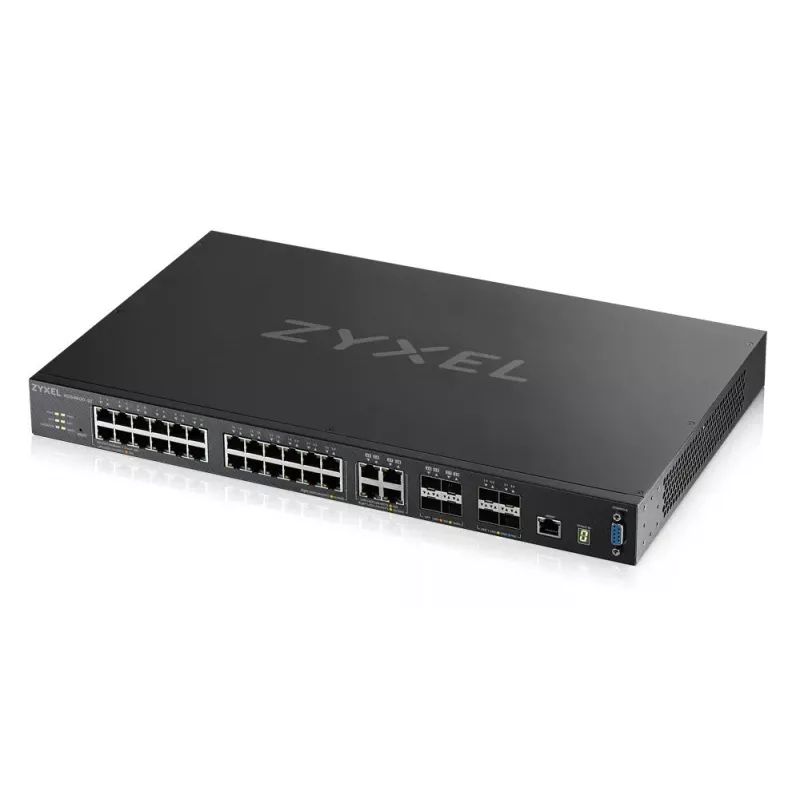

The Zyxel XGS4600-32 is a managed Layer-3 Gigabit Ethernet switch with 24 RJ-45 Gigabit ports and four SFP+ 10-Gigabit uplink slots, designed for bandwidth-intensive business environments. With a switching capacity of 136 Gbit/s and a MAC address table of 32,000 entries, the XGS4600-32 supports both advanced L2 switching and L3 routing to enable efficient cross-subnet communications and scalable network aggregation. Its rack-mountable, black chassis and carbon-fiber-style front panel provide a compact, professional appearance while supporting IPv4-to-IPv6 migration and standard management interfaces.

Advantages

The XGS4600-32 offers high-density Gigabit connectivity together with four integrated 10-Gigabit SFP+ slots for high-speed uplinks, enabling aggregation-layer performance without requiring separate expensive equipment. It supports physical stacking of up to four units through the SFP+ ports, providing increased port count, simplified management and ring-based redundancy for quick recovery if a stacking link fails. The switch provides advanced Layer-2 features plus dynamic Layer-3 routing when stacked, and supports standard management via CLI and an intuitive web GUI for configuration and monitoring. Built-in support for IPv6 ensures a clear upgrade path as networks evolve.

Suitable for (tasks / use cases)

• Network aggregation in hospitality venues and educational institutions
• High-bandwidth applications such as multimedia streaming, VoIP and video surveillance
• Rack-mounted enterprise or campus access/aggregation layers
• Environments requiring stackable switches with high availability and power redundancy

Key specifications

• Model: Zyxel XGS4600-32 (XGS4600-32-ZZ0102F)
• Ports: 24 x RJ-45 Gigabit (10/100/1000) + 4 x SFP+ (10G)
• Switching capacity: 136 Gbit/s
• MAC address table: 32,000 entries
• Management: CLI and web-based GUI
• Standards: IEEE 802.1D/Q/W, IEEE 802.1x/s/p/ad, IEEE 802.3/3u/3ab/3z/x/3az
• Stacking: up to 4 units via SFP+ direct-attach or transceivers (ring redundancy)
• Power: supports active-standby power redundancy
• Form factor / colour: rack-mountable / black
• Weight: 3.96 kg

How to use

Install the XGS4600-32 in a standard 19-inch rack and connect edge devices to the 24 Gigabit RJ-45 ports. Use the four SFP+ slots for 10-Gigabit uplinks to aggregation or core switches, or for stacking multiple XGS4600 units with direct-attach cables or compatible transceivers. Configure basic settings and VLANs through the web GUI or the CLI; enable dynamic routing and L3 features when the device is part of a stack to allow cross-subnet communication. Monitor status and performance via the built-in management interfaces and apply firmware updates as recommended by the manufacturer.

Recommendations

For high availability, deploy stacking across SFP+ ports with ring topology and configure active-standby power redundancy. Use the SFP+ uplinks for aggregation to reduce bottlenecks caused by bandwidth-intensive services such as video streaming and VoIP. Follow Zyxel firmware and configuration guidelines to maintain security and compatibility during IPv4 to IPv6 migration.
