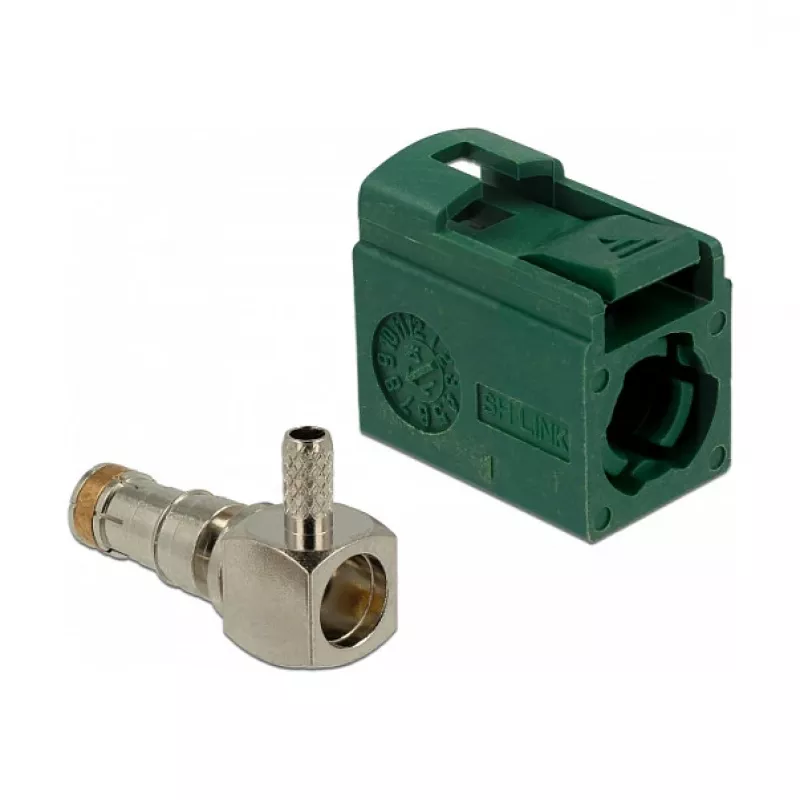

Conector coaxial DeLOCK 89717

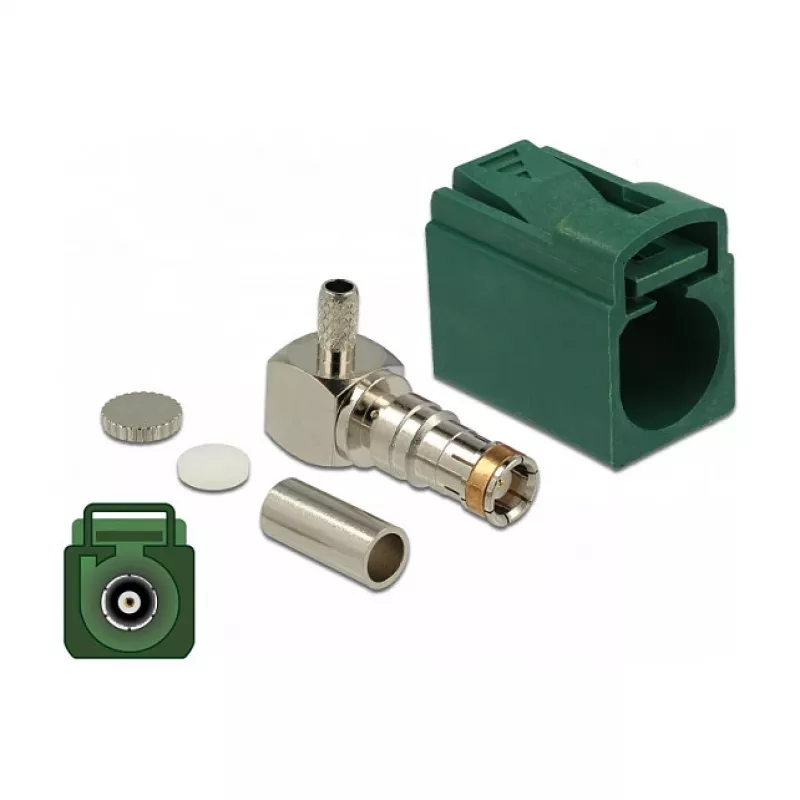

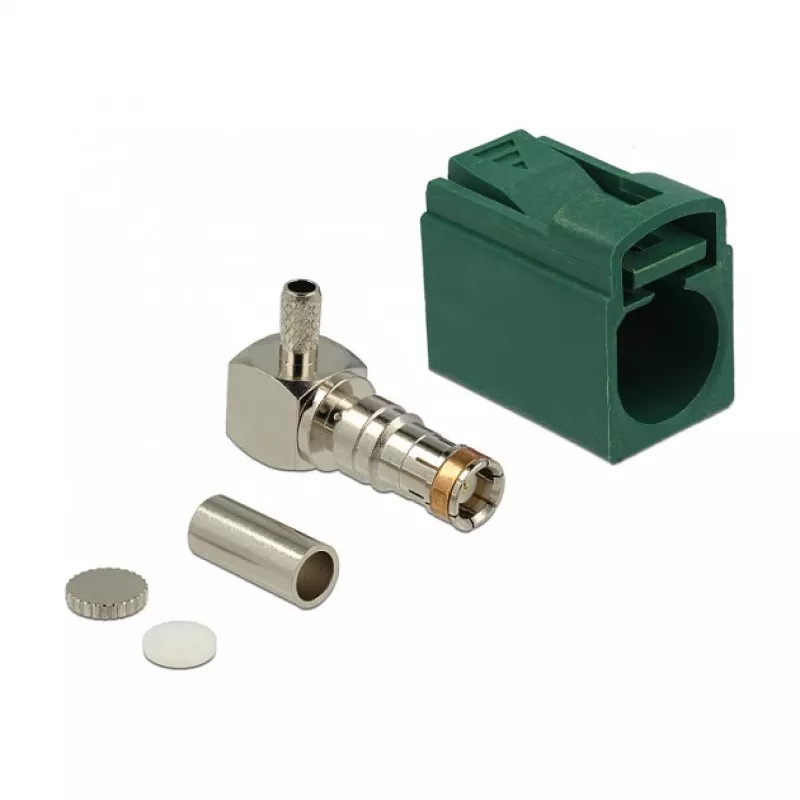

The DeLOCK 89717 coaxial connector is a FAKRA E male jack with a 90° angle designed for reliable connections in radio frequency applications. It measures 13.8 mm in width, 21.5 mm in depth and 9.5 mm in height, and is supplied in a polybag.

Advantages

The right-angle FAKRA E male design enables compact installations and easy cable routing. The compact dimensions make it suitable for tight spaces while maintaining a standard coaxial interface for RF signals. Supplied in a polybag for basic protection during storage and transport.

Suitable for

Key specifications

How to use

Mount the connector according to the device or cable manufacturer's instructions. Ensure the mating FAKRA E female counterpart is correctly aligned before applying force; insert until a secure mechanical connection is felt. Verify the RF connection and continuity with appropriate test equipment after installation.

Recommendations

Use the connector with matching FAKRA E female components and follow standard RF handling practices: avoid excessive bending of the cable near the connector, keep contacts clean, and use proper torque on any threaded or locking parts if applicable.
