Conector macho coaxial DeLOCK 89702

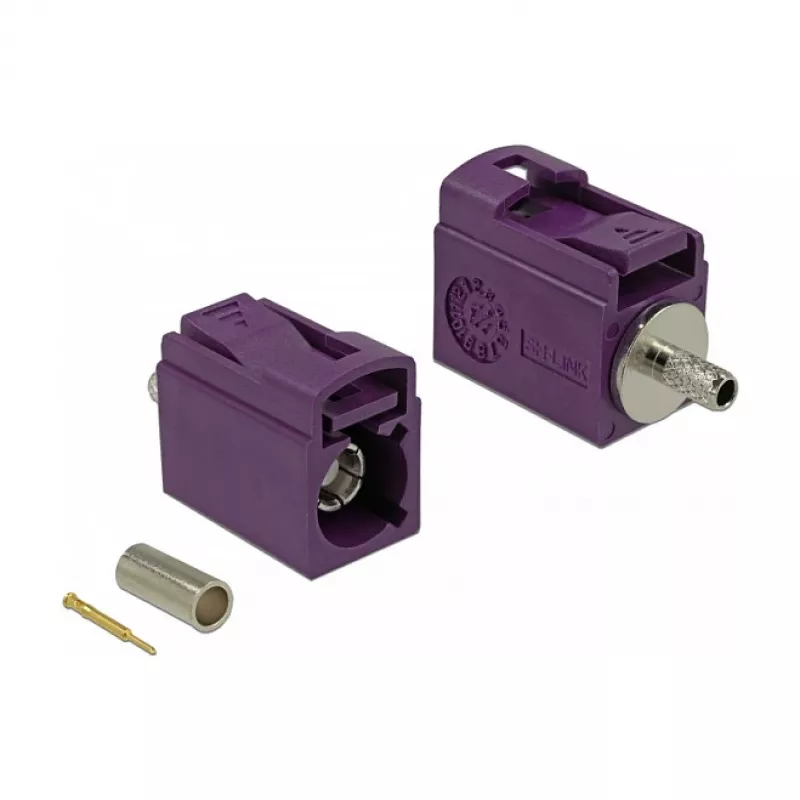

The DeLOCK 89702 coaxial connector is designed for reliable connections in radio frequency systems. It features a FAKRA D male connector with gold-plated contacts for improved conductivity and corrosion resistance. With compact dimensions (13.8 mm width, 21 mm depth, 9.5 mm height) and a stainless steel violet finish, the connector is supplied in a polybag for protection during storage and transport.

Advantages

The FAKRA D male interface with gold-plated contacts ensures stable signal transmission and reduced contact resistance. Its compact size allows installation in tight spaces typical for automotive and telecommunications equipment. The stainless steel construction and colour coding support durability and easy identification in cabling systems.

Suitable for

Key specifications

How to use

Align the FAKRA D male connector with the corresponding female socket and press until the latch engages to ensure a secure connection. Verify correct mating and avoid forcing mismatched connector types. Use appropriate cable preparations and shielding practices when integrating the connector into RF cabling assemblies.

Recommendations

For optimal performance, install the connector in environments free from excessive moisture and mechanical stress; verify pin alignment before insertion and use gold-plated contacts to maintain low contact resistance over time.
