ADELID RM-NT-08T Cuadro de distribución de superficie 8 módulos

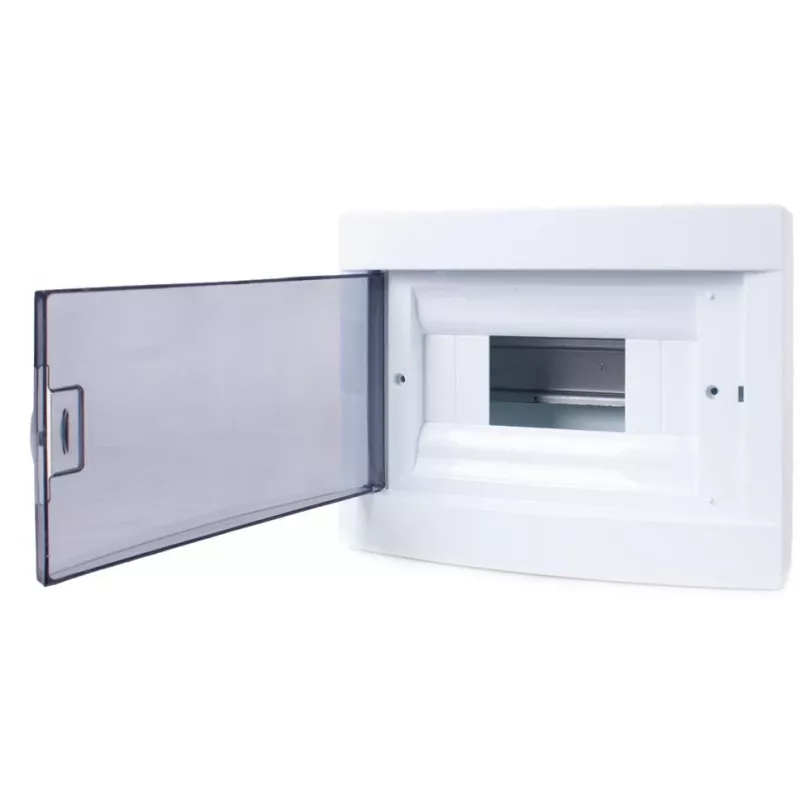

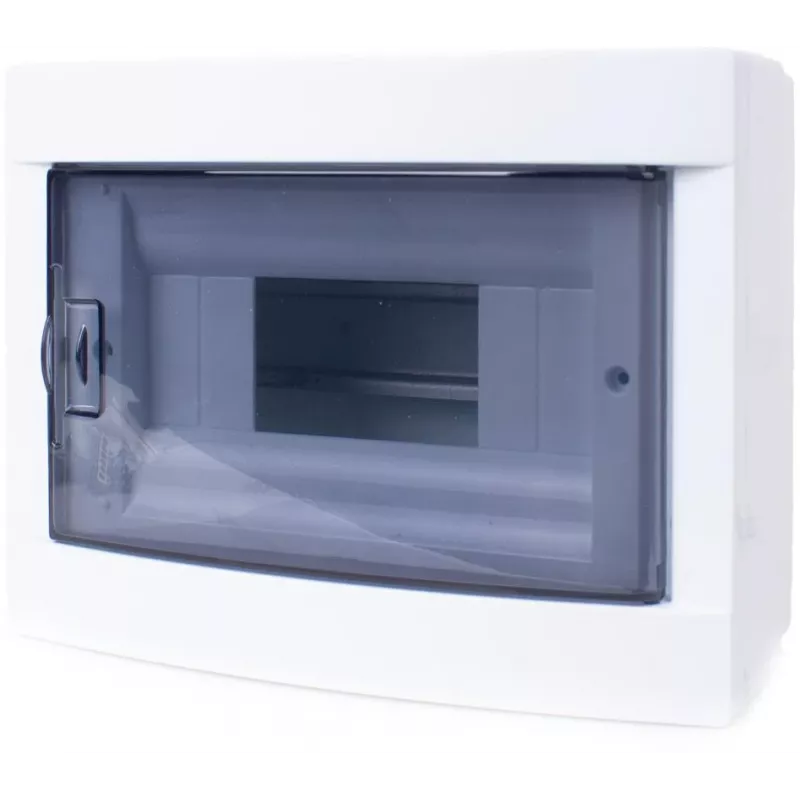

The ADELID RM-NT-08T is a high-quality surface-mounted distribution board designed for indoor electrical installations. With 8 modules and 1 row, it provides a compact and efficient solution for housing circuit breakers, RCDs, and other modular devices. The enclosure is made of durable ABS plastic, featuring a transparent smoked hinged door for easy monitoring and access. Compliant with PN-EN 60439-3 and PN-EN 62208 standards, this board ensures reliable performance and safety.

Advantages

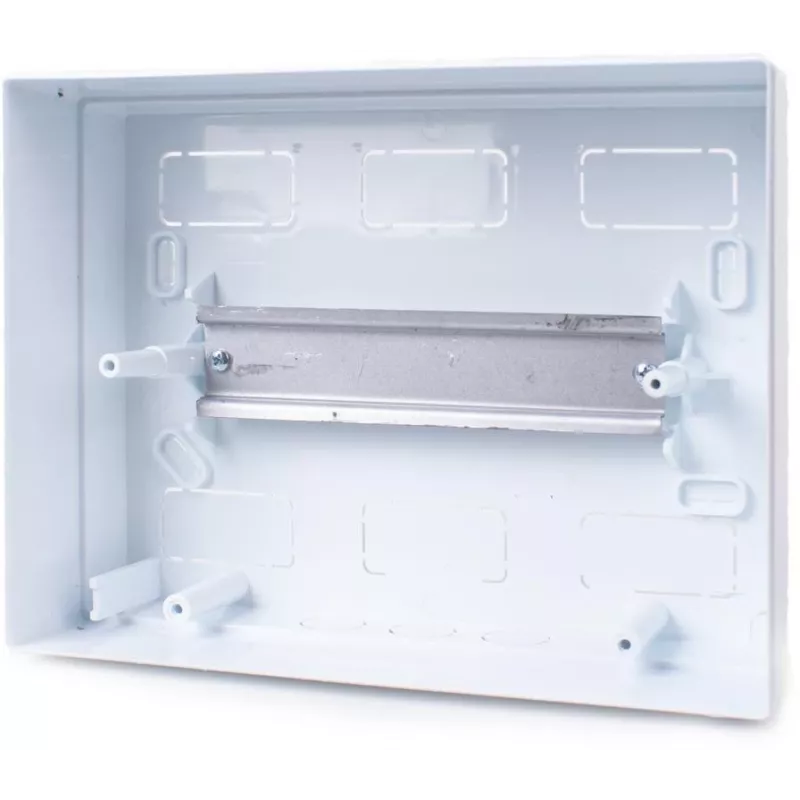

Robust ABS plastic construction with IP40 and IK07 protection ratings ensures durability and safety. The transparent smoked door allows visual inspection without opening. Pre-punched knockouts simplify cable entry. Includes DIN rail and N+PE terminal blocks for quick installation.

Suitable for

• Residential and commercial electrical distribution
• Indoor surface-mounted installations
• Housing modular protection devices up to 63A

Key specifications

• Mounting Type: Surface-mounted
• Number of Modules: 8
• Number of Rows: 1
• Enclosure Material: ABS Plastic
• Door Type: Transparent, Smoked, Hinged
• IP Rating: IP40
• IK Rating: IK07
• Color: White (body), Smoked Grey (door)
• DIN Rail Included: Yes
• Terminal Blocks Included: N+PE (Neutral and Earth)
• Rated Insulation Voltage (Ui): 400V AC
• Rated Current (In): 63A
• Operating Temperature Range: -5°C to +40°C
• Standards Compliance: PN-EN 60439-3, PN-EN 62208
• Protection Class: II (Double Insulation)
• Glow Wire Test Temperature: 650°C
• Application Environment: Indoor

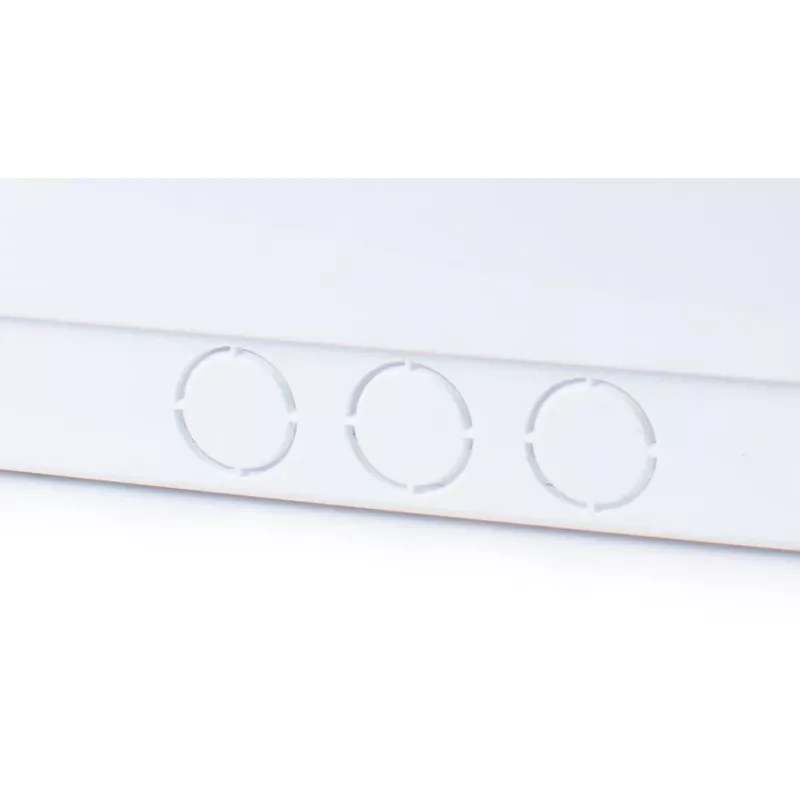

• Cable Entry: Pre-punched knockouts

Recommendations

For optimal performance, use with modular devices rated up to 63A. Ensure proper installation by a qualified electrician. Suitable for indoor use only.
