ADELID RM-NT-18T Cuadro de distribución de superficie 18 módulos

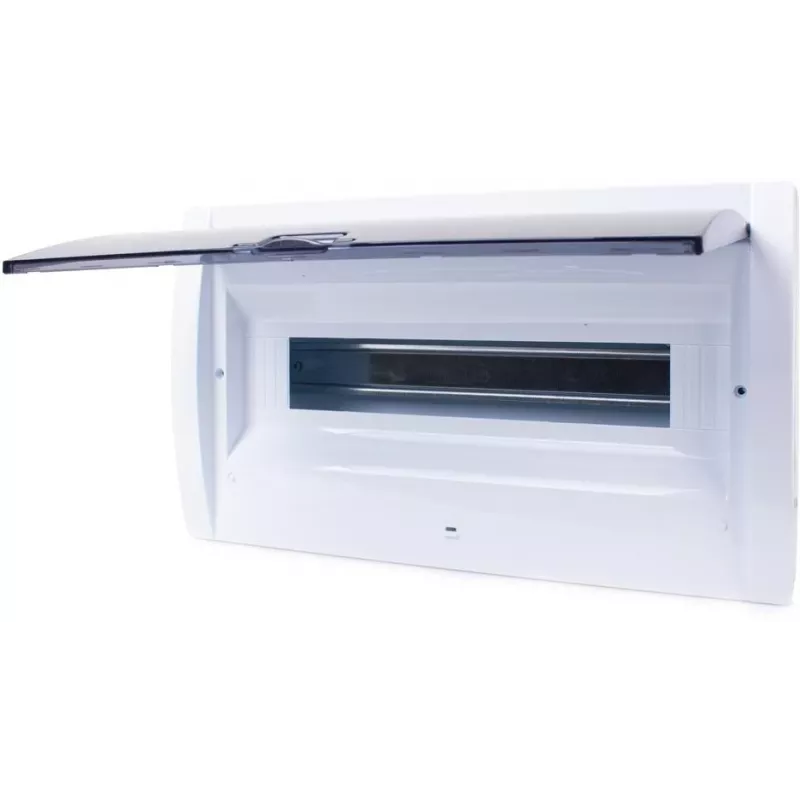

The ADELID RM-NT-18T is a high-quality surface-mounted distribution board designed for indoor electrical installations. With 18 module spaces in a single row, it provides ample capacity for circuit breakers, RCDs, and other modular devices. The enclosure is made of durable ABS plastic with a transparent polycarbonate door, offering IP40 protection and IK07 impact resistance. Ideal for residential and commercial applications, this distribution board ensures safe and organized electrical distribution.

Advantages

Robust construction with ABS plastic and transparent PC door; easy installation and maintenance; includes N+PE terminal blocks; complies with EN 62208 standard.

Suitable for

• Residential electrical distribution
• Commercial building installations
• Industrial control panels

Key specifications

• Mounting Type: Surface-mounted
• Number of Modules: 18
• Number of Rows: 1
• IP Protection Rating: IP40
• IK Impact Rating: IK07
• Enclosure Material: ABS Plastic
• Door Material: Transparent PC (Polycarbonate)
• Color: White (RAL 9003)

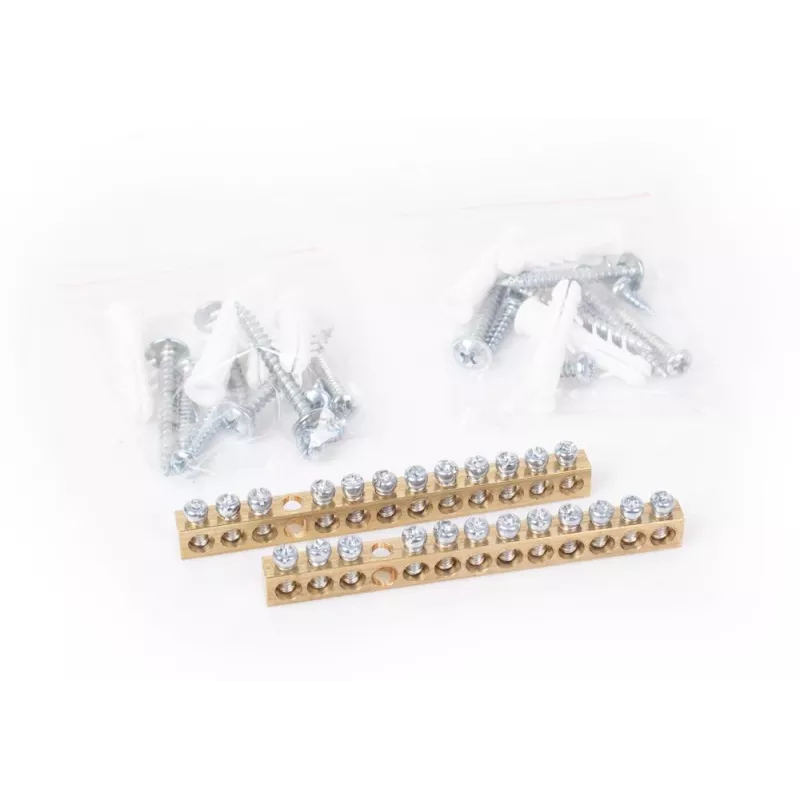

• Terminal Blocks Included: N+PE
• Rated Insulation Voltage (Ui): 500 V
• Rated Operational Voltage (Ue): 230/400 V AC
• Glow Wire Test Temperature: 650 °C
• Operating Temperature Range: -5°C to +60°C
• Standards Compliance: EN 62208
• Application: Indoor

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. Use only compatible modular devices rated for the specified voltage and current.
