ADELID RM-NT-24T Cuadro de distribución de superficie 24 módulos (2x12) IP40 IK07

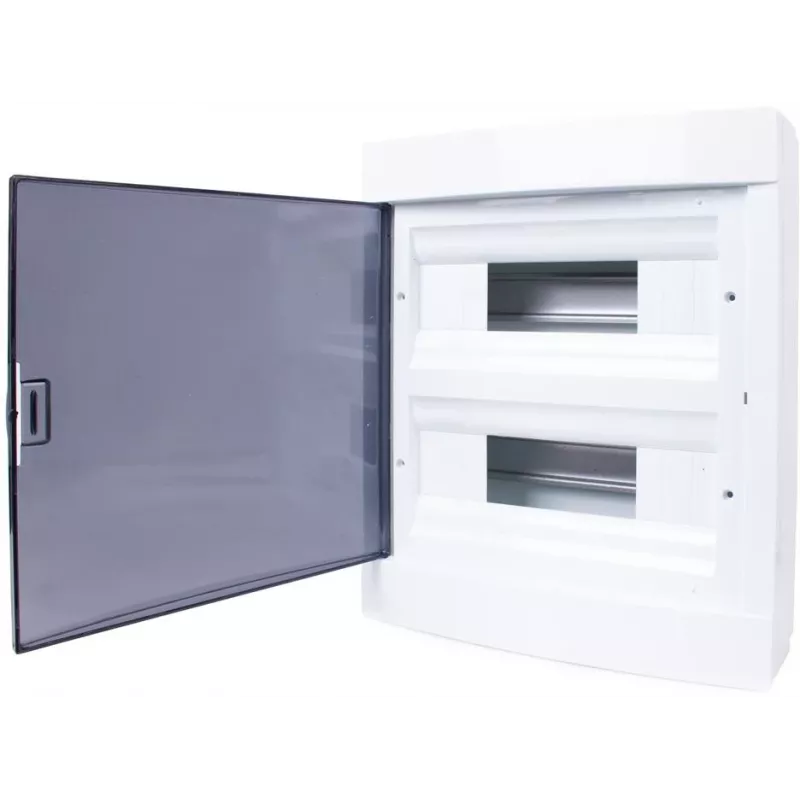

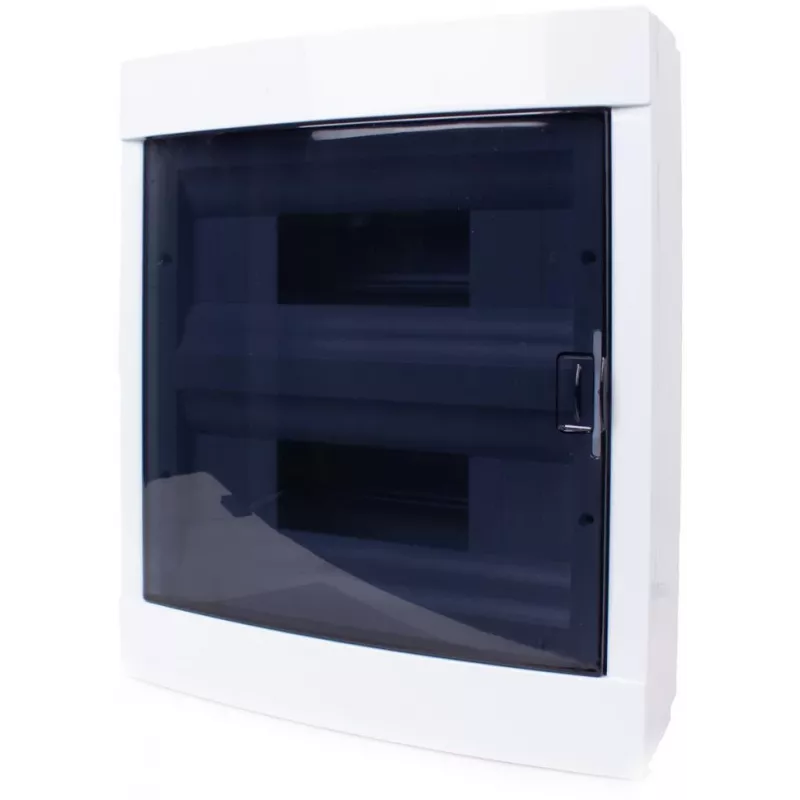

The ADELID RM-NT-24T is a high-quality surface-mounted distribution board designed for indoor electrical installations. With 24 modules arranged in 2 rows of 12, it provides ample space for circuit breakers, RCDs, and other modular devices. The board features a white ABS plastic body and a transparent smoked door, offering a modern look while allowing easy visual inspection of the installed components.

Advantages

This distribution board combines robust construction with practical design. The IP40 rating protects against solid objects larger than 1mm, while IK07 impact resistance ensures durability. The included neutral and earth terminals simplify wiring, and the pre-installed DIN rail allows quick mounting of modular devices. The transparent door enables status checks without opening, enhancing safety.

Suitable for

• Residential and commercial electrical distribution
• Indoor use in dry environments
• Installations requiring up to 24 modules
• Surface mounting on walls or structures

Key specifications

• Type: Surface-mounted distribution board
• Number of Modules: 24 (2 rows of 12)
• Material: ABS Plastic
• Door: Transparent smoked
• IP Rating: IP40
• IK Rating: IK07
• Rated Voltage: 400V AC
• Rated Current (Busbar): 63A
• Operating Temperature: -5°C to +40°C
• Mounting: Surface
• Colour: White body, smoked door

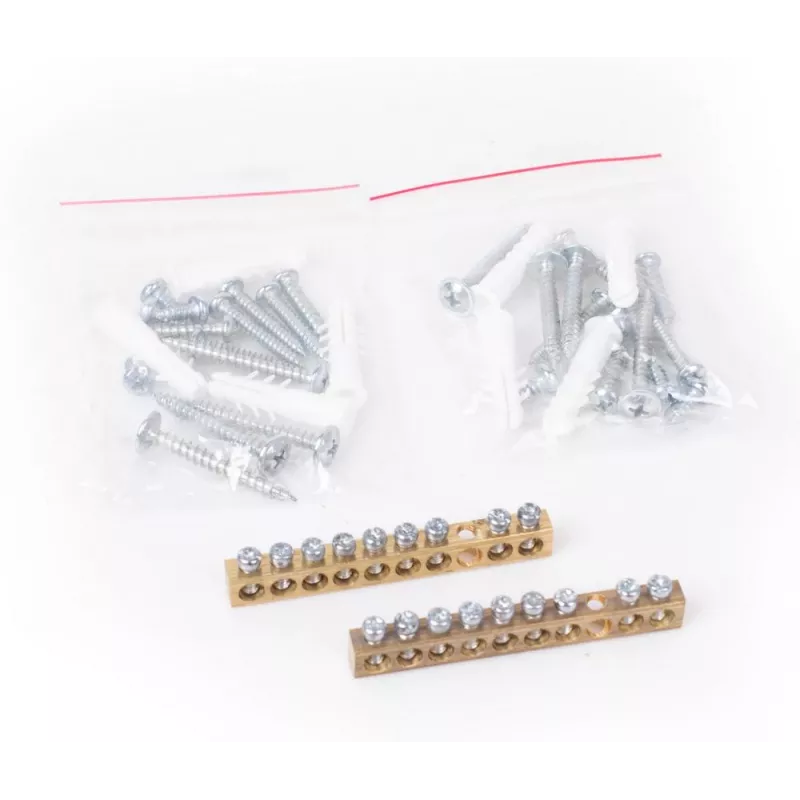

• Terminals: Neutral (N) and Earth (PE) included

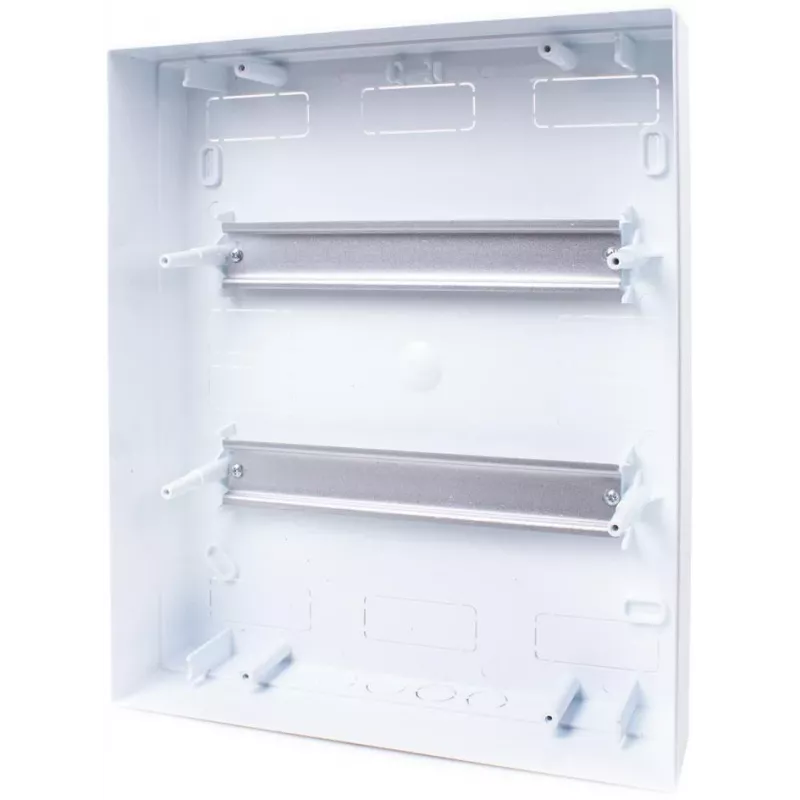

• DIN Rail: Yes, included
• Glow-wire Test: 650°C
• Insulation Class: Class II (Double Insulated)

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. Use only with compatible modular devices rated for 63A busbar. Suitable for indoor use only; avoid exposure to moisture or extreme temperatures.
