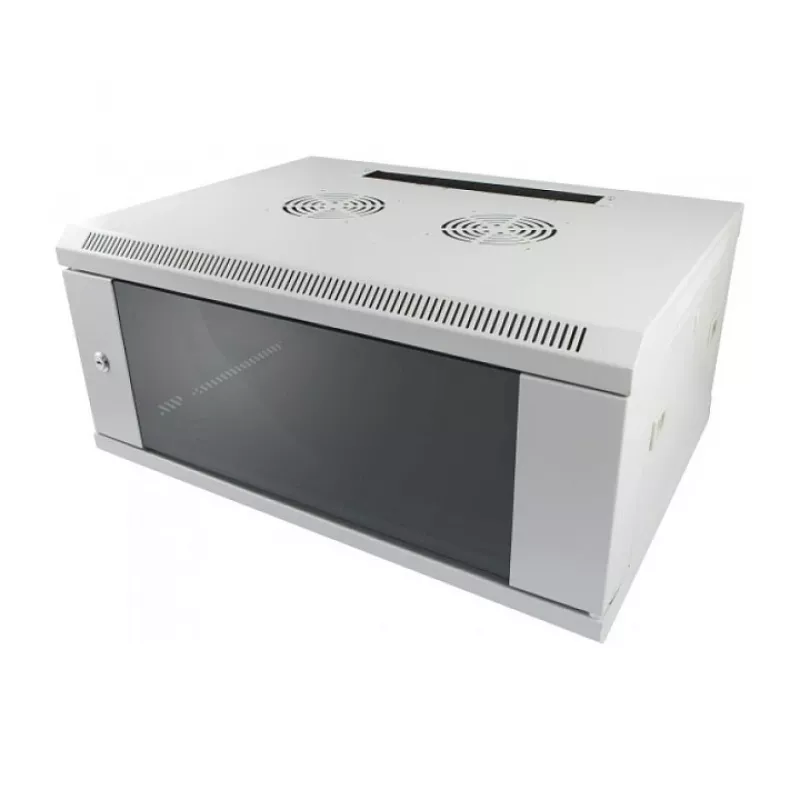

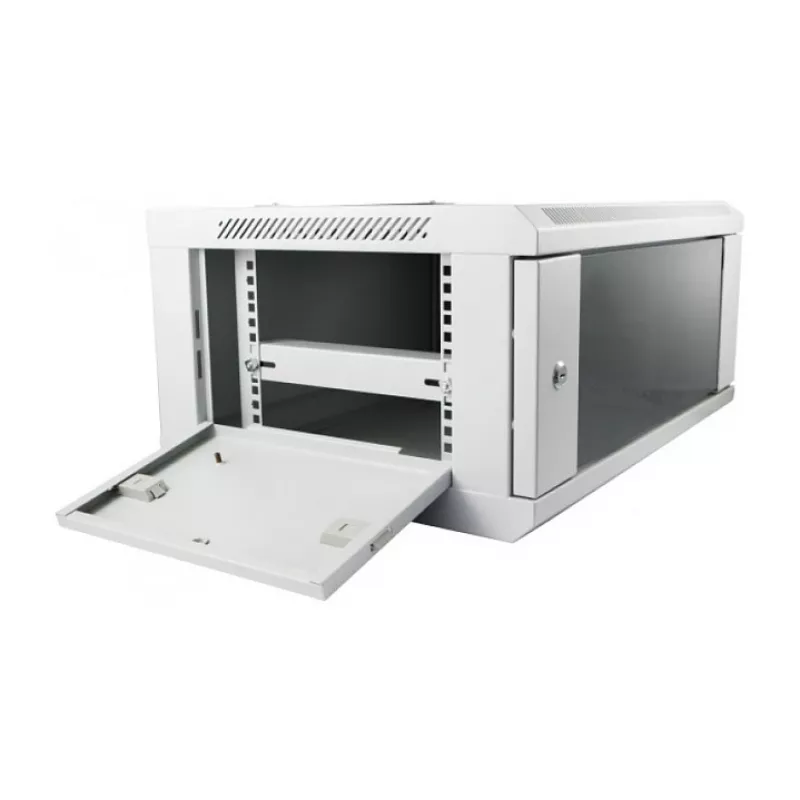

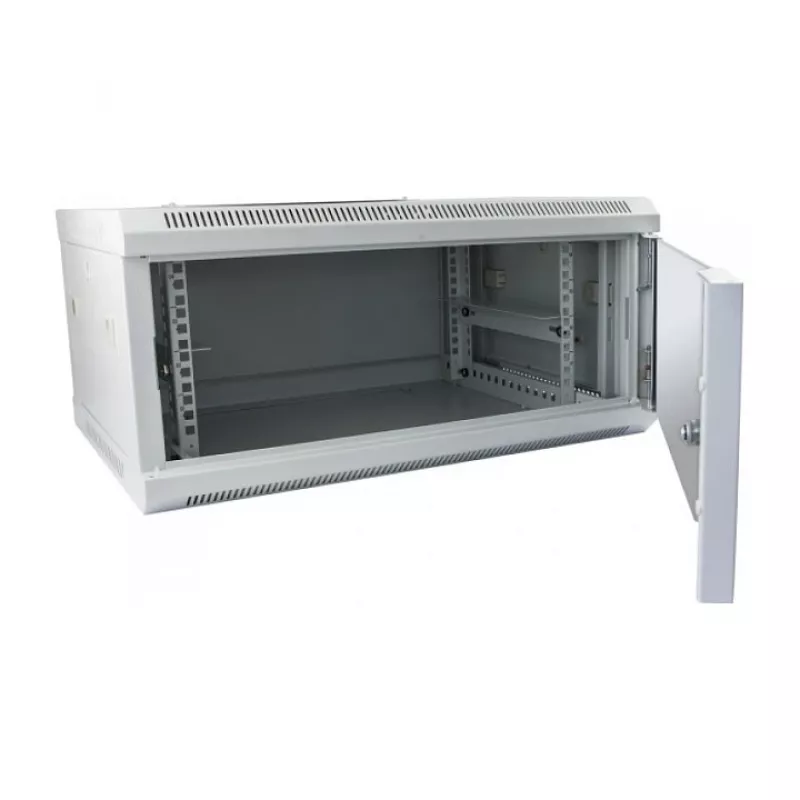

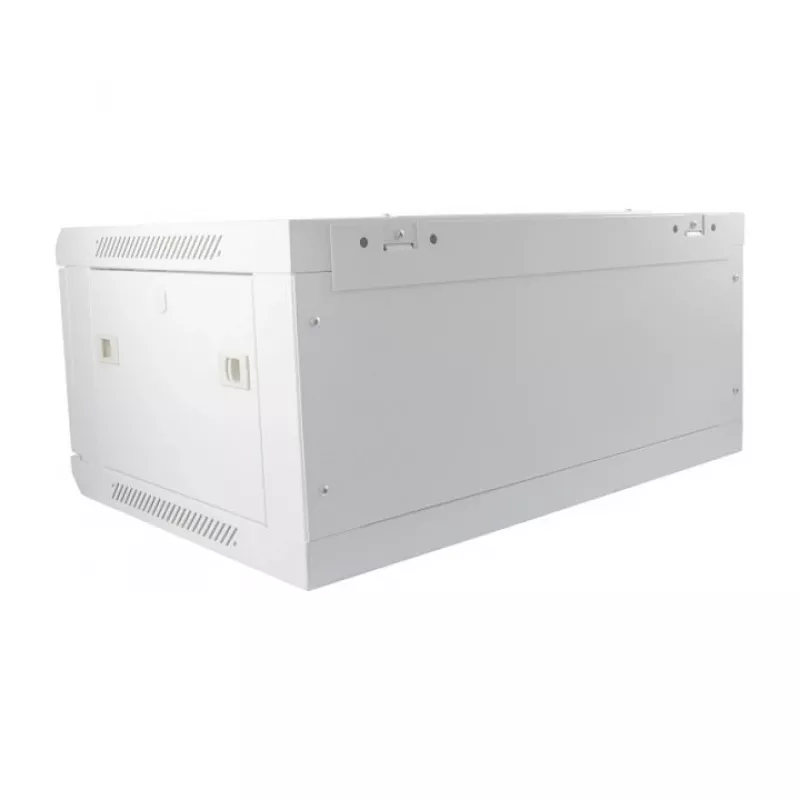

ALLNET ALL-SMC6406GRAU armario de red de pared 19" 6U gris claro serie SMC

The ALLNET ALL-SMC6406GRAU is a high-quality 19-inch wall mount network cabinet from the SMC-Series, designed for secure and organized installation of network equipment. With 6U of rack space and a depth of 450 mm, this single-section cabinet is ideal for small to medium-sized network setups in offices, server rooms, or industrial environments.

Advantages

Robust SPCC cold rolled steel construction with powder coating ensures durability and longevity. The tempered glass front door with lock provides security while allowing easy monitoring of equipment. Passive ventilation through perforated top and bottom panels ensures adequate airflow without active cooling. Depth-adjustable mounting rails offer flexibility for various equipment sizes.

Suitable for

• Network switches, patch panels, and routers
• Small server installations
• Telecommunication and IT infrastructure
• Wall-mounted network distribution points

Key specifications

• Rack Standard: 19 inch
• Rack Units: 6U
• Cabinet Type: Wall Mount Network Cabinet
• Construction: Single-section
• External Dimensions (W x D x H): 600 x 450 x 370 mm
• Color: Light Grey (RAL 7035)
• Front Door: Tempered Glass with Lock
• Side Panels: Fixed
• Material: SPCC Cold Rolled Steel
• Surface Finish: Powder Coated
• Load Capacity: 60 kg
• Cable Entry: Top and Bottom with knock-out panels
• Ventilation: Passive (perforated top/bottom)
• Mounting Rails: 2 pairs, 19-inch, depth-adjustable
• Protection Class: IP20
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with ALLNET patch panels and cable management accessories. Ensure proper wall mounting on a sturdy surface. The cabinet is suitable for environments with moderate dust and humidity levels.
