ALLNET Armario de pared para carril DIN T223mm gris claro IP55 serie SO-DIN

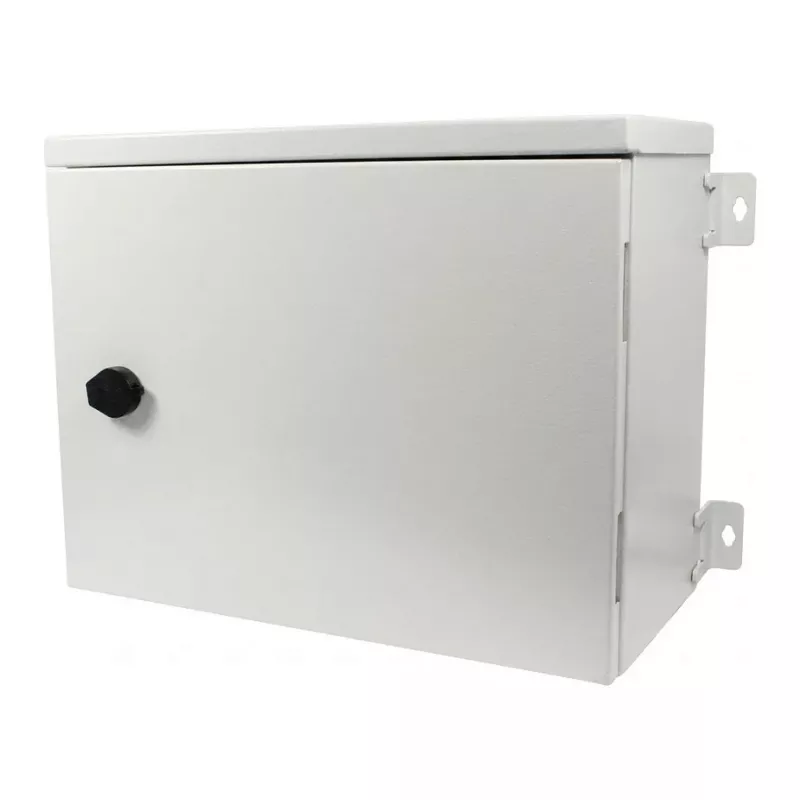

The ALLNET DIN-RAIL Wall Mount Enclosure from the SO-DIN Series offers a robust and secure housing solution for industrial, commercial, and IT infrastructure applications. With an IP55 rating, it protects sensitive equipment from dust and water jets, while the light grey (RAL 7035) powder-coated steel construction ensures durability and corrosion resistance.

Advantages

This enclosure features a swivel lever lock with half-profile cylinder for secure access, pre-installed DIN rails for easy mounting of modular components, and flange plates for organized cable entry. Its compact design (400x400x223 mm) saves space while accommodating a variety of devices.

Suitable for

• Industrial control systems
• Commercial building automation
• IT and network infrastructure
• Security and surveillance equipment

Key specifications

• Enclosure Type: Wall Mount Enclosure
• Mounting Compatibility: DIN Rail (35mm)
• Ingress Protection: IP55
• External Dimensions: 400 x 400 x 223 mm (W x H x D)
• Material: Steel Sheet, Powder-Coated
• Color: Light Grey (RAL 7035)
• Number of Doors: 1
• Locking System: Swivel Lever Lock with Half-Profile Cylinder
• DIN Rails Included: 3
• Cable Management: Flange Plates for Cable Entry
• Product Series: ALLNET SO-DIN Series

Recommendations

For optimal installation, use appropriate wall anchors and ensure proper grounding. The enclosure is designed for indoor use; for outdoor applications, additional weatherproofing may be required.
