ALLNET SMB6609 armario de red de pared 19" 9U 600mm de profundidad negro

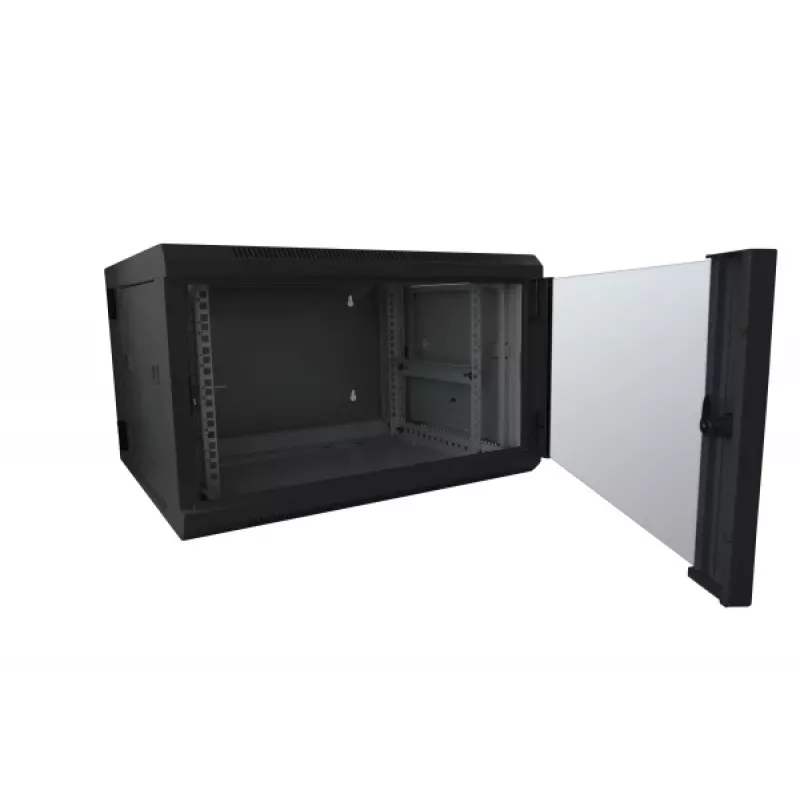

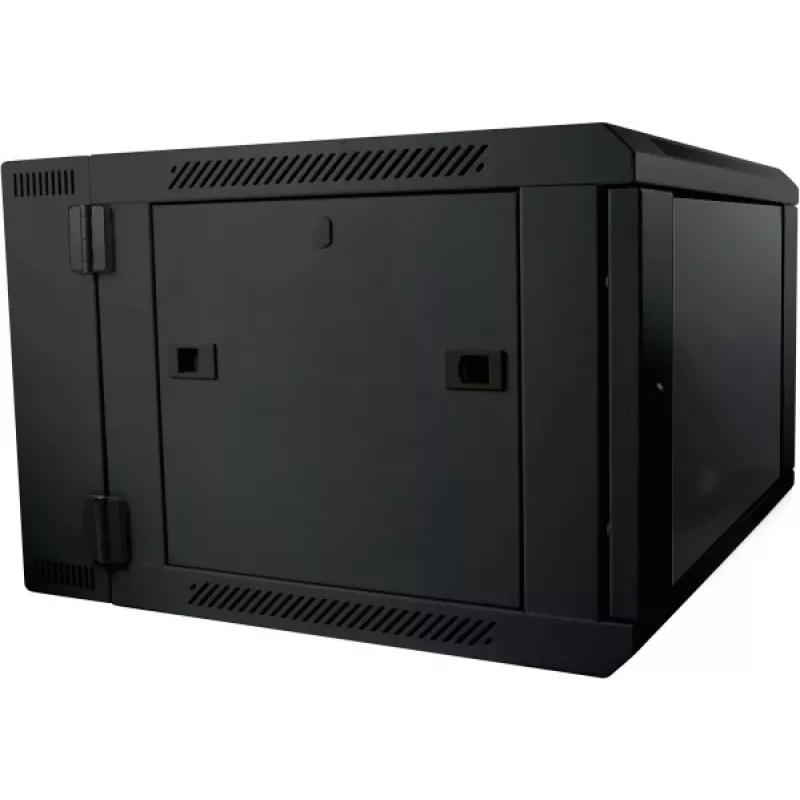

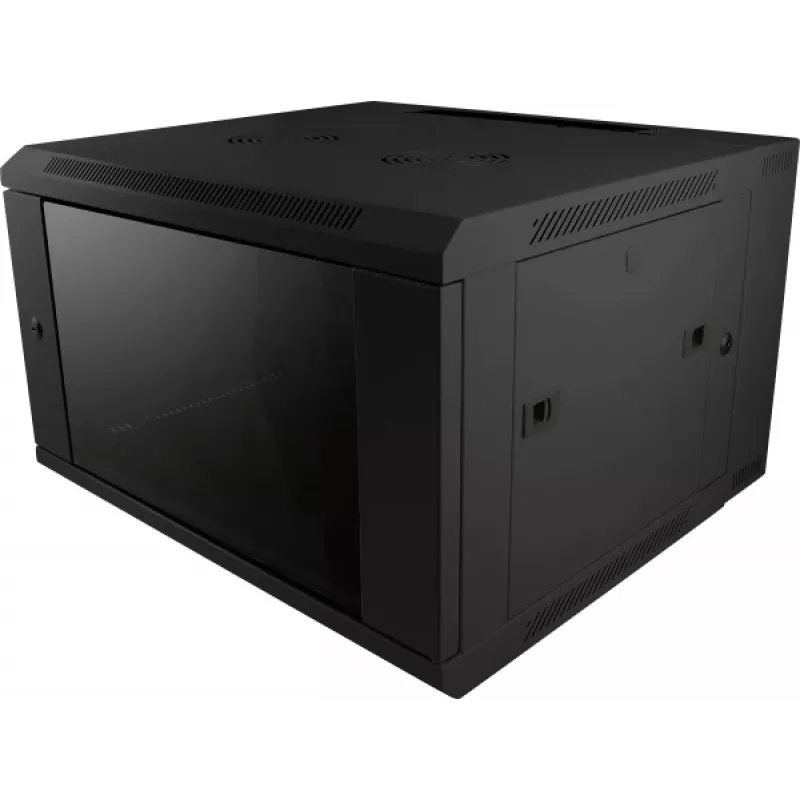

The ALLNET SMB6609 is a high-quality 9U wall mount network cabinet from the SMB series, designed for professional network installations. With a 19-inch width and 600mm depth, this 2-part cabinet features a swing-out rear section for easy access and cable management. The lockable safety glass front door and removable side panels provide security and flexibility. Constructed from durable steel sheet with a black RAL 9005 finish, it supports a maximum load of 60 kg and includes pre-punched cable entries at top and bottom. Ideal for server rooms, offices, and data centers requiring a compact yet robust enclosure.

Advantages

Space-saving wall mount design with 9U capacity. Swing-out rear section simplifies installation and maintenance. Lockable glass door and side panels ensure equipment security. Adjustable 19" mounting rails accommodate various depths. Ventilation preparation allows for active cooling.

Suitable for

• Network switches, patch panels, and small servers
• Office environments with limited floor space
• IT installations requiring organized cable management

Key specifications

• Rack Type: Wall Mount Cabinet
• Rack Units: 9U
• Rack Width: 19 inches
• External Dimensions (WxDxH): 600 x 600 x 500 mm
• Color: Black (RAL 9005)
• Material: Steel sheet
• Front Door: Lockable safety glass
• Side Panels: Removable and lockable

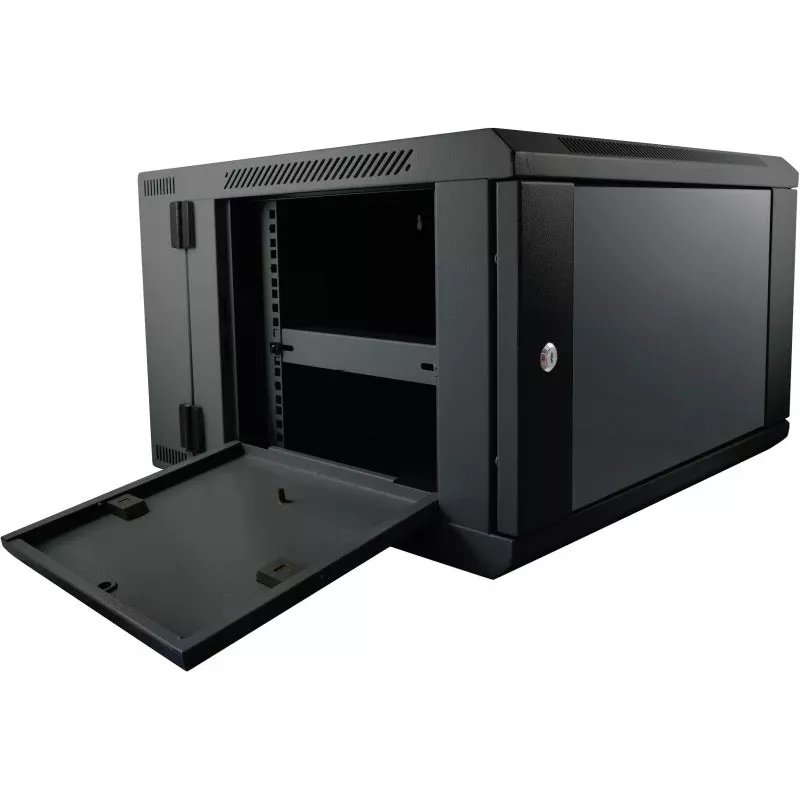

• Rear Section: Swing-out and lockable
• Cable Entry: Top and bottom (pre-punched)
• Ventilation: Prepared for fan unit (top)
• Max. Load Capacity: 60 kg
• Protection Class: IP20
• Included Accessories: Mounting material, 2 keys for front door, 2 keys for side/rear panels

Recommendations

For optimal performance, ensure proper ventilation and use cable management accessories. The cabinet is suitable for passive equipment; active cooling may be required for high-density installations.
