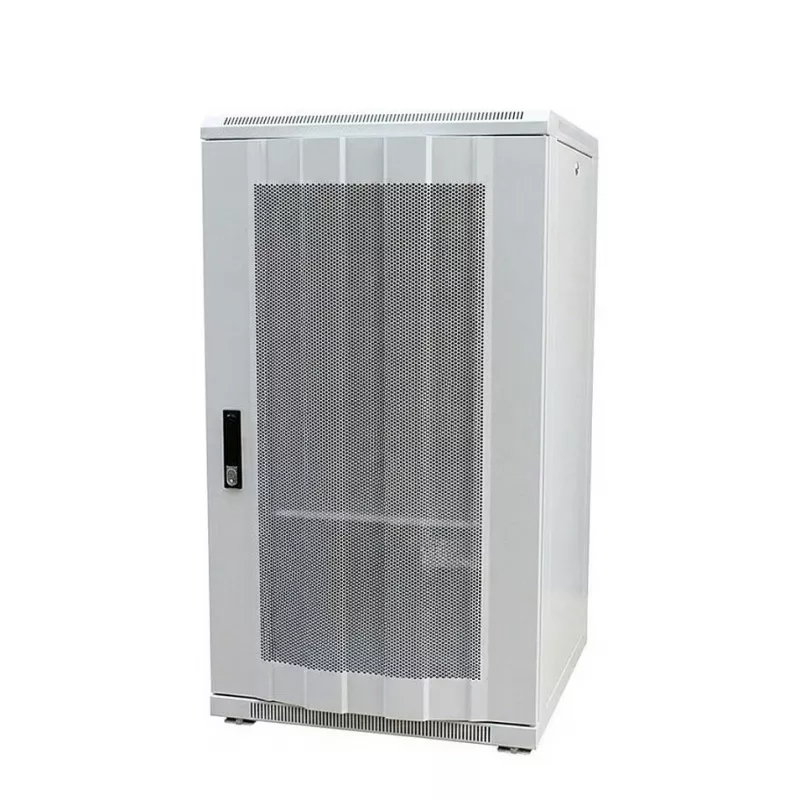

ALLNET SNB Series 22U 19" Rack de red 600x1200mm puertas de acero perforadas gris claro (RAL 7035)

The ALLNET SNB-Series 22U network cabinet offers a robust and secure housing solution for your 19-inch rack-mount equipment. With a width of 600 mm and a depth of 1200 mm, this freestanding cabinet provides ample space for servers, switches, patch panels, and other network components. The perforated steel doors (front and rear) ensure optimal airflow for passive cooling, while the adjustable 19-inch mounting rails allow flexible equipment installation. The cabinet is pre-assembled and features removable, lockable side panels for easy access. Finished in light grey (RAL 7035), it blends seamlessly into any server room or data center environment.

Advantages

• High static load capacity of 800 kg supports heavy equipment.
• Perforated doors with ~80% perforation provide excellent ventilation.
• Adjustable mounting rails accommodate various equipment depths.
• Pre-assembled design saves installation time.
• Lockable doors and side panels enhance security.
• Includes adjustable leveling feet and heavy-duty castors for stability and mobility.

Suitable for

• Data centers and server rooms requiring reliable 19-inch rack infrastructure.
• Network cabinets for housing servers, switches, patch panels, and UPS systems.
• IT professionals seeking a cost-effective, high-quality enclosure.

Key specifications

• Rack Standard: 19 inch
• Rack Units: 22U
• External Dimensions (WxDxH): 600 x 1200 x 1166 mm
• Static Load Capacity: 800 kg
• Front Door: Perforated steel door (approx. 80% perforation)
• Rear Door: Perforated steel door (approx. 80% perforation)
• Side Panels: Removable, lockable
• Material: Steel
• Color: Light Grey (RAL 7035)
• Cable Entry: Top and bottom with brush strips
• Mounting Rails: Adjustable 19" profile rails (front and rear)
• Protection Class: IP20
• Ventilation: Passive via perforated doors; active fan units optional
• Locking System: Single-point locking for doors, key included
• Feet/Castors: Adjustable leveling feet and heavy-duty castors
• Assembly State: Pre-assembled
• Compliance: RoHS, CE

Recommendations

For optimal cable management, consider using ALLNET cable management panels and patch panels. To enhance cooling, optional fan units can be installed in the top or side panels. This cabinet is ideal for medium to large network installations requiring reliable equipment protection and airflow.
