Antena de red DeLOCK 88984

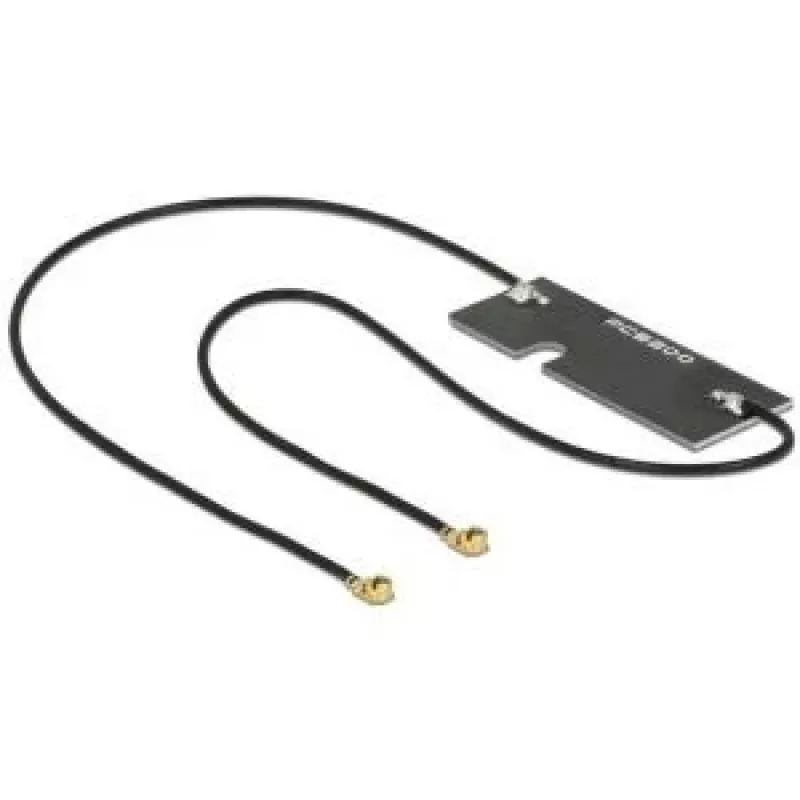

The DeLOCK 88984 network antenna is a compact twin WLAN antenna designed for internal integration. It provides a maximum gain of 5 dBi and covers the 2.4–2.5 GHz and 5.15–5.82 GHz frequency bands, supporting IEEE 802.11a/b/g/n/ac/h standards. The antenna includes two MHF / U.FL compatible connectors and a 0.15 m coaxial cable, with small dimensions (13.5 × 38.2 × 1.6 mm) suitable for installation in space-constrained devices.

Advantages

The antenna offers dual-band coverage and a 5 dBi gain for improved wireless performance in client devices or embedded systems. Its MHF / U.FL compatible connections and short coaxial cable simplify integration into compact enclosures. The small form factor and black colour make it unobtrusive inside devices while maintaining compatibility with common Wi‑Fi standards.

Suitable for

Key specifications

How to use

Open the device enclosure according to the manufacturer’s instructions, locate the MHF / U.FL connector points and carefully attach the antenna’s MHF / U.FL plugs. Route the 0.15 m coaxial cable to avoid sharp bends and secure the antenna in the intended position inside the housing. Reassemble the device and verify wireless operation and signal levels using appropriate network diagnostics.

Recommendations

For optimal performance, position the antenna away from large metal surfaces and high‑noise electronic components. When replacing or installing the antenna, handle MHF / U.FL connectors gently to avoid damage; use compatible mating connectors and verify compliance with local wireless regulations.
