Antena de red DeLOCK 89014

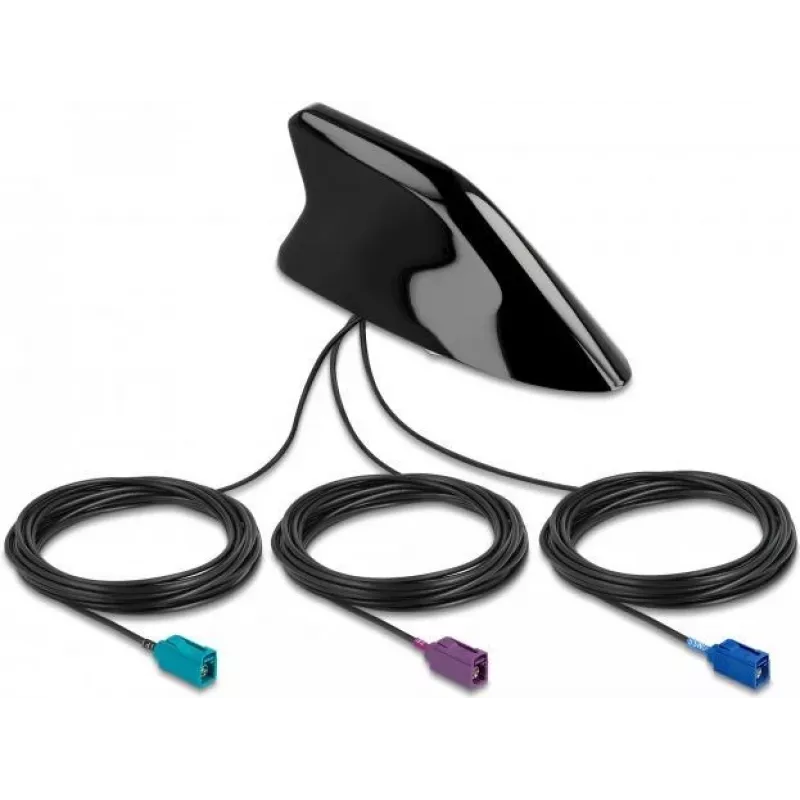

The DeLOCK 89014 multiband shark-fin antenna is designed for mounting on a car roof to provide reception for GPS/GALILEO, 2.4 GHz WLAN and common LTE bands. The antenna has a 50 Ω impedance, linear polarization and an IP67 rating for dust and water protection, making it suitable for both outdoor and indoor installations where a roof-mounted vehicle antenna is required.

Advantages

The compact shark-fin design combines aerodynamic stability with a modern appearance and durable construction. With built-in GPS patch functionality for GALILEO and GPS, coverage of the 2.4 GHz WLAN band and support for multiple LTE bands, the antenna delivers multi-service reception in a single enclosure. The 50 Ω impedance and linear polarization ensure compatibility with standard RF equipment, while the IP67 rating provides reliable operation in harsh weather.

Suitable for

Key specifications

How to use

Mount the antenna on the vehicle roof according to the vehicle manufacturer’s instructions and route the cable into the cabin or to the equipment to be connected. Connect the RF cable to the appropriate antenna input of the GPS receiver, WLAN device or LTE modem. Ensure the mating connector and cable are compatible with 50 Ω systems. After installation, verify signal reception and adjust position or grounding if necessary for optimal performance.

Recommendations

For best results, install the antenna in a central, unobstructed roof position and use quality 50 Ω coaxial cable and compatible connectors. Avoid placing metallic objects directly around the antenna base and ensure proper sealing at the cable entry point to maintain IP67 protection.
