Antena DeLOCK 89604

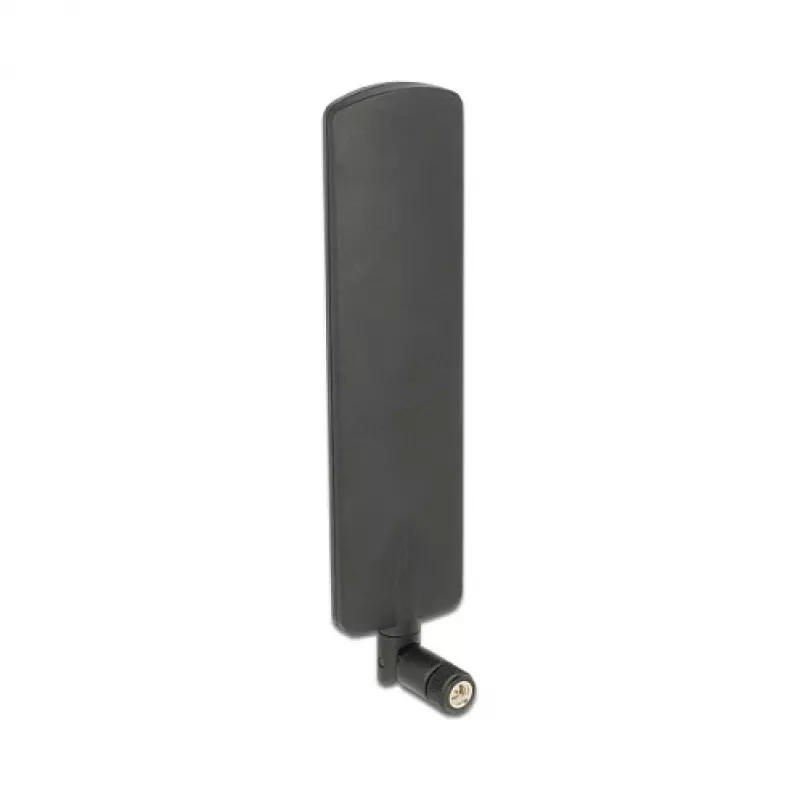

The DeLOCK 89604 LTE antenna provides reception and transmission across multiple mobile and wireless bands. It supports LTE bands and is compatible with GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z‑Wave and LoRa (868 MHz / 915 MHz). The antenna features linear polarization, a durable ABS housing in black, and an SMA connector with 50 Ω impedance for connection to compatible devices.

Advantages

The antenna offers a maximum gain of 2 dBi and covers a wide frequency range (0.698–0.96 / 1.7–2.69 GHz), making it suitable for various network standards. Its SMA connector and 50 Ω impedance ensure broad compatibility, while the ABS enclosure provides mechanical protection and long-term durability.

Suitable for

Key specifications

How to use

Attach the antenna to a device with a compatible SMA connector and ensure the connector is tightened securely but not overtightened. Position the antenna vertically for general omnidirectional coverage; adjust orientation as needed to optimise reception for the target signal. Place the antenna in a location with minimal obstructions and away from large metal surfaces when possible to improve performance.

Recommendations

For best results, test different mounting positions and orientations to find the location with the strongest signal. Use weather-protected mounting if the antenna is installed outdoors and verify compatibility with the device’s RF characteristics before permanent installation.
