Antena DeLOCK LoRa 1,68 dBi

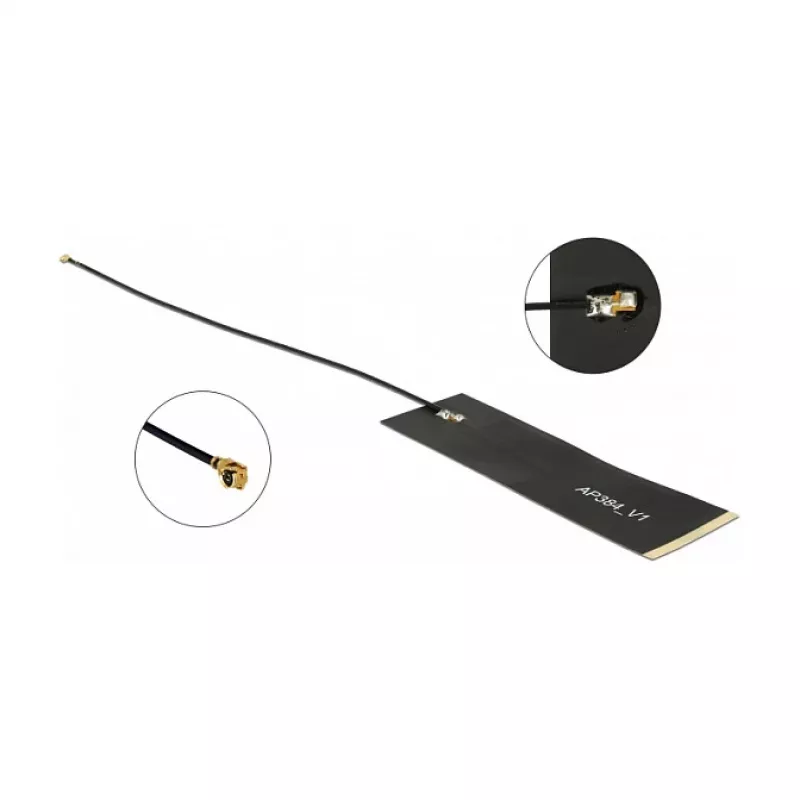

The DeLOCK LoRa 1.68 dBi antenna is designed for indoor use on LoRa networks operating in the 863–928 MHz band. It provides a gain of 1.68 dBi, 50 Ω impedance and linear polarization. The antenna includes a 0.15 m cable with an MHF connector and comes in a compact black housing (20 mm × 85 mm), supplied as a single unit in a polybag.

Advantages

This antenna offers a compact form factor and a defined gain of 1.68 dBi suitable for indoor LoRa deployments in the 863–928 MHz range. With a 50 Ω impedance and linear polarization it supports efficient signal transmission. The integrated 0.15 m cable with MHF connector simplifies connection to compatible modules and devices.

Suitable for

• Indoor LoRa gateways and nodes
• IoT devices requiring 863–928 MHz antenna support
• Prototyping and development boards with MHF connector

Key specifications

• Antenna gain: 1.68 dBi
• Frequency band: 0.863–0.928 GHz
• Impedance: 50 Ω
• Connector type: MHF
• Polarization: Linear
• Cable length: 0.15 m
• Colour: Black
• Dimensions (W × D): 20 mm × 85 mm
• Packaging: Polybag, 1 unit

How to use

Connect the antenna via its MHF connector to a compatible LoRa module or gateway port. Position the antenna indoors where it has a clear path to the supported devices to achieve stable reception. Avoid excessive bending of the 0.15 m cable and secure the antenna in a fixed position if required by the installation.

Recommendations

For best performance place the antenna vertically and away from large metal objects or dense obstructions. Verify that the connected device supports the 863–928 MHz band and the MHF connector type before installation.
