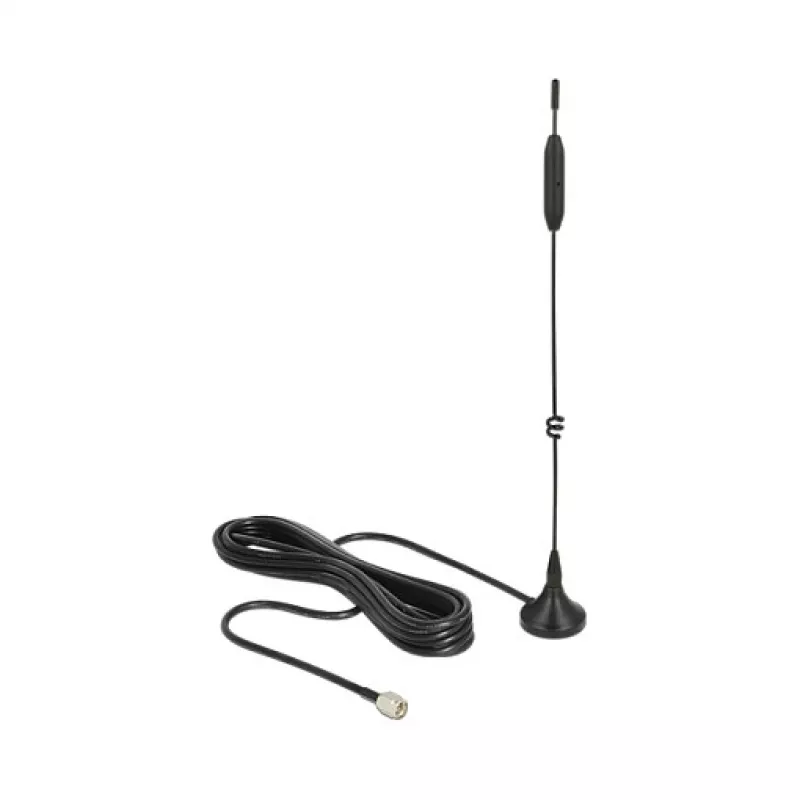

Antena omnidireccional DeLOCK 12420

The DeLOCK 12420 omni-directional antenna supports multiple mobile and wireless standards and is intended for indoor and outdoor use. With a nominal gain of 5 dBi and 50 Ω impedance, this antenna improves reception and transmission for LTE, GSM and UMTS bands and is compatible with Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa (868/915 MHz).

Advantages

The compact omni-directional design provides uniform coverage around the antenna and a gain of 5 dBi helps extend wireless range without complex alignment. A 50 Ω impedance ensures compatibility with common RF equipment and the broad frequency compatibility allows use with cellular and multiple short-range wireless technologies.

Suitable for

• Enhancing LTE, GSM or UMTS signal reception and transmission
• Improving Bluetooth and WLAN 2.4 GHz coverage
• Integrating with ZigBee, Z-Wave, DECT or LoRa IoT devices
• Indoor and outdoor wireless installations requiring omni-directional coverage

Key specifications

• Model: DeLOCK 12420
• Antenna type: Omni-directional
• Gain (max): 5 dBi
• Impedance: 50 Ω
• Compatibility: LTE, GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868/915 MHz
• Use: Indoor/outdoor

How to use

Mount the antenna in a location with minimal obstructions to achieve the best omni-directional coverage. Connect the antenna to compatible RF equipment or gateways with a matching 50 Ω input using the appropriate cable and connector (not included unless specified). For outdoor use, secure the antenna according to local installation guidelines and ensure connectors are weather-protected.

Recommendations

For optimal results, position the DeLOCK 12420 at a higher location with clear line-of-sight to surrounding devices or base stations. Verify that the connected device supports a 50 Ω antenna input and select suitable cabling and connector types for low-loss transmission.
