Antena omnidireccional DeLOCK 12634

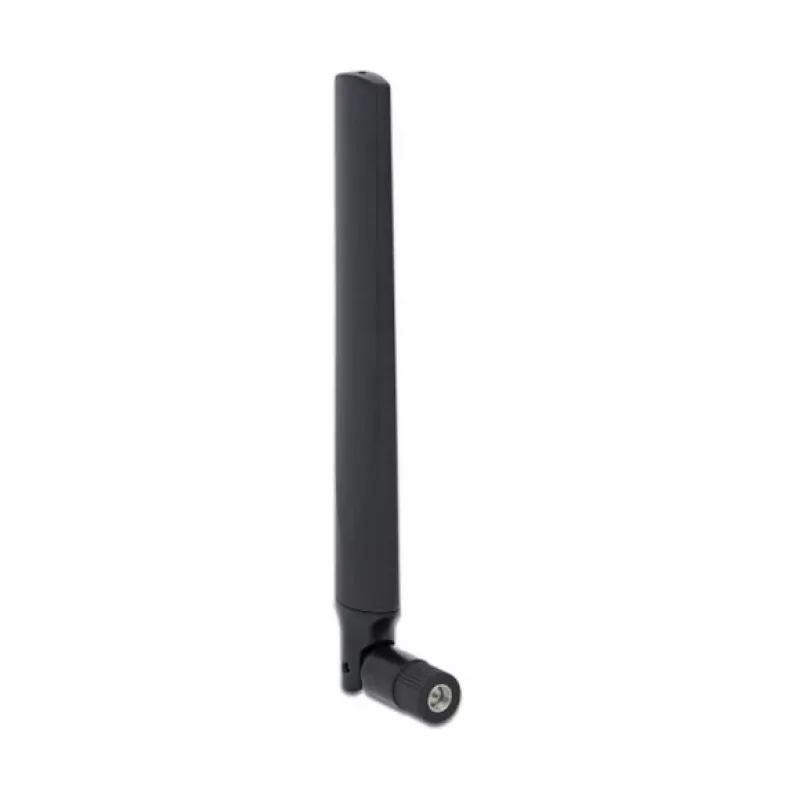

The DeLOCK 12634 omni-directional antenna is designed to improve wireless reception across multiple standards including 5G LTE, GSM, UMTS, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa. It has a compact form factor (21.5 × 13.5 × 183.9 mm), a gain of 1.3 dBi and a 50 Ω impedance with an SMA male connector for straightforward installation in routers, gateways or IoT devices.

Advantages

This antenna supports a wide range of frequency bands and wireless protocols, enabling one antenna to serve multiple applications. Its omni-directional radiation pattern provides uniform reception in all horizontal directions. The compact black housing and SMA male connector make it easy to mount and connect to existing equipment. The 1.3 dBi gain and 50 Ω impedance are suitable for general-purpose signal improvement without requiring special matching components.

Suitable for

• Improving reception for 5G LTE and legacy mobile networks (GSM, UMTS)
• IoT gateways and devices using NB-IoT, LoRa, ZigBee or Z-Wave
• WLAN and Bluetooth 2.4 GHz deployments
• Small routers, modems and residential gateways

Key specifications

• Model: DeLOCK 12634
• Type: Omni-directional antenna
• Gain (max): 1.3 dBi
• Impedance: 50 Ω

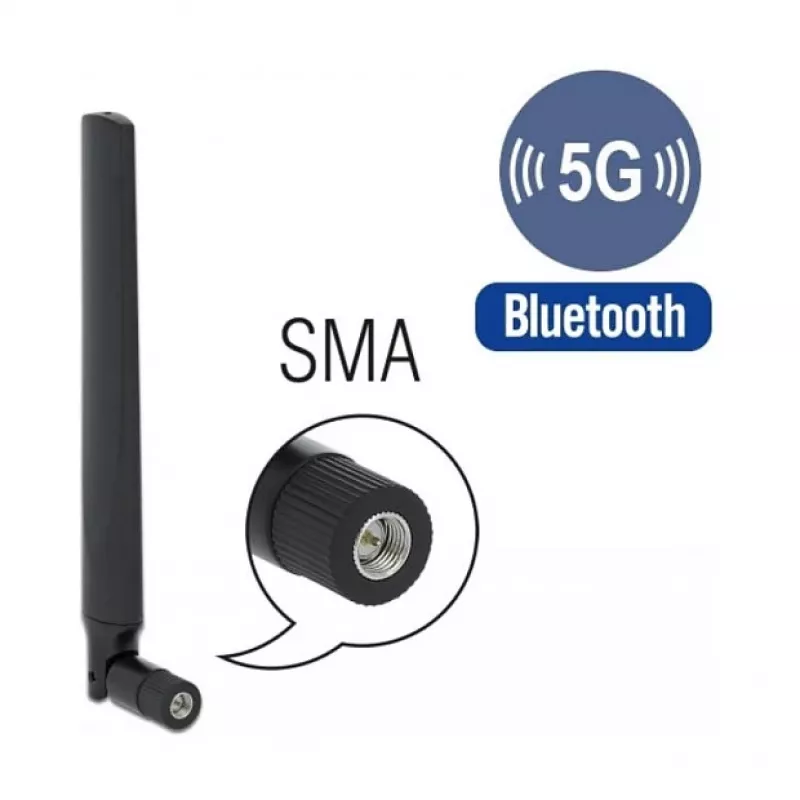

• Connector: SMA male
• Colour: Black
• Dimensions: 21.5 × 13.5 × 183.9 mm
• Compatible standards: 5G LTE, GSM, UMTS, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT, LoRa
• MPN: 12634
• EAN: 4043619126347

How to use

Attach the SMA male connector to a compatible SMA female port on your router, gateway or device. Position the antenna vertically to achieve an omni-directional reception pattern. If used outdoors or in exposed locations, ensure the connector and device ports are protected from moisture. Verify that the device supports the intended frequency bands before deployment.

Recommendations

Place the antenna away from large metal objects and sources of interference; elevation and clear line of sight improve reception. For best results in multi-band environments, test different mounting positions to identify the location with the most stable signal strength.
