Antena omnidireccional DeLOCK 12697

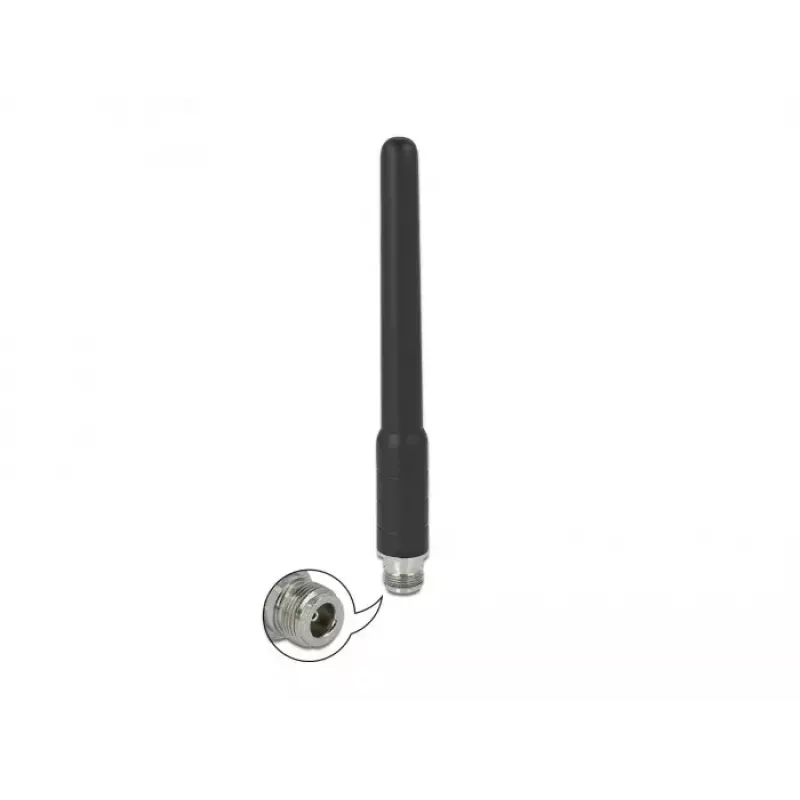

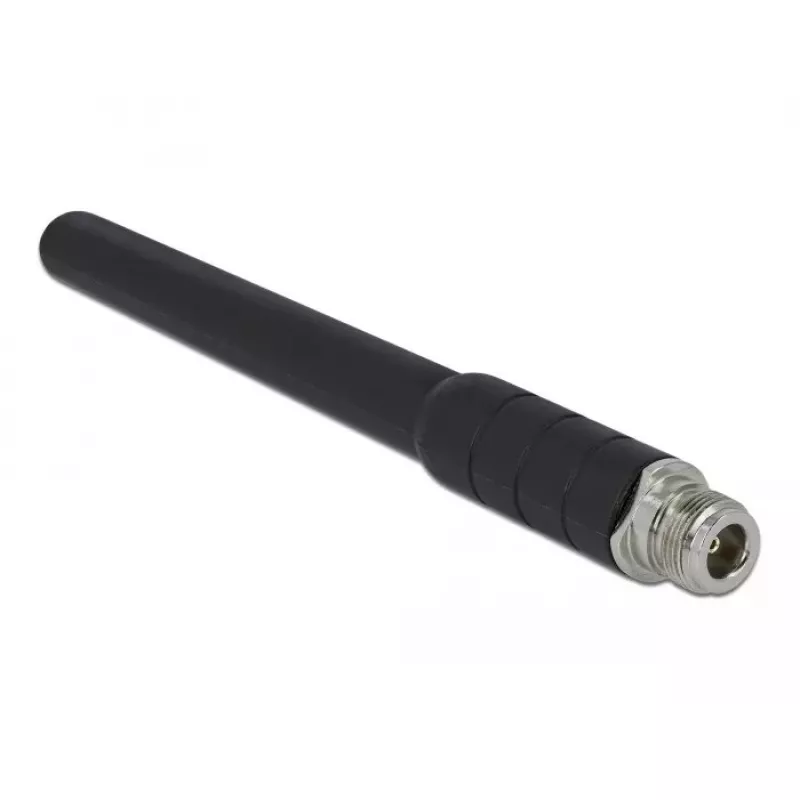

The DeLOCK 12697 omni-directional antenna provides indoor and outdoor support for GSM and UMTS frequency bands. It offers a nominal gain of 2 dBi, 50 Ω impedance and vertical polarization. The antenna is compact and lightweight, featuring an N-type connector and packaged as a single unit in a box for convenient transport and storage.

Advantages

The omni-directional design offers broad coverage without the need for precise aiming, while the 2 dBi gain and 50 Ω impedance ensure compatibility with common radio equipment. Its compact dimensions and low weight make it easy to install and relocate. The N-type connector provides a robust RF connection suitable for outdoor and indoor setups.

Suitable for

• Improving GSM and UMTS signal reception in indoor environments
• Extending cellular coverage for outdoor installations with an N-type connection
• Integrating with routers, modems or radio devices that accept 50 Ω antennas

Key specifications

• Antenna type: Omni-directional
• Gain (max): 2 dBi
• Impedance: 50 Ω
• Polarization: Vertical
• Connector: N-type
• Colour: Black
• Weight: 0.15 kg
• Width: 17.8 mm
• Diameter: 2 cm

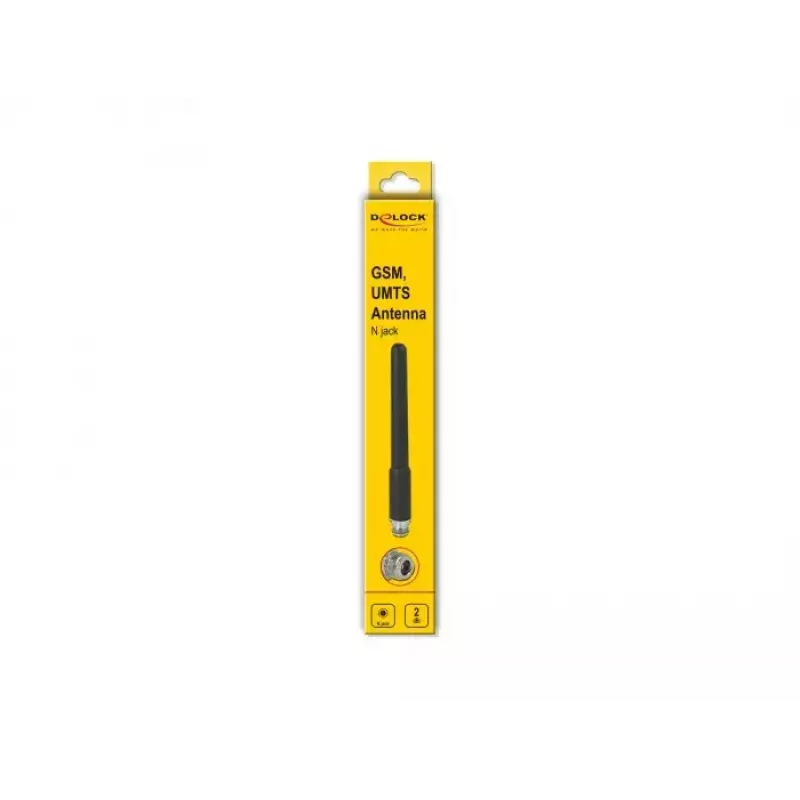

• Package contents: 1 × antenna (boxed)

How to use

Connect the DeLOCK 12697 antenna to the radio device or router using the N-type connector, ensuring the device accepts 50 Ω antennas. Position the antenna vertically for optimal vertical polarization and place it in a location with minimal obstructions to improve GSM and UMTS reception. For outdoor use, mount the antenna securely and verify the connector is weather-protected if needed.

Recommendations

For best results, install the antenna as high as possible and away from large metal objects. Check device compatibility with a 50 Ω N-type connector before installation. When used outdoors, use appropriate sealing or weatherproofing for the connector to maintain long-term performance.
