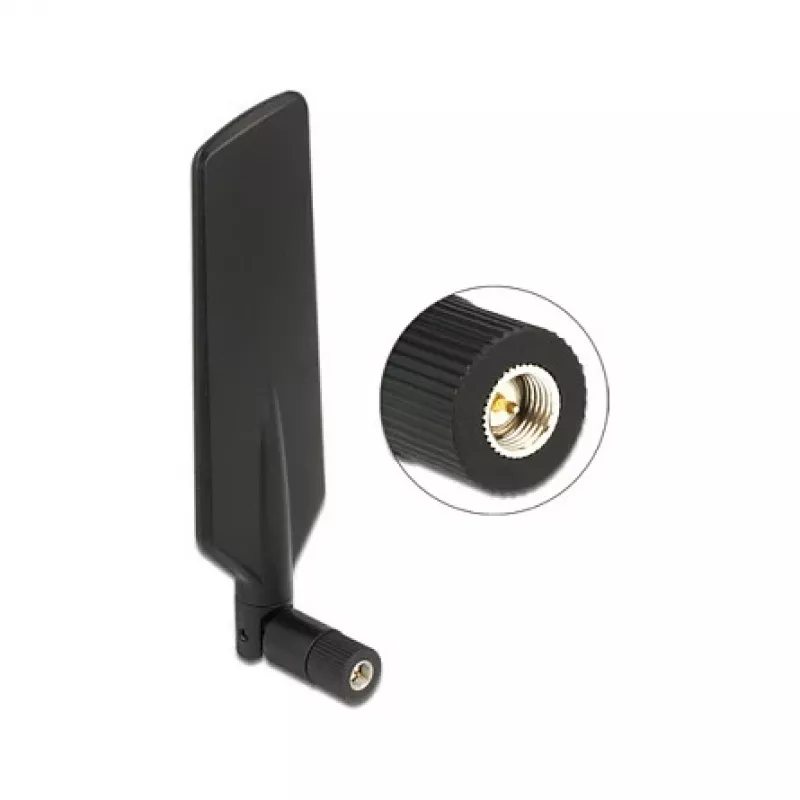

Antena omnidireccional DeLOCK 88978

The DeLOCK 88978 is an omni-directional LTE antenna designed for indoor installation. With a maximum gain of 3 dBi and a 50 Ω impedance, it supports reception across multiple LTE bands and is compatible with Bluetooth, UMTS, GSM, WLAN 2.4 GHz and ZigBee. The antenna uses an SMA connector, has a VSWR of 3.0:1 and compact dimensions (39.8 × 13.5 × 156.2 mm), making it suitable for enhancing wireless connectivity in constrained spaces.

Advantages

The antenna’s omni-directional pattern provides 360° reception coverage, while the 3 dBi gain balances size and signal improvement. Its SMA connector and 50 Ω impedance ensure compatibility with a wide range of routers and modems. The compact black housing allows easy indoor placement without occupying much space.

Suitable for

Key specifications

How to use

Mount the antenna indoors in a location with minimal obstructions and connect it to the device’s SMA antenna port. Orienting the antenna vertically typically provides optimal omni-directional reception. Verify the device’s antenna connector polarity and tighten the SMA connector by hand; avoid over-tightening. After connection, check signal levels on the router or modem and adjust position for best reception.

Recommendations

Place the antenna near a window or higher position to reduce interference from walls and improve LTE reception; avoid placing it next to large metal objects or sources of strong electromagnetic noise.
