Antena omnidireccional Poynting A-XPOL-0024-V1-02 11 dBi 0,617-4,2 GHz

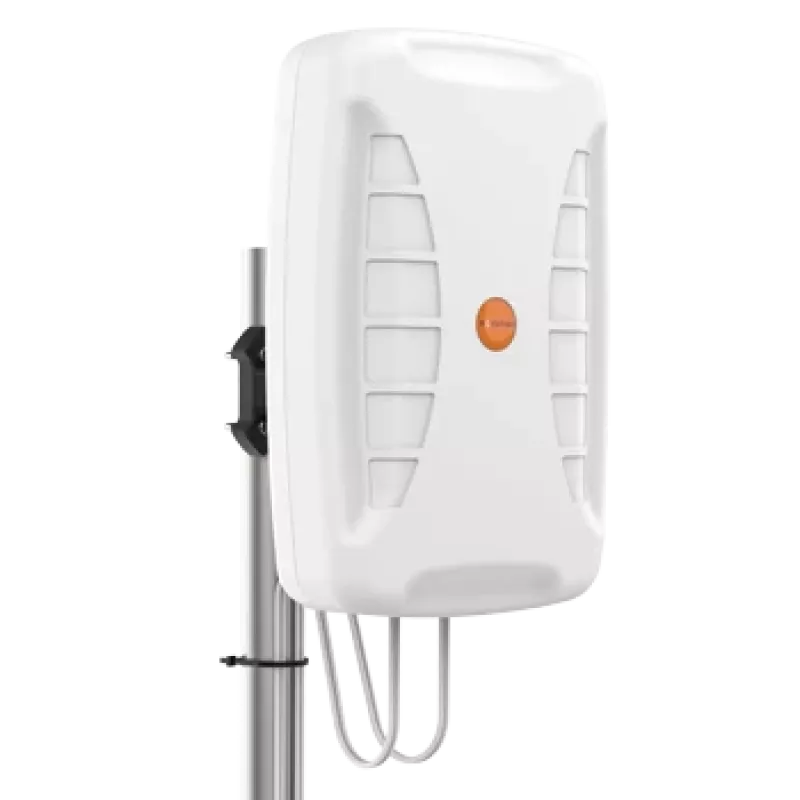

The Poynting A-XPOL-0024-V1-02 is an omni-directional 4×4 MIMO antenna covering 0.617–4.2 GHz with a maximum gain of 11 dBi. Designed for 5G and LTE use, the antenna uses advanced metamaterial technology including an Artificial Magnetic Conductor (AMC) and a registered/patent configuration to improve bandwidth, gain and radiation pattern control. It includes a female N-type connector, has a white housing and weighs approximately 2.565 kg, making it suitable for a range of fixed installations.

Advantages

The antenna offers very wideband frequency coverage that supports multiple LTE and 5G bands and enables Carrier Aggregation across those bands. Its metamaterial-based design and AMC layer deliver improved gain and controlled radiation patterns, which enhance reception and throughput in multi-band deployments. Omni-directional coverage combined with 4×4 MIMO capability supports robust connectivity for varying signal directions.

Suitable for

• Outdoor and rooftop cellular installations
• 5G and LTE base stations or CPE enhancement
• Fixed wireless access where multi-band reception is required
• Carrier Aggregation and multi-carrier deployments

Key specifications

• Frequency range: 0.617–4.2 GHz
• Peak gain: 11 dBi
• MIMO: 4×4
• Connector: female N-type
• Weight: 2.565 kg
• Colour: white

How to use

Mount the antenna in a clear outdoor location or on a rooftop mast with appropriate mounting hardware, ensuring the omni-directional pattern has unobstructed exposure to the surrounding area. Connect the female N-type connector to compatible coaxial cables and your radio/ CPE equipment using suitable weatherproofing at the connection. Align and secure the antenna mechanically according to site requirements, then verify signal levels and MIMO performance from the connected radio.

Recommendations

For best performance, install the antenna at height with clear line-of-sight where possible, use low-loss coaxial cable and maintain proper grounding and lightning protection. Verify compatibility with your radios and plan for multi-band Carrier Aggregation when deploying for 5G/LTE throughput optimization.
