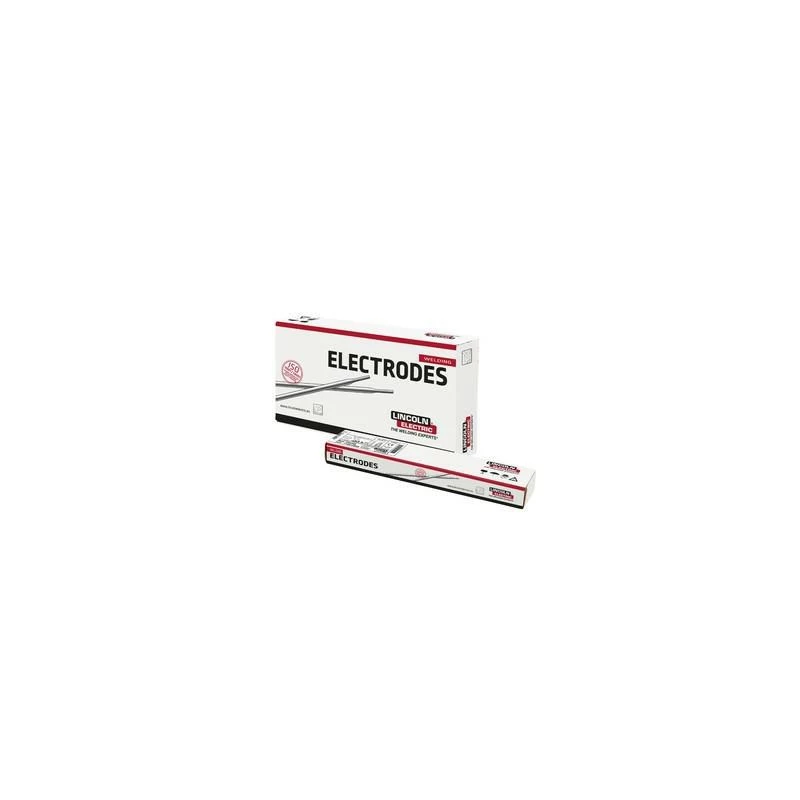

Arcostar 304L 3,2mm 4,2kg Electrodos de soldadura de acero inoxidable E308L-16

The Arcostar 304L welding electrode is a high-quality stainless steel electrode designed for welding AISI 304L, 321, and 347 stainless steels. With a diameter of 3.2 mm and a pack weight of 4.2 kg, this electrode offers excellent corrosion resistance and a smooth, stable arc. It is suitable for all welding positions and operates on DC+ current.

Advantages

Low carbon content (<0.04%) ensures excellent intergranular corrosion resistance. Easy slag removal and smooth arc stability make it ideal for professional welders. The rutile coating provides a stable arc and minimal spatter.

Suitable for

• Welding of AISI 304L, 321, and 347 stainless steels
• All welding positions: flat, horizontal, vertical up, overhead
• Applications requiring high corrosion resistance

Key specifications

• Electrode Type: Stainless Steel Welding Electrode
• Material Grade: 304L (Low Carbon Austenitic Stainless Steel)
• AWS Classification: E308L-16
• Electrode Diameter: 3.2 mm
• Pack Weight: 4.2 kg
• Current Type: DC+ (Direct Current Electrode Positive)
• Typical Amperage Range: 70 - 110 A
• Tensile Strength (Weld Metal): Min. 520 MPa
• Yield Strength (Weld Metal): Min. 320 MPa
• Elongation (Weld Metal): Min. 35%
• Coating Type: Rutile
• Standards: AWS A5.4, ISO 3581-A, EN 1600

Recommendations

For optimal results, use DC+ polarity and maintain proper storage conditions to prevent moisture absorption. Preheat not required for most applications.
