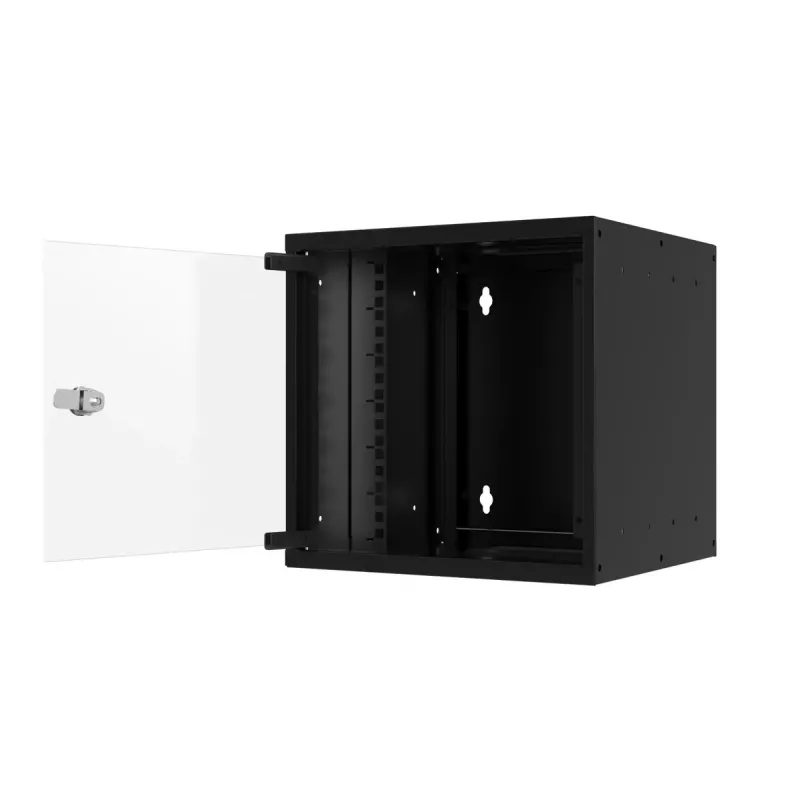

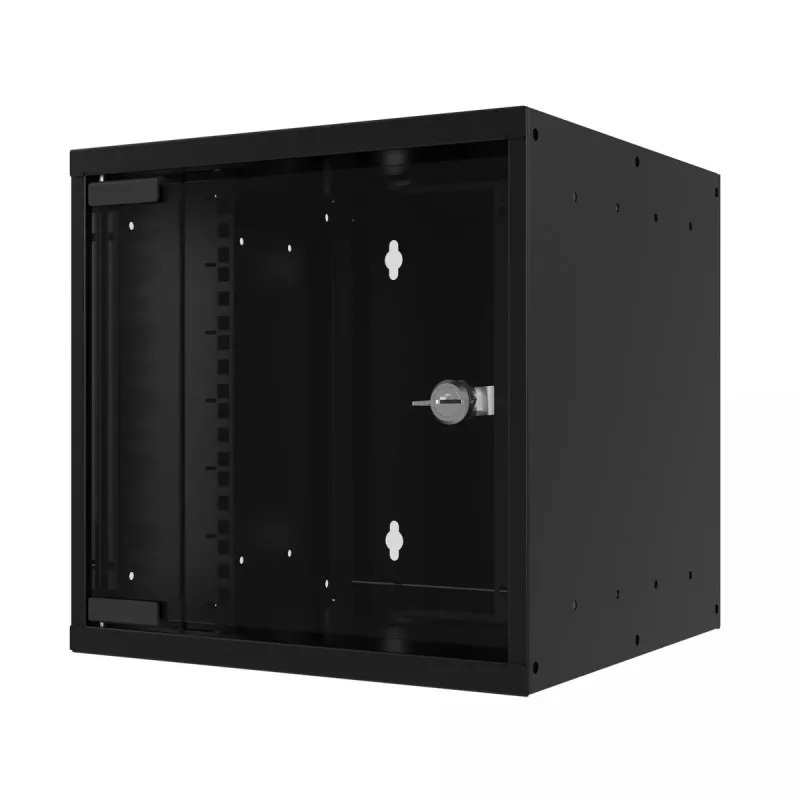

Armario de montaje en pared EFB Elektronik WGB-1006TS.30 6U negro

The EFB Elektronik WGB-1006TS.30 is a 6U wall mounted rack designed to provide secure, space-saving storage and organization for networking and electronic equipment. With a compact footprint and a black finish, the unit integrates into office, server room, or utility spaces while offering protection from accidental contact with internal components thanks to its IP20 rating. The rack includes a keyed lock for physical security and built-in cable management features to keep patching and power runs tidy.

Advantages

The wall mounted rack offers a high strength-to-size ratio with a maximum load capacity of 30 kg in a compact 6U form factor. Its keyed lock enhances physical security for installed equipment, while the IP20 protection reduces the risk of dust and solid object ingress in indoor environments. Integrated cable management simplifies installation and maintenance, and the black finish provides a neutral appearance that fits many professional settings.

Suitable for

• Small office network switches and patch panels
• VoIP telephony equipment and small PBX units
• Home server or media gateway installations
• Point-of-sale and retail network components
• Edge networking hardware in tight spaces

Key specifications

• Rack capacity: 6U
• Maximum load capacity: 30 kg
• Protection rating: IP20 (protection against solid objects)
• Height: 304 mm
• Width: 312 mm
• Depth: 300 mm
• Colour: Black
• Mounting type: Wall-mounted

How to use

Secure the rack to a suitable load-bearing wall using appropriate fixings for the wall material and observing the rack's maximum load capacity. Install equipment into the 6U space, fastening devices to the rack rails or mounting points as required. Route network and power cables through the provided cable management features to maintain clear airflow and reduce strain on connectors. Use the keyed lock to restrict physical access when required.

Recommendations

The rack is intended for indoor use in environments that do not require elevated protection against liquids or heavy dust; maintain total installed equipment weight below 30 kg and ensure proper ventilation around heat-generating devices.
