Armario de pared EFB Elektronik 691712VGR.60

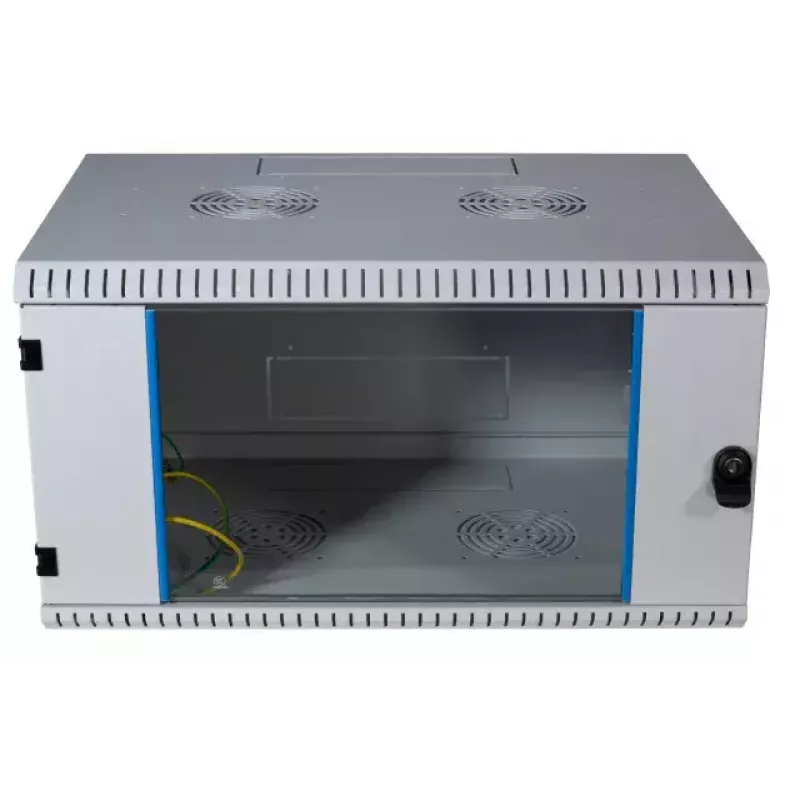

The EFB Elektronik 691712VGR.60 wall mounted rack is a compact 12U enclosure designed for indoor network and server installations where space efficiency is important. With dimensions of 600 x 600 x 600 mm and a 19" mounting profile, this grey rack provides a stable frame for mounting networking equipment, patch panels and small servers. Its IP20 protection rating and a maximum static load capacity of 50 kg make it suitable for protected indoor environments such as server rooms, telecommunications closets and office IT corners.

Advantages

The wall mounted rack combines a compact footprint with a 12U mounting capacity, allowing installation in limited spaces without sacrificing standard 19" compatibility. The IP20 rating ensures protection against solid objects while remaining intended for indoor use. The steel construction and reinforced mounting points deliver reliable support for active and passive equipment up to the indicated weight limit. The neutral grey finish integrates with typical commercial and technical interiors.

Key specifications

• Mounting standard: 19"
• Rack capacity: 12U
• Width: 600 mm
• Depth: 600 mm
• Height: 600 mm
• Maximum load capacity: 50 kg (static)
• Protection rating: IP20 (indoor use)
• Colour: Grey

How to use

Secure the rack to a suitable load-bearing wall using appropriate fixings that match the wall material and the rack's mounting points. Plan equipment placement to keep heavier units lower in the rack and distribute weight evenly. Install standard 19" mounting rails and attach network switches, patch panels and other devices using compatible screws and cage nuts. Ensure ventilation and cable routing are organized to prevent airflow obstruction and to maintain service access. Do not exceed the specified maximum load capacity.

Recommendations

Install in a controlled indoor environment with limited dust and moisture. Use cable management accessories and ventilated panels to maintain cooling. Verify wall strength and use certified anchors when mounting to ensure safety and stability.
