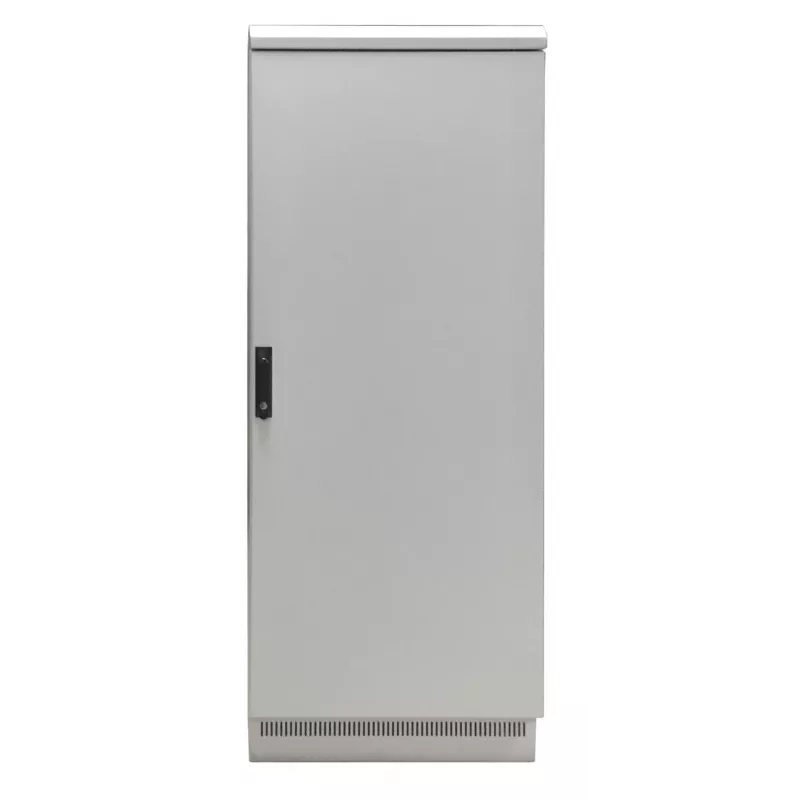

Armario de red de 19" EFB Elektronik 24U 600x600 IP55 con zócalo premontado, gris claro RAL 7035

In industrial control rooms and harsh factory environments, network equipment demands robust protection against dust, moisture, and unauthorized access. This 24U freestanding cabinet from EFB Elektronik delivers exactly that, with an IP55-rated enclosure, pre-assembled 100 mm plinth, and a lockable steel construction finished in light grey RAL 7035. It accommodates standard 19-inch rack-mount servers, switches, and patch panels, making it a reliable backbone for your critical infrastructure.

Key specifications

• Rack standard: 19-inch, 24 rack units (24U)
• External dimensions: 600 mm width x 600 mm depth x 1240 mm height (including plinth)
• Ingress protection: IP55 – dust-protected and resistant to water jets
• Material: Powder-coated steel sheet, light grey RAL 7035

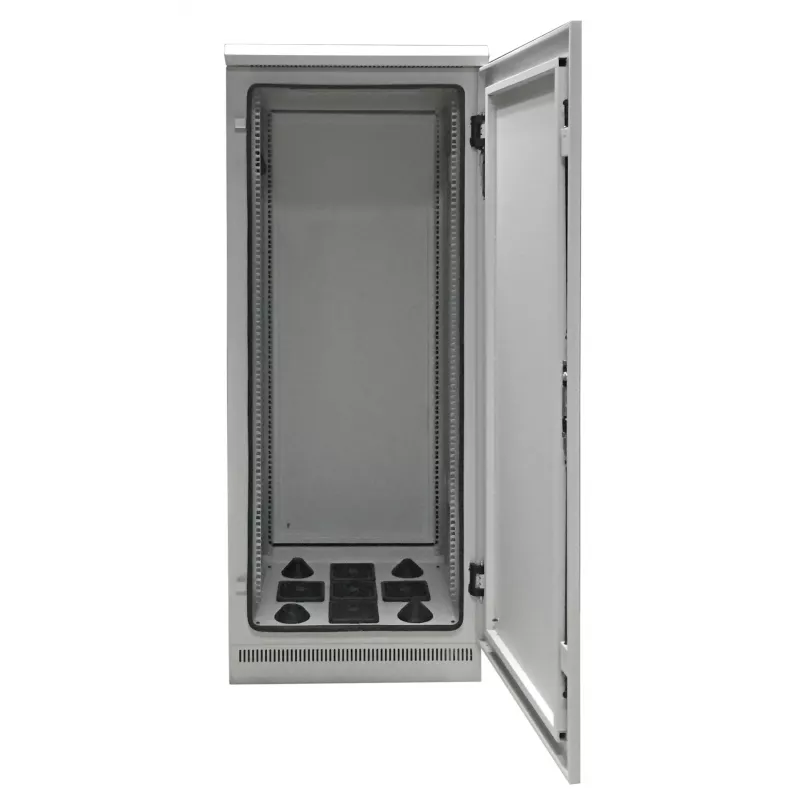

• Front door: Steel with safety glass insert, 3-point locking

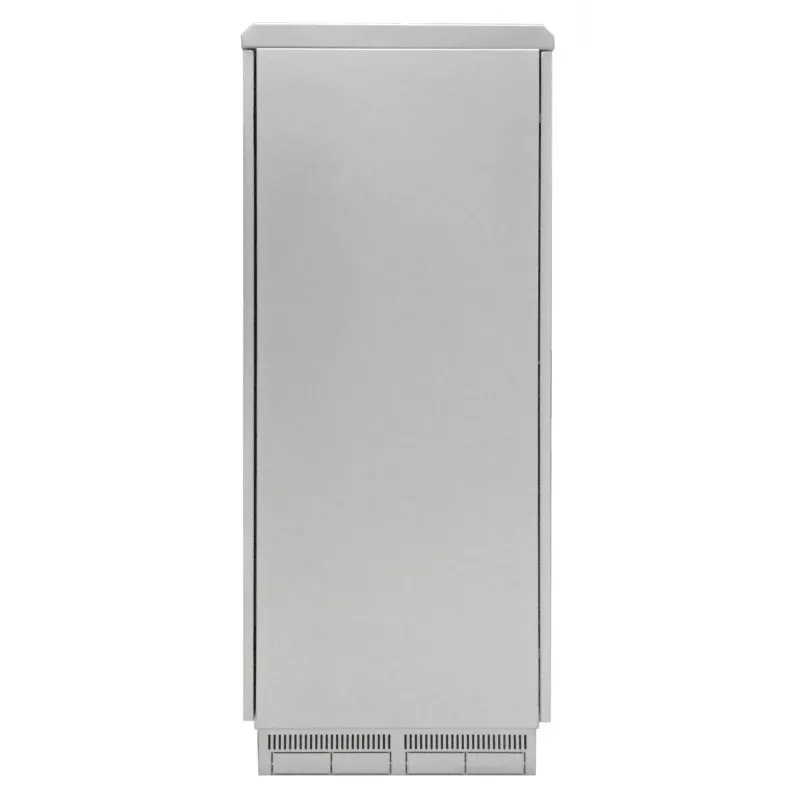

• Rear door: Steel, 3-point locking
• Side panels: Removable and lockable
• Plinth: 100 mm, pre-assembled
• Static load capacity: 800 kg
• Cable entry: Top and bottom with sealed brush strips
• Mounting rails: Front and rear 19" profiles, depth adjustable

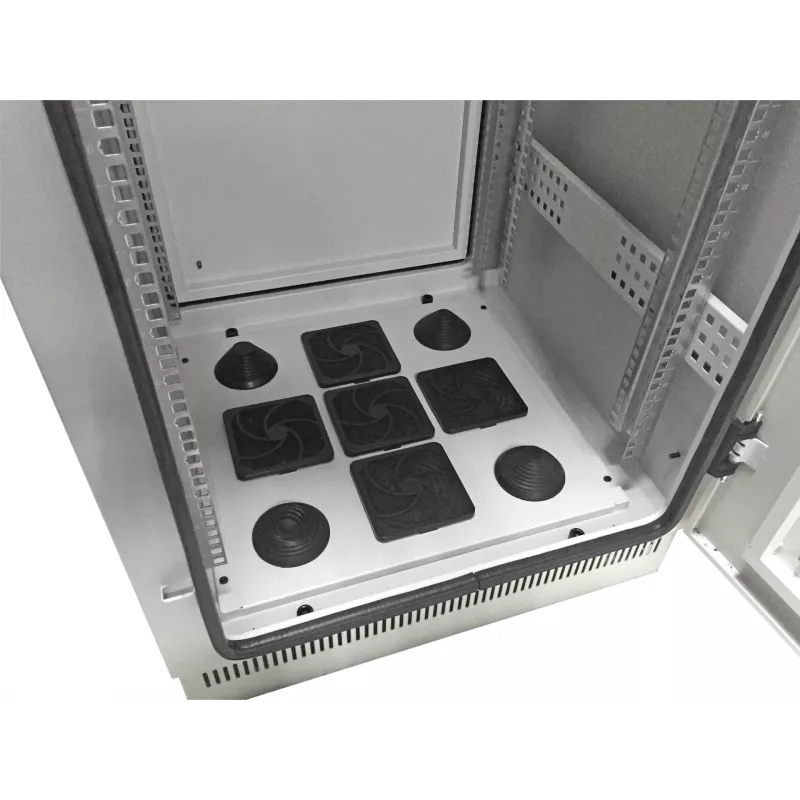

• Ventilation: Passive, prepared for active ventilation units
• Grounding: Integrated grounding system
• Compliance: RoHS, REACH

Why choose it

The IP55 rating ensures long-term reliability in dusty or damp locations, while the 3-point locking doors and lockable side panels secure your equipment against tampering. The pre-assembled plinth simplifies installation and provides convenient cable access from below. With an 800 kg static load capacity, this cabinet easily supports heavy servers and UPS systems. Its neutral light grey finish blends seamlessly into any technical environment.

Ideal use cases

• Industrial networks in manufacturing plants and warehouses
• Server rooms requiring dust and splash protection
• Edge computing installations in non-climate-controlled areas
• Secure housing for switches, routers, and patch panels

Good to know

The cabinet is delivered fully assembled with plinth, ready for immediate deployment. Adjustable mounting rails allow flexible equipment depth. Passive ventilation can be upgraded with optional fan units for high-density loads. All materials comply with RoHS and REACH directives, ensuring environmental safety.
