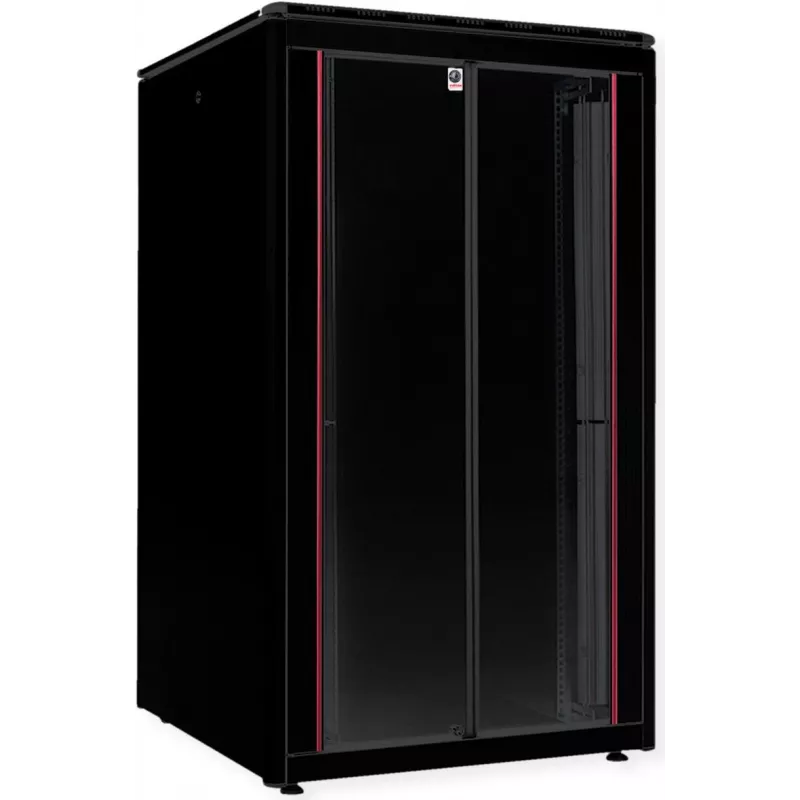

Armario de red independiente ROLINE Pro 26U 19" 800x800 mm, puerta de cristal, negro, 600 kg, IP20

ROLINE Pro 26U 19-inch freestanding network cabinet with 800 x 800 mm footprint and a glass front door, finished in black. The cabinet provides 26U of mounting space on standard 19" rails, a maximum static load capacity of 600 kg and a robust steel construction with sheet thicknesses up to 1.5 mm. Designed for use in server rooms and IT closets, it features adjustable feet, removable side panels and doors, reversible and depth-adjustable 19" profile rails, and an IP20 protection rating. Roof and base brush inlets, a slide-on base inlet with foam seal and brush strips on the rear door simplify cable entry and routing, while a stepped removable top cover with ventilation slots accommodates fan modules and supports improved airflow.

Advantages

The ROLINE Pro 26U cabinet combines sturdy mechanical design and practical cable management to support secure installation and maintenance of network and server equipment. Reversible and adjustable 19" rails and additional depth struts provide flexible mounting options for different device depths. Modular removable panels and doors, together with the ability to change the door hinge or fully dismantle the enclosure, make on-site installation and service access straightforward. Integrated brush inlets, vertical cable ducts with covers and foam-sealed base inlet reduce dust entry and enable organized cabling while the top cover with ventilation slots allows passive or active ventilation options.

Suitable for

• Housing 19" servers, rackmount switches and patch panels in small to medium server rooms
• Network distribution and structured cabling in office IDF/MDF closets
• Consolidation of telecommunications and AV equipment requiring front glass access
• Environments where cable entry, routing and airflow management are required

Key specifications

• Mounting height: 26U on 19" rails
• External footprint: 800 x 800 mm (width x depth)
• Maximum static load capacity: 600 kg
• Protection rating: IP20
• Material: steel enclosure with up to 1.5 mm sheet thickness
• Finish: electrostatic powder coating in black (RAL 9005)
• Front door: glass; rear door and side panels removable; door hinge changeable
• Cable management: roof and base brush inlets, slide-on base inlet with foam seal, brush strips on rear door, vertical cable ducts with covers
• Rails: two pairs of galvanised 19" profile rails, reversible and depth-adjustable; connected to additional depth struts
• Top cover: stepped removable cover with ventilation slots; compatible with fan module installation
• Feet: adjustable for levelling
• Weight: 78 kg

How to use

Place the freestanding cabinet on a level, stable floor and adjust the feet to achieve correct levelling. Remove the front and rear doors or side panels as needed to position heavier equipment onto the 19" rails; the galvanised profile rails are reversible and can be adjusted in depth for different device sizes. Route power and network cabling through the brush inlets or the slide-on base inlet with foam seal to minimise dust ingress, and secure cables in the vertical ducts with covers. If required, install fan modules under the stepped removable top cover to improve airflow. After equipment installation, close doors and panels and verify that the cabinet remains within its specified load and clearance limits.

Recommendations

Install heavier units low in the rack to maintain stability and keep total load within the 600 kg rating. Use the brush inlets and vertical ducts for organized cable entry and avoid obstructing ventilation slots; add active ventilation if rack power density or device temperatures require improved cooling. For secure access control, consider adding compatible locking mechanisms to the doors where needed.
