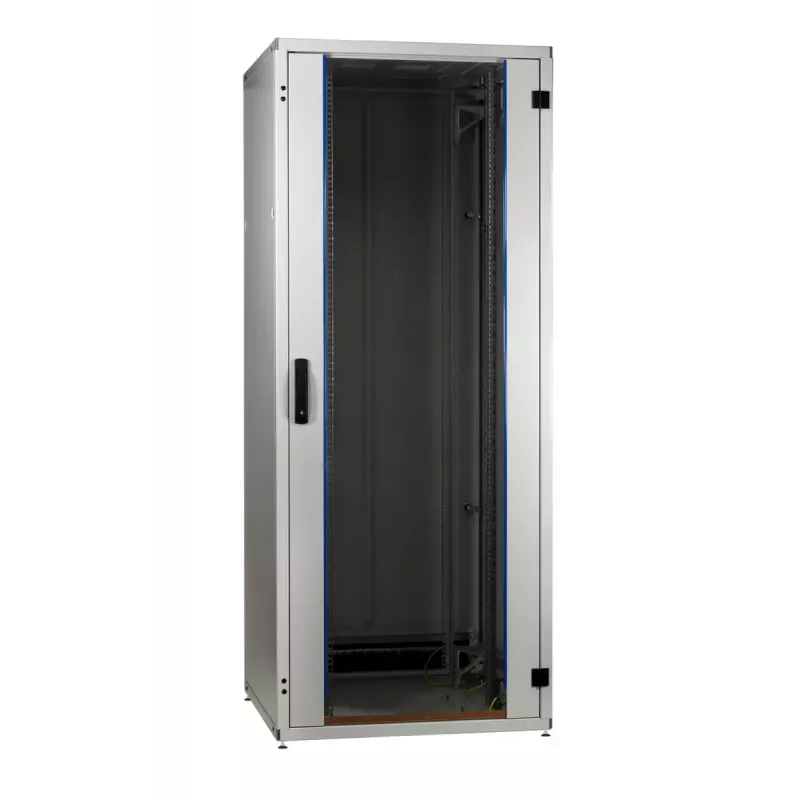

Armario rack EFB Elektronik PRO-3380GR.G1SV 33U independiente, IP20, carga máx. 1360 kg, gris

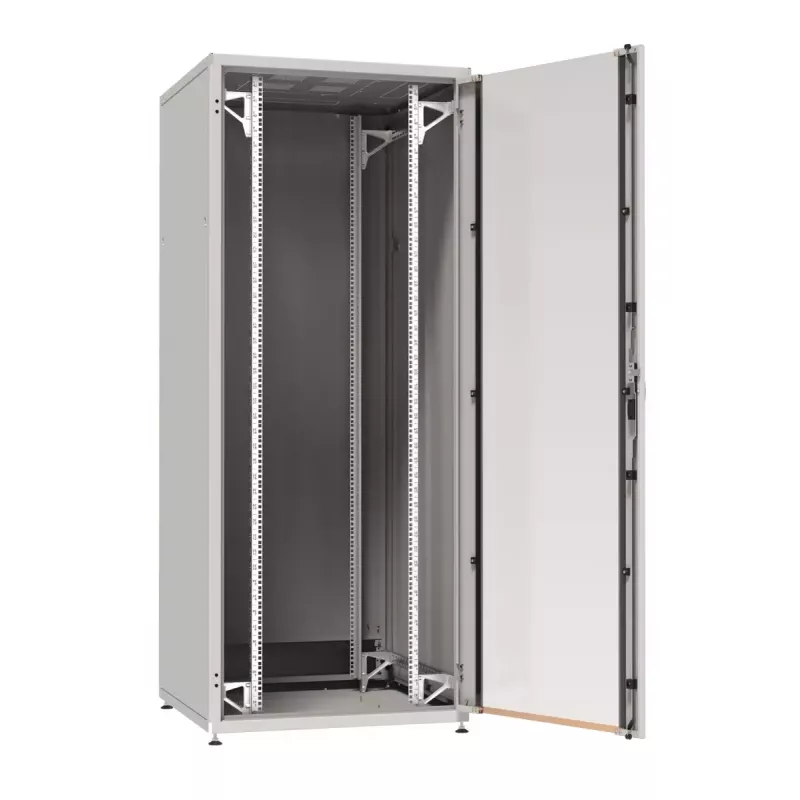

EFB Elektronik PRO-3380GR.G1SV is a freestanding 19" network rack cabinet with 33U capacity designed for equipment installation in server rooms and network closets. The steel-sheet housing comes with a screwed frame and is delivered fully pre-assembled; the cabinet is self-ventilated and can be dismounted if needed. Inside there are four galvanised 19" profiles (two front, two rear) with stepless depth adjustment and contrarwise numbering of rack units. The front door features a 5 mm certified safety glass window and a lockable turning handle with a 3-point mechanism (single-point for cabinets up to 24U). A profile half-cylinder lock according to DIN18252 / EN 1303 (30/10 mm) is included and is customer-exchangeable.

Advantages

The cabinet offers a robust steel construction with pre-assembled, screwed frame for quick installation and reliable load support. Galvanised, depth-adjustable 19" profiles allow flexible mounting of servers and networking equipment, while contrarwise rack unit numbering improves installation accuracy. The glass front door provides visibility into the cabinet interior and the certified safety glass ensures physical protection. A lockable 3-point handle and a standard-profile half-cylinder lock increase security and are compatible with common lock cylinders.

Suitable for

• Small and medium data centres
• Network and server rooms
• Telecommunications closets and wiring cabinets
• Equipment racks for IT infrastructure in offices and technical rooms

Key specifications

• Model: PRO-3380GR.G1SV (EFB Elektronik)
• Type: Freestanding 19" rack cabinet
• Rack capacity: 33U
• Material: Steel sheet housing with screwed frame
• 19" profiles: 4 galvanised profiles (2 front, 2 rear), stepless depth-adjustable
• Door: Front door with 5 mm certified safety glass window
• Locking: 3-point turning handle (up to 24U: 1-point), lockable; included profile half-cylinder according to DIN18252 / EN 1303 (30/10 mm), customer-exchangeable
• Ventilation: Self-ventilated
• Assembly: Completely pre-assembled, dismountable
• IP rating: IP20
• Maximum weight capacity: 1360 kg
• Colour: Grey

How to use

Position the freestanding rack cabinet on a level surface in the intended installation area and secure it if required by local regulations. Install equipment by mounting rails onto the galvanised 19" profiles and adjust profile depth to accommodate device depth. Route cables through available entry points and ensure adequate clearance for ventilation. Lock the front door with the included profile half-cylinder for restricted access. For maintenance or relocation, the cabinet can be dismounted according to the assembly instructions.

Recommendations

Place the cabinet in a dry, dust-reduced environment, maintain proper airflow and avoid obstructing ventilation openings. Verify load distribution on rack units and follow EFB Elektronik mounting guidelines when installing heavy equipment to preserve structural integrity and safe operation.
