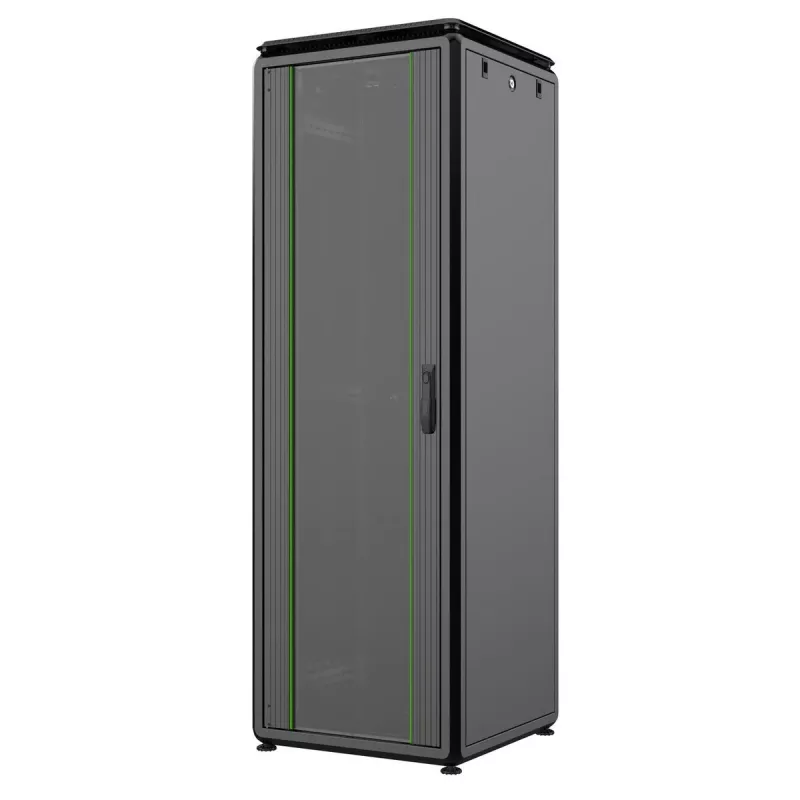

Armario rack Lanview RDL36U66BL 36U negro 600 kg IP20

The Lanview RDL36U66BL is a freestanding 36U rack cabinet with external dimensions W:600 x D:600 x H:1786 mm, designed for indoor server rooms and network closets. It supports up to 600 kg of equipment, has an IP20 protection rating and a black finish. The cabinet features adjustable installation rails, a wide range of compatible accessories and a flatpack option for reduced storage and transport volume.

Advantages

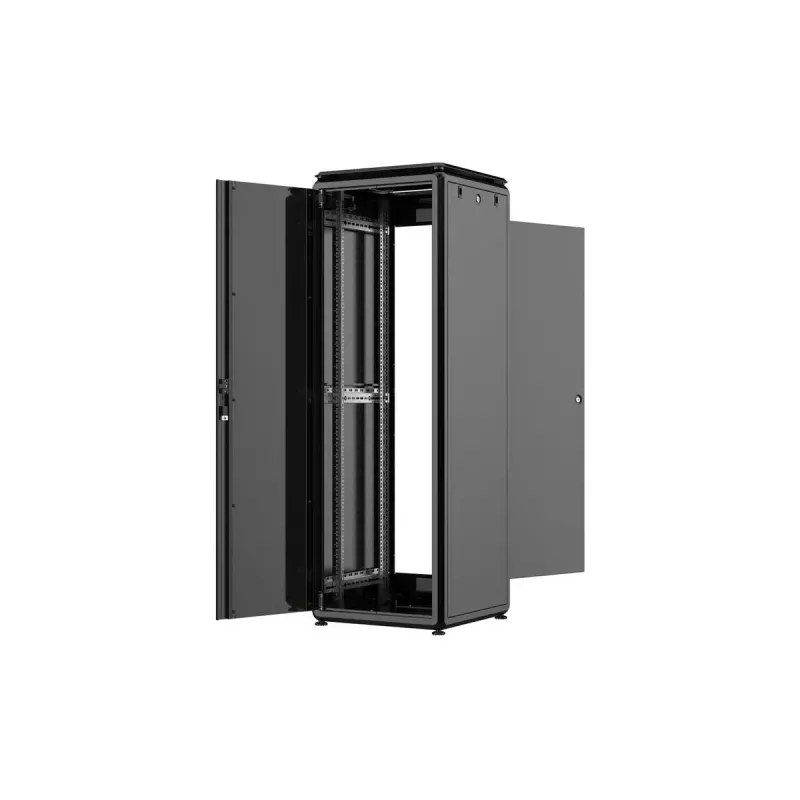

This rack cabinet offers a robust steel construction with easy assembly using simple tools, adjustable installation rails for flexible depth configuration, and compatibility with vertical cable management modules. A wide bottom cable entry with a rubber-edged sliding cover protects cables and helps maintain dust-resistant conditions. The front door uses full-size, 4 mm tempered smoke glass with a handle-locking mechanism, while side panels and rear doors are lockable and removable for easy access during installation and maintenance.

Suitable for

• Data centres and server rooms
• Network cabinets in offices and technical rooms
• Storing and securing 19" rack-mount equipment up to 36U
• Installations requiring organized vertical and horizontal cable management

Key specifications

• Model: Lanview RDL36U66BL
• Rack capacity: 36U
• External dimensions (W x D x H): 600 x 600 x 1786 mm
• Maximum load: 600 kg
• Weight: 68.5 kg
• Protection rating: IP20
• Colour: Black
• Front door: Split glass, 4 mm tempered smoke glass, lockable

How to use

Place the freestanding cabinet on a level surface and assemble following the included instructions; simple hand tools are sufficient. Adjust the installation rails to the required depth to fit 19" equipment and secure rails in position. Route equipment power and network cabling through the bottom cable entry, use the rubber-edged sliding cover to protect and seal cable openings, and install vertical cable management modules as needed. Lock the front door and side panels after equipment is mounted to restrict access.

Recommendations

For stable operation, distribute mounted equipment weight evenly across the cabinet and secure heavy devices toward the bottom. Use compatible cable management accessories to maintain airflow and reduce dust ingress. The cabinet is intended for indoor use in environments matching its IP20 rating.
