Armario rack Lanview RWMIP55W16U45B 16U negro IP55 38kg

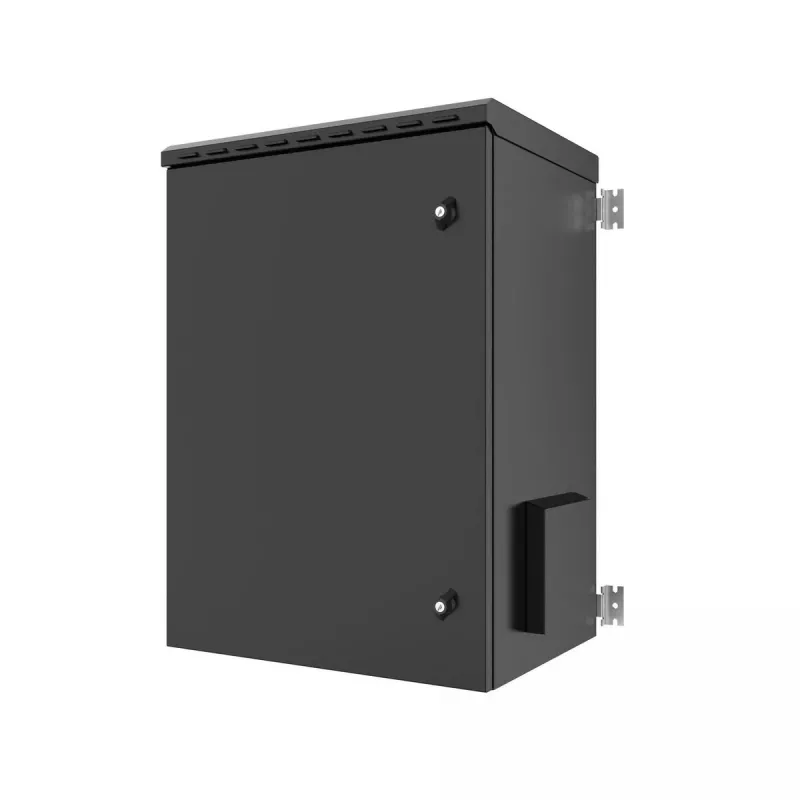

The Lanview RWMIP55W16U45B is a 16U rack cabinet with dimensions 600 x 450 x 810 mm, designed to house standard 19” devices and equipment. It carries an IP55 protection rating for dust and water resistance, weighs 38 kg and is suitable for both indoor and outdoor installations where robust protection and reliable equipment mounting are required.

Advantages

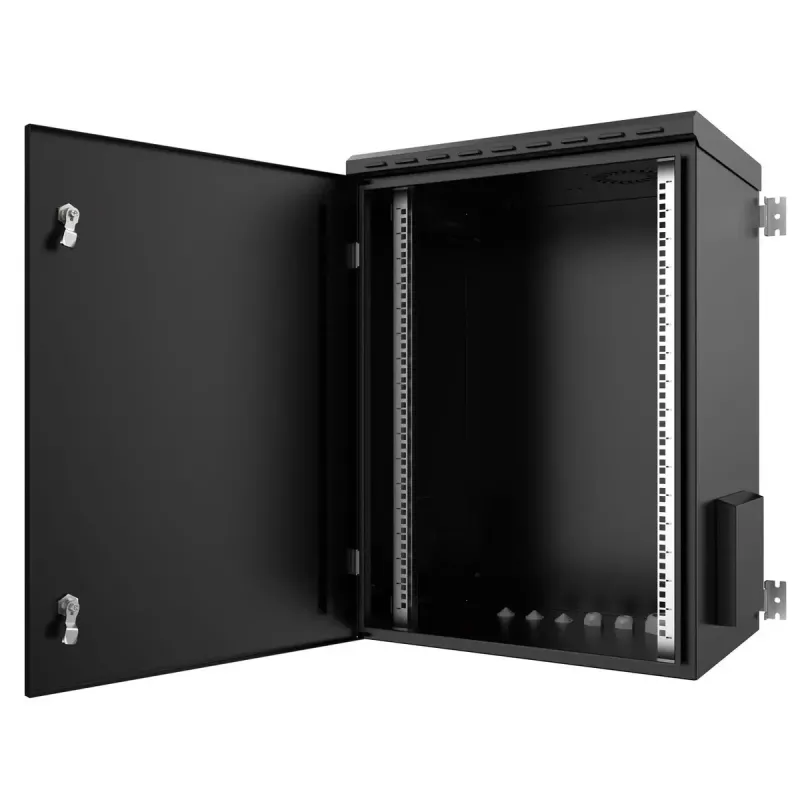

The cabinet provides two device mounting rails for secure installation of 19” equipment and features a hinged top cover that allows easy access to fan modules. Passive ventilation is achieved with 125×125 mm dust filters on the right and left sides, while roof louvers enable hot air exhaust. Multiple bottom cable entry options include one PG48 IP gland, two PG21 IP glands and three 28 mm diameter PVC blind plugs; the bottom closure is removable for larger cable routing needs.

Suitable for

• Mounting 19” network switches, patch panels and servers
• Indoor and sheltered outdoor telecom and network cabinets
• Environments requiring IP55-rated protection against dust and water

Key specifications

• Model: Lanview RWMIP55W16U45B
• Form factor: 16U, 19” compatible
• Dimensions (HxWxD): 810 x 600 x 450 mm
• Protection rating: IP55
• Weight: 38 kg
• Ventilation: 125×125 dust filters (left & right), roof louvers
• Cable entries: 1× PG48 gland, 2× PG21 glands, 3× 28 mm PVC blind plugs; removable bottom closure

How to use

Install the cabinet on a stable, level surface and fasten it according to local mounting requirements. Attach 19” devices to the two supplied mounting rails using appropriate screws and cage nuts. Use the hinged top cover to access and service fan modules. Route power and data cables through the bottom cable entries or remove the bottom closure when larger openings are needed; fit glands or plugs as required to maintain IP55 protection.

Recommendations

Position the cabinet in a location that avoids direct immersion in water and provides sufficient clearance for airflow through the roof louvers. Regularly clean or replace the 125×125 dust filters and check cable gland seals to ensure continued IP55 protection.
