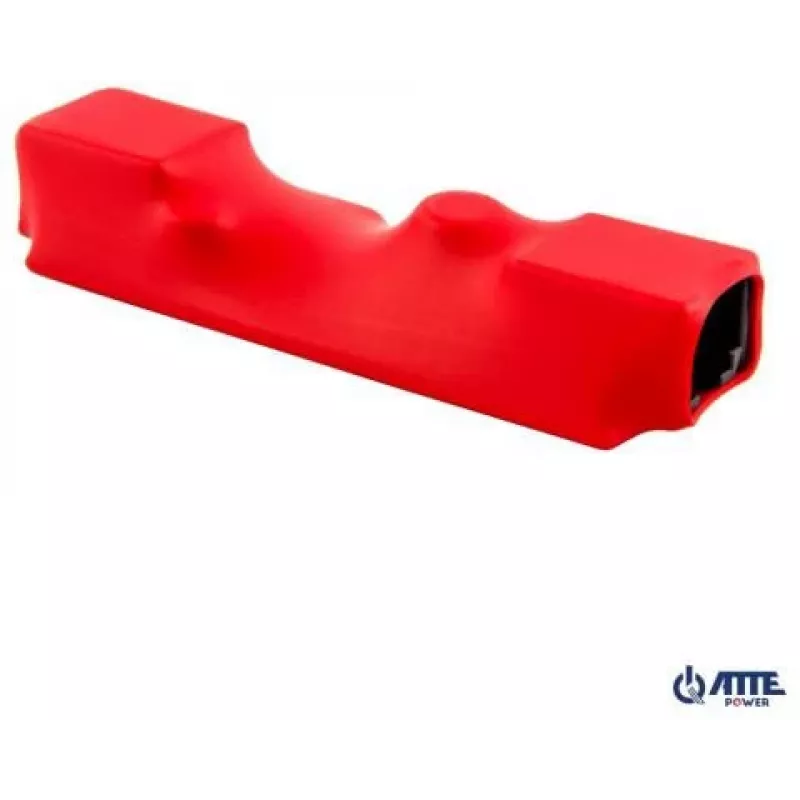

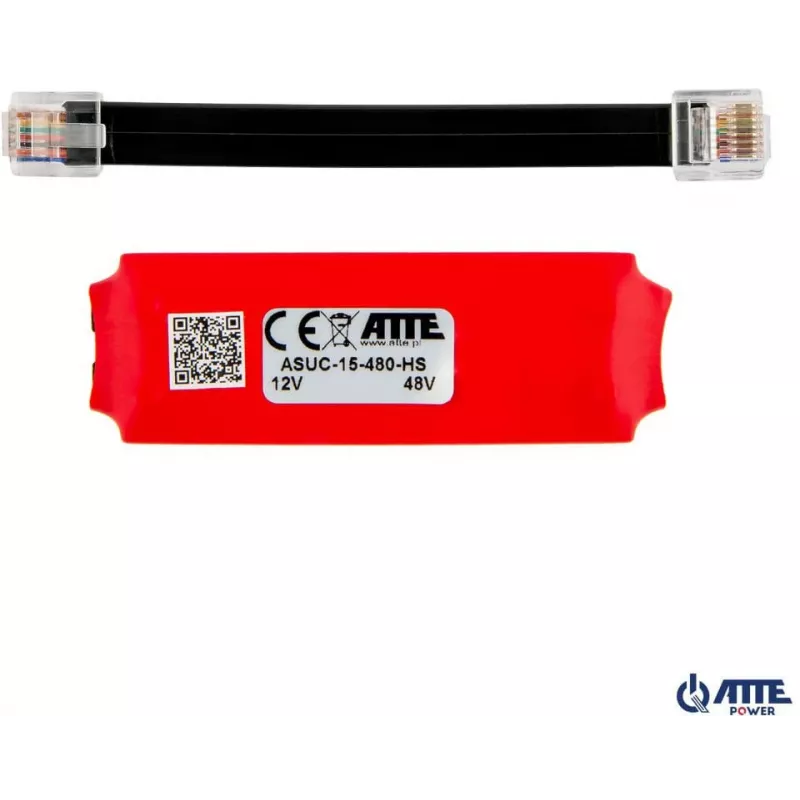

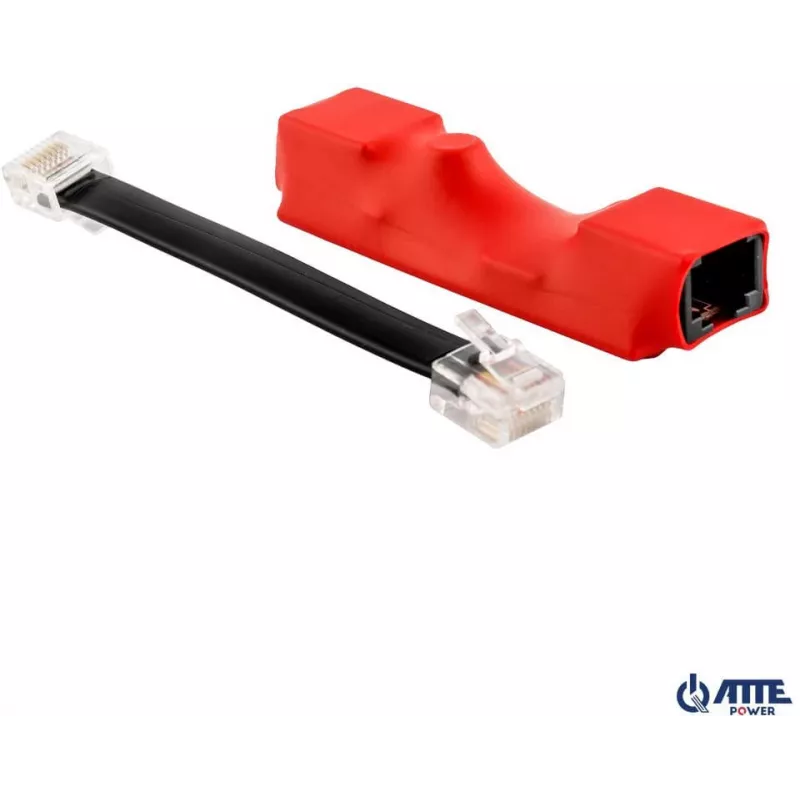

ATTE ASUC-15-480-HS adaptador PoE pasivo, entrada 10-30V DC, salida 48V DC 15W, 0,31A, RJ45, montaje en pared, negro

The ATTE ASUC-15-480-HS is a high-quality Passive PoE adapter designed to boost input voltage from 10-30V DC to a stable 48V DC output, delivering up to 15W of power. Ideal for powering PoE devices such as IP cameras, VoIP phones, and wireless access points in environments where standard PoE switches are not available or where voltage boosting is required.

Advantages

This adapter ensures reliable power delivery over Ethernet cables, supporting 10/100 Mbps data speeds. Its compact, wall-mountable design saves space and allows for easy installation. With built-in protection against short circuits, overloads, and overvoltage, it guarantees safe operation and longevity of connected devices.

Suitable for

• IP cameras and surveillance systems
• VoIP phones and communication devices
• Wireless access points and network extenders
• Any PoE device requiring 48V DC power

Key specifications

• Input Voltage: 10-30V DC
• Output Voltage: 48V DC
• Output Power: 15W
• Output Current: 0.31A
• PoE Standard: Passive PoE (4,5+/7,8-)
• Ethernet Data Speed: 10/100 Mbps
• Input Connector: 2-pin Screw Terminal
• Ethernet Connectors: RJ45 (Data In & PoE Out)
• Efficiency: >85%
• Protection: Short Circuit, Overload, Overvoltage
• Operating Temperature: -25°C to +50°C
• Storage Temperature: -40°C to +85°C
• Operating Humidity: 10-90% RH (non-condensing)
• Enclosure Material: ABS Plastic
• Mounting: Wall Mountable
• LED Indicators: Power LED

Recommendations

For optimal performance, use with a compatible 10-30V DC power source and ensure proper wiring of the screw terminal. This adapter is not a standard PoE injector; it is designed for passive PoE applications only.
