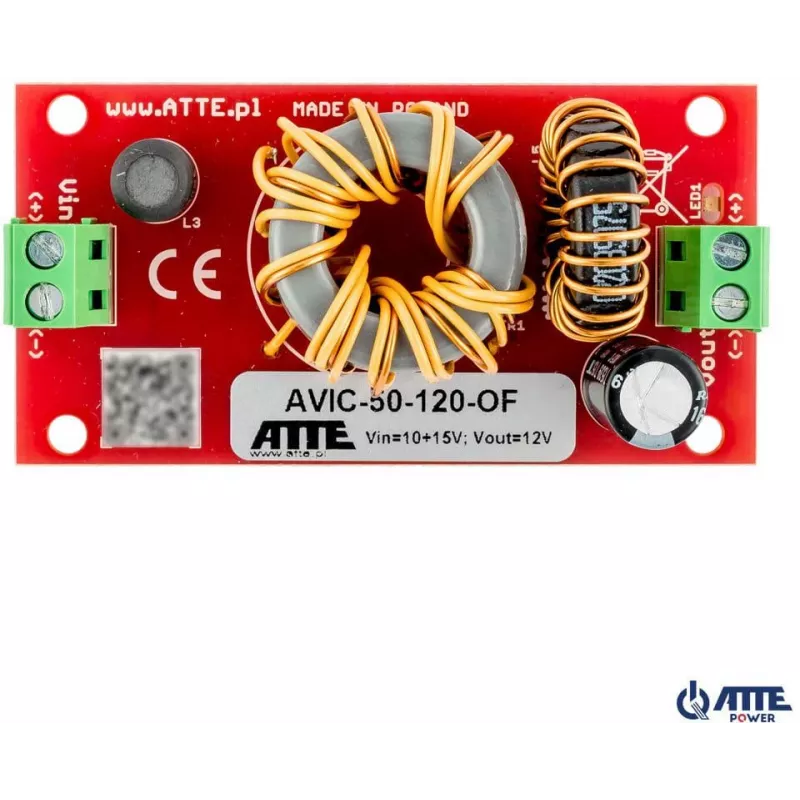

ATTE convertidor DC/DC AVIC-50-120-OF 10-15V 50W 4A

The ATTE AVIC-50-120-OF is a DC/DC converter module designed for built-in installation. It accepts an input voltage of 10 to 15 VDC and provides a regulated 12 VDC output with a maximum current of 4 A and a power output of 50 W.

Key features

• Input voltage: 10 ... 15 VDC
• Output voltage: 12 VDC ±2%
• Output current: 4 A
• Output power: 50 W
• Isolation: 2 kV
• No-load current: 14 mA
• Short-circuit protection at 6 A output
• Operating temperature range: -25°C ... +50°C
• Housing design: module for built-in installation
• Mounting: snap-in spacer bolts, mounting holes at 10.8 mm pitch

Specifications

• Brand: ATTE
• MPN: AVIC-50-120-OF
• Dimensions (W x H x D): 39 x 76 x 35 mm
• EAN: 5902143690207
