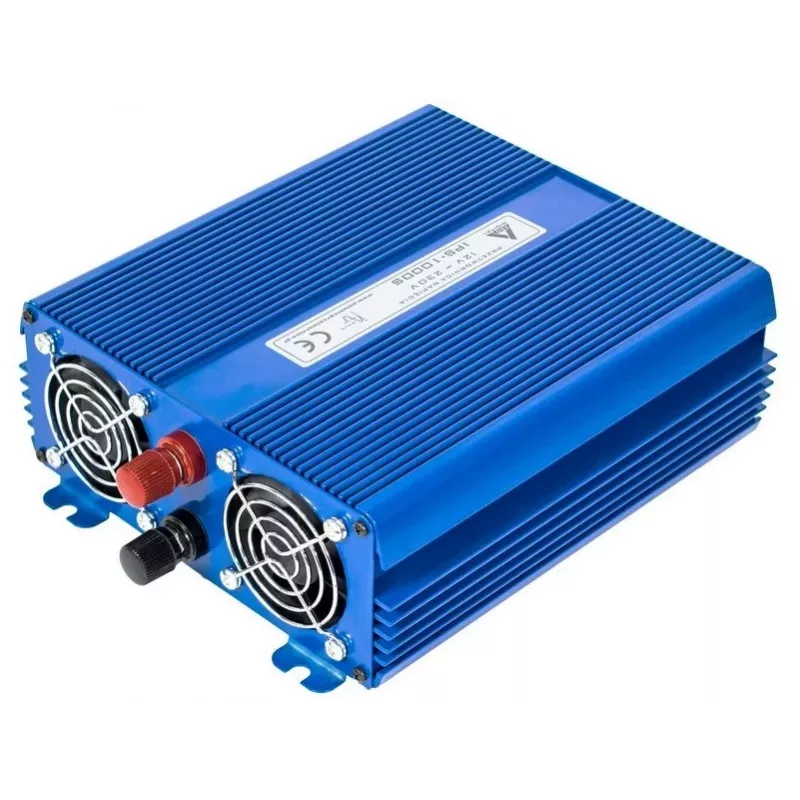

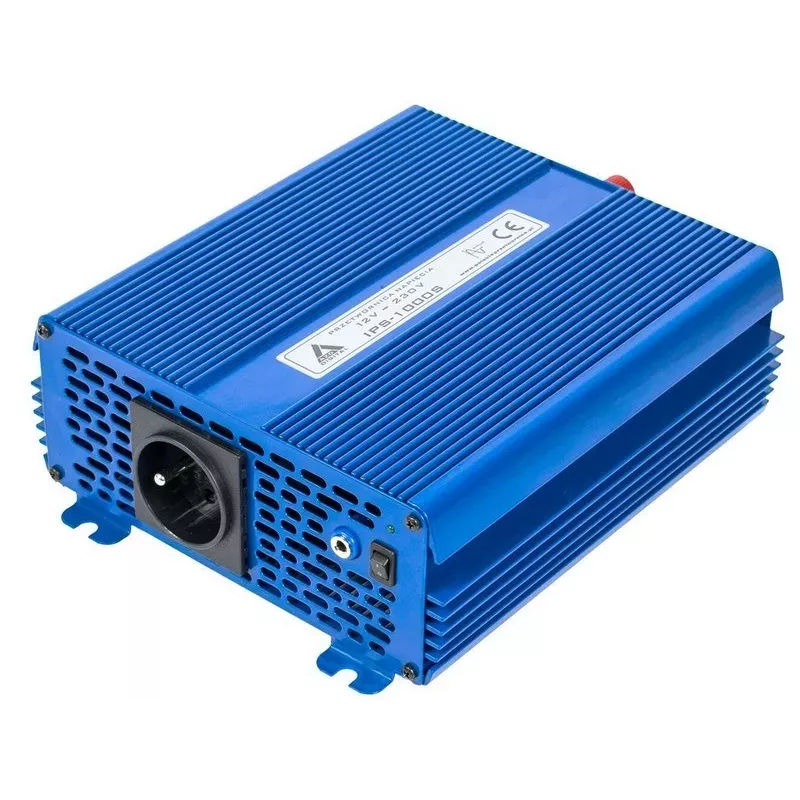

AZO Digital Inversor de onda senoidal pura IPS-1000S 1000W 12V DC a 230V AC con modo ECO

The AZO Digital IPS-1000S is a high-performance pure sine wave power inverter that converts 12V DC battery power to 230V AC, delivering 1000W continuous output (2000W peak). Designed for reliability and efficiency, it features an intelligent ECO mode that reduces no-load current consumption to less than 0.5A, making it ideal for off-grid, mobile, and backup power applications. With comprehensive protection circuits and a thermostatically controlled fan, this inverter ensures safe and stable operation in demanding environments.

Advantages

Pure sine wave output ensures compatibility with sensitive electronics such as laptops, medical devices, and audio equipment. ECO mode significantly extends battery life by minimizing standby power draw. Compact design with a built-in Schuko socket for easy connection. Multiple protection features safeguard both the inverter and connected devices.

Suitable for

• Caravans, motorhomes, and boats
• Off-grid solar power systems
• Emergency backup power at home or office
• Mobile workstations and field equipment

Key specifications

• Input Voltage: 12V DC (10.5V - 15.5V range)
• Output Voltage: 230V AC
• Continuous Power: 1000W
• Peak Power (Surge): 2000W
• Output Waveform: Pure Sine Wave
• Output Frequency: 50 Hz
• Efficiency: >90%
• No-load Current: <0.5A (ECO mode)
• Low Battery Alarm: 10.5V ±0.3V
• Low Battery Shutdown: 10.0V ±0.3V
• Protections: Overload, Short Circuit, Over Temperature, Over Voltage (>15.5V)
• Cooling: Thermostatically controlled fan
• Output Socket: 1x Schuko (Type F)
• THD: <3%
• Operating Temperature: -10°C to +50°C

Recommendations

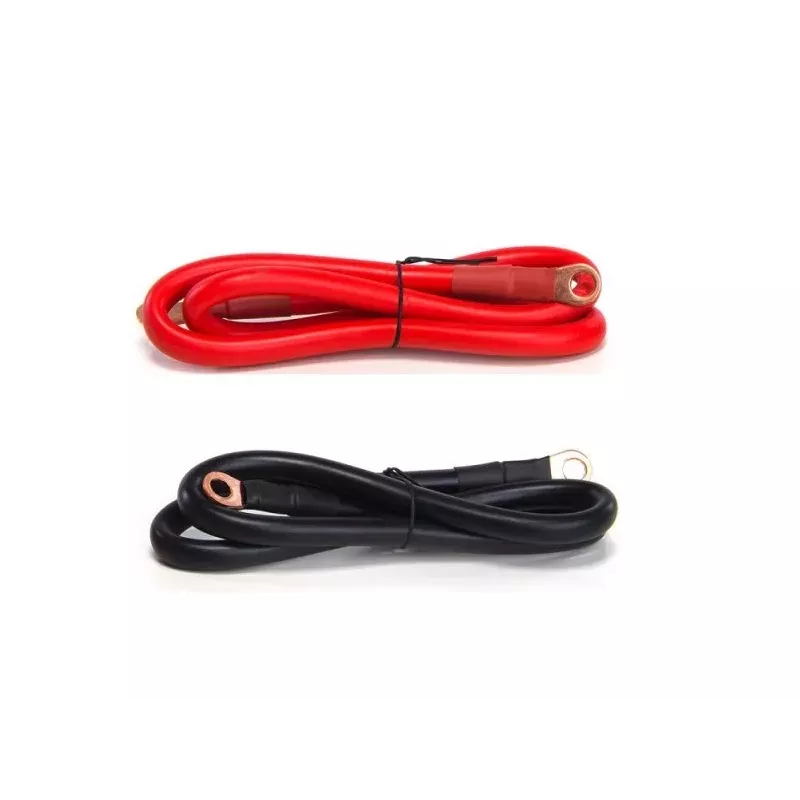

For optimal performance, connect the inverter directly to a deep-cycle battery using appropriate gauge cables (not included). Ensure adequate ventilation around the unit. ECO mode is recommended for standby applications; disable for continuous high-load use.
